Detail Information

Density:	10-48kg/m3	Type:	Other Heat Insulation Materials,Blanket,Glass Wool
Color:	It Is Usually Yellow, But Other Colors Can Also Be Customized	Thickness:	25mm-200mm
Length:	5-30m	Application:	Train Compartment
Material:	Glasswool	Width:	0.6-1.2m
Product Name:	High Quality Wall Or Roof Thermal Insulation Glass Wool Blanket	Grade Of Combustibility:	Non-combustible Grade A1,Non-combustible Grade A
Feature:	Nonflammable,waterproof,Heat Insulation,damp Proof,Insulating/Fireproofing/Sound Absorbing	Thermal Conductivity:	0.031-0.042W/m.k
Package:	Vacuum Plastic Bag+woven Bag	Function:	Water Proof,Thermal Preservation
Size:	120060050mm,1200600100mm (47.223.73.94 In)	Hydrophobicity:	≥98.2%
Highlight:	wall thermal insulation glass wool , roof insulation glass wool blanket , thermal insulation mineral wool blanket

Product Description

Product Introduction Of The Glass Wool Blanket Insulation

FANRYN centrifugal glass wool blanket Insulation are made for large laying area. Beside the character of thermal insulation, it also has the performances of shock absorption and acoustical isolation,especially for middle or low frequency sound, which can cancel the noise and improve working environment.

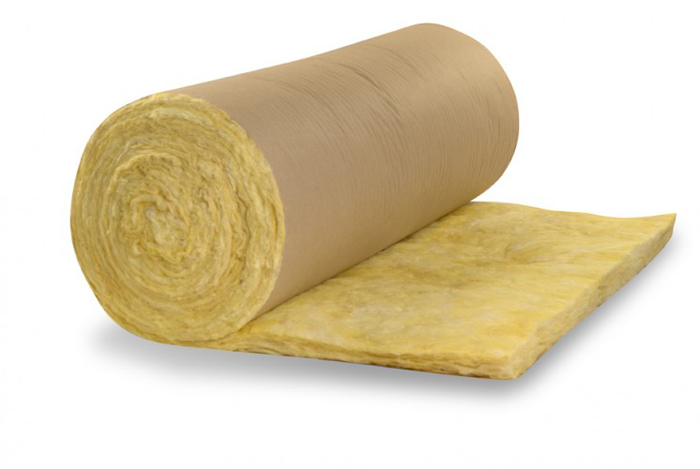

High quality Wall or roof thermal Insulation glass wool blanket 0

Product Parameter Of The Glass Wool Blanket Insulation

Technical Data
Item	Unit	Index	Standard
Density	kg/m³	10-48	GB/T 5480.3
Average fiber dia	μm	5.5	GB/T 5480.4-1985
Water content	%	≤ 1	GB/T 3007-1982
Grade of combustibility		Non-combustible Grade A	GB 8624-1997
Preshrinking temp	℃	≥250	GB/T 11835-1998
Thermal conductibility	w/m·k	0.031-0.042	GB/T 10294-1988
Hydrophobicity	%	≥ 98.2	GB/T 10299-1988
Moisture rate	%	≤ 5	GB/T 16401-1986
Sound absorption coefficient		1.03 product reverberation method 24kg/m³2000HZ	GBJ 47-83
Slag inclusion content	%	≤ 0.3

Product Size Of The Glass Wool Blanket Insulation

Density(kg/m³)	Thickness(m)	Length (m)	Width (m)	Rolls/packing
10-48	0.025-0.2	5-30	0.6	2 rolls
10-48	0.025-0.2	5-30	1.1	1 roll	2 rolls overlapping
10-48	0.025-0.2	5-30	1.15	1 roll	2 rolls overlapping
10-48	0.025-0.2	5-30	1.2	1 roll	2 rolls overlapping
10-48	0.025-0.2	5-30	1.25	1 roll	2 rolls overlapping

Product Feature And Application Of The Glass Wool Blanket Insulation

1.Wall Insulation – Enhances thermal efficiency in residential and commercial buildings, reducing heating/cooling costs.

2.Steel Structure Insulation – Provides effective thermal protection for warehouses, factories, and prefabricated buildings.

3.Indoor Partition Walls – Improves soundproofing between rooms in offices, hotels, and apartments.

4.Train & Vehicle Compartments – Ensures temperature stability and noise reduction in railway carriages, buses, and RVs.

5.Acoustic Panels & Ceilings – Used in theaters, studios, and industrial facilities for superior noise control.

6.HVAC & Duct Insulation – Prevents heat loss and condensation in ventilation system

High quality Wall or roof thermal Insulation glass wool blanket 2

High quality Wall or roof thermal Insulation glass wool blanket 5

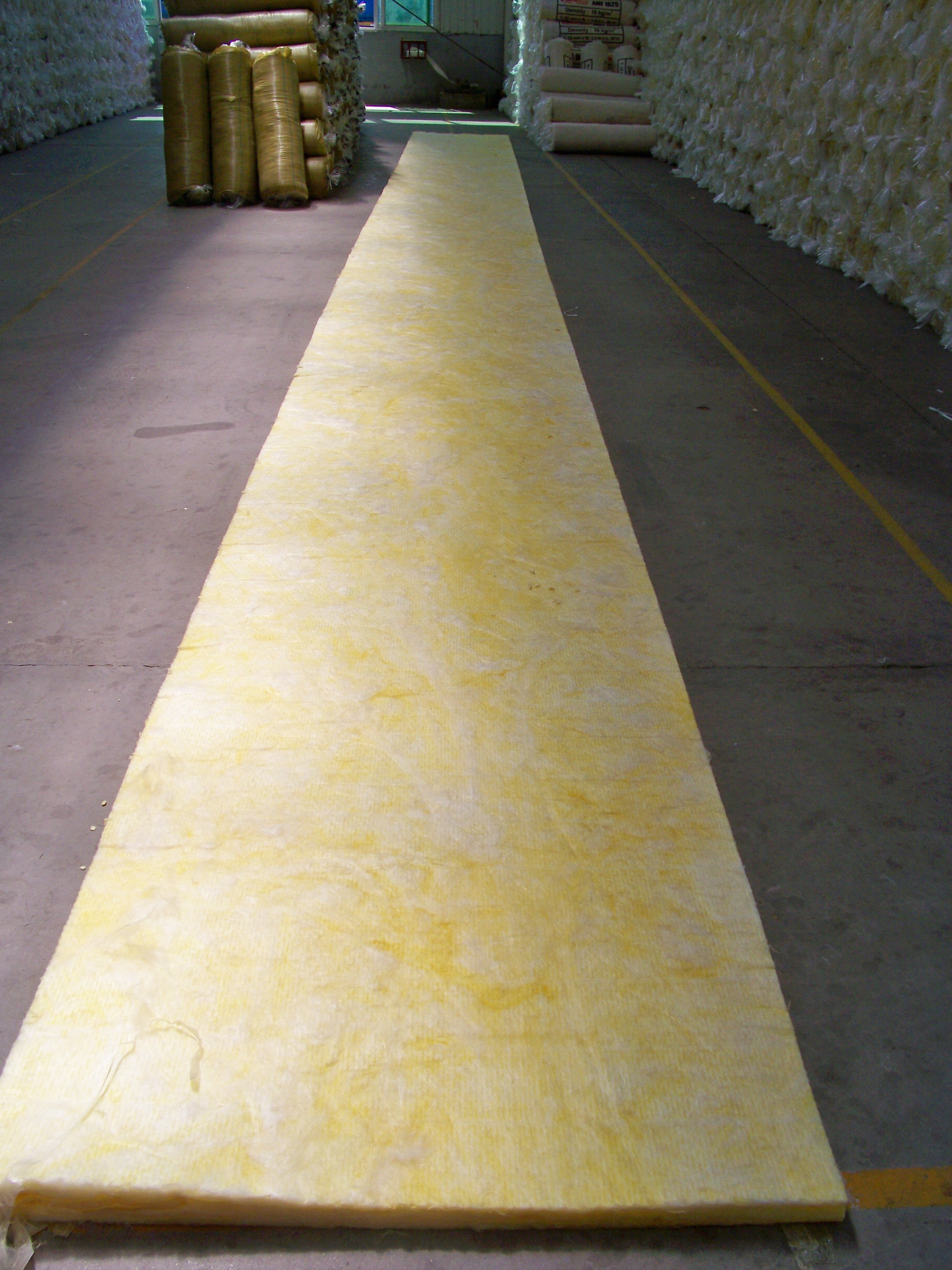

Production Details Of The Glass Wool Blanket Insulation

High quality Wall or roof thermal Insulation glass wool blanket 8

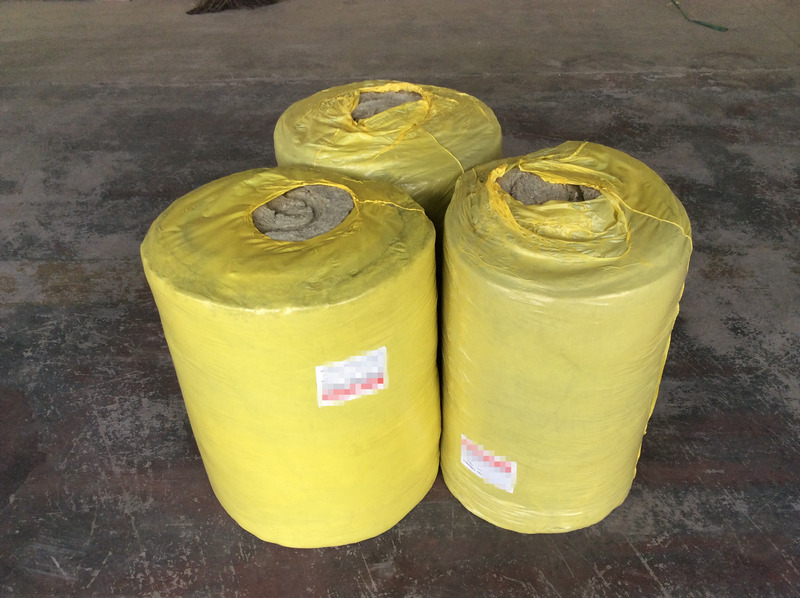

Product Packing Of The Glass Wool Blanket Insulation

1.Vacuum plastic bag+woven bag

2.Vacuum plastic bag+PE bag

3.Vacuum plastic bag+PE shrinking bag

4.PE shrinking bag

High quality Wall or roof thermal Insulation glass wool blanket 11

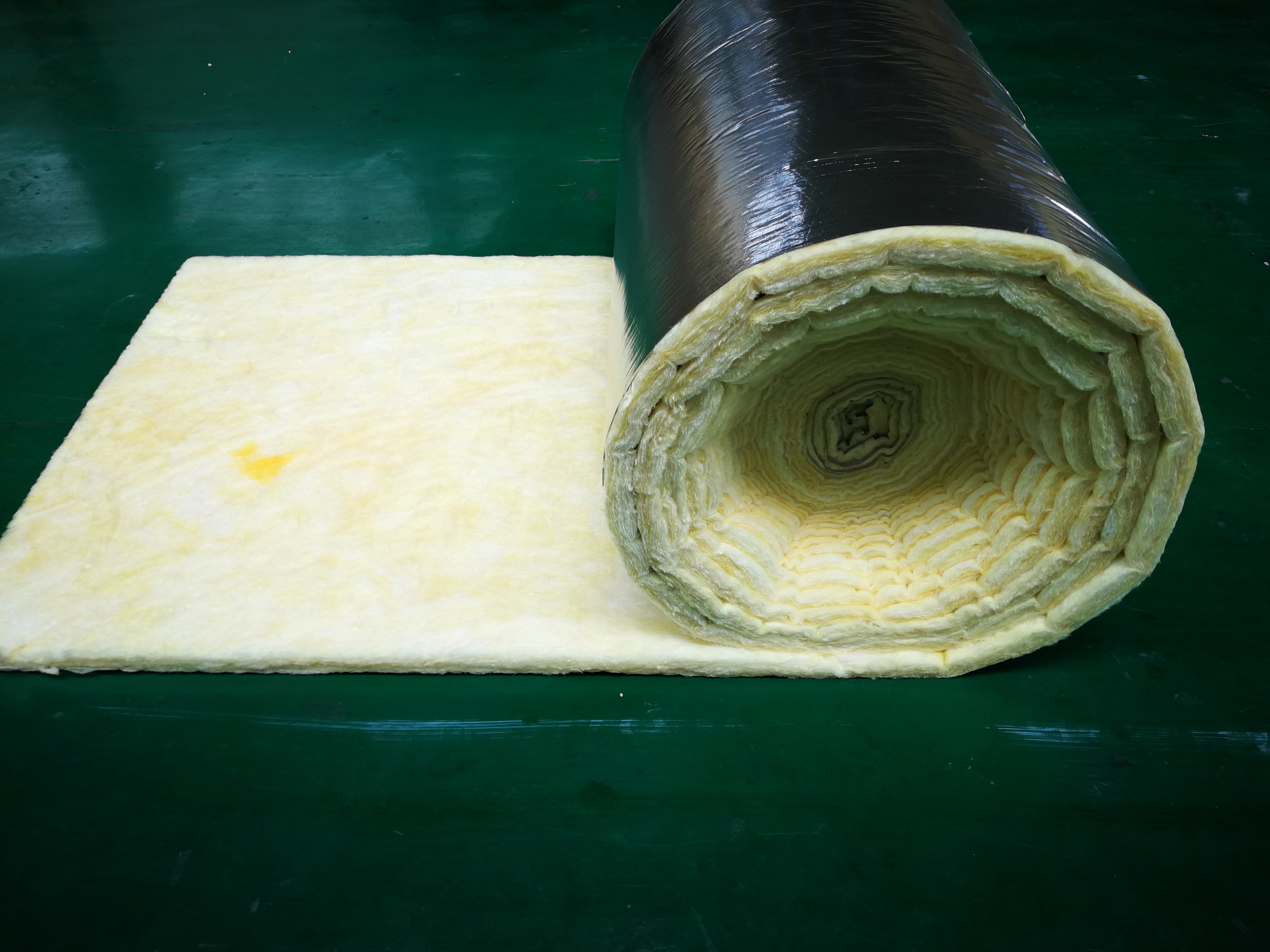

Production Facing Of The Glass Wool Blanket Insulation

1.Foil-Scrim-Kraft Facing

2.Alum Glass Cloth Facing

3.Fiberglass Tissue

High quality Wall or roof thermal Insulation glass wool blanket 14

FAQ:

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process

Q2: How to pack exported goods?

A2: Vacuum plastic bag + woven bag(Standard Export Packing).

Q3: what is your lead time for one 40HC container order?

A3: Usual 7-10 work days after placing order

Q4: What is your advantage on glass wool blanket?

A4: Our glass wool blanket can be freely cut in construction according the shape required.

Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.

Tag:

Place of Origin:	China
Brand Name:	fanryn
Certification:	GB/T 17794-2008
Model Number:	glasswool

Minimum Order Quantity:	1*40HQ
Price:	1-10$
Packaging Details:	vacuum bag+woven bag
Delivery Time:	7-10 days
Payment Terms:	T/T
Supply Ability:	We can finish the production of 1*40HQ in about 7-10 days
