Detail Information

Fire Resistance:	Class A	Moisture Resistance:	High
Thickness:	25mm - 200mm	Chemical Resistance:	High
Thermal Conductivity:	0.031-0.042 W/mK	Density:	10-48 Kg/m3
Eco-Friendly:	Yes	Material:	Glasswool
Sound Absorption:	High	Insulation Type:	Thermal Insulation
Durability:	High	Application:	Roofs, Walls, Floors
Highlight:	aluminum foil fiberglass insulation roll , thermal acoustic blanket for HVAC , pipe wrap glass wool blanket

Product Description

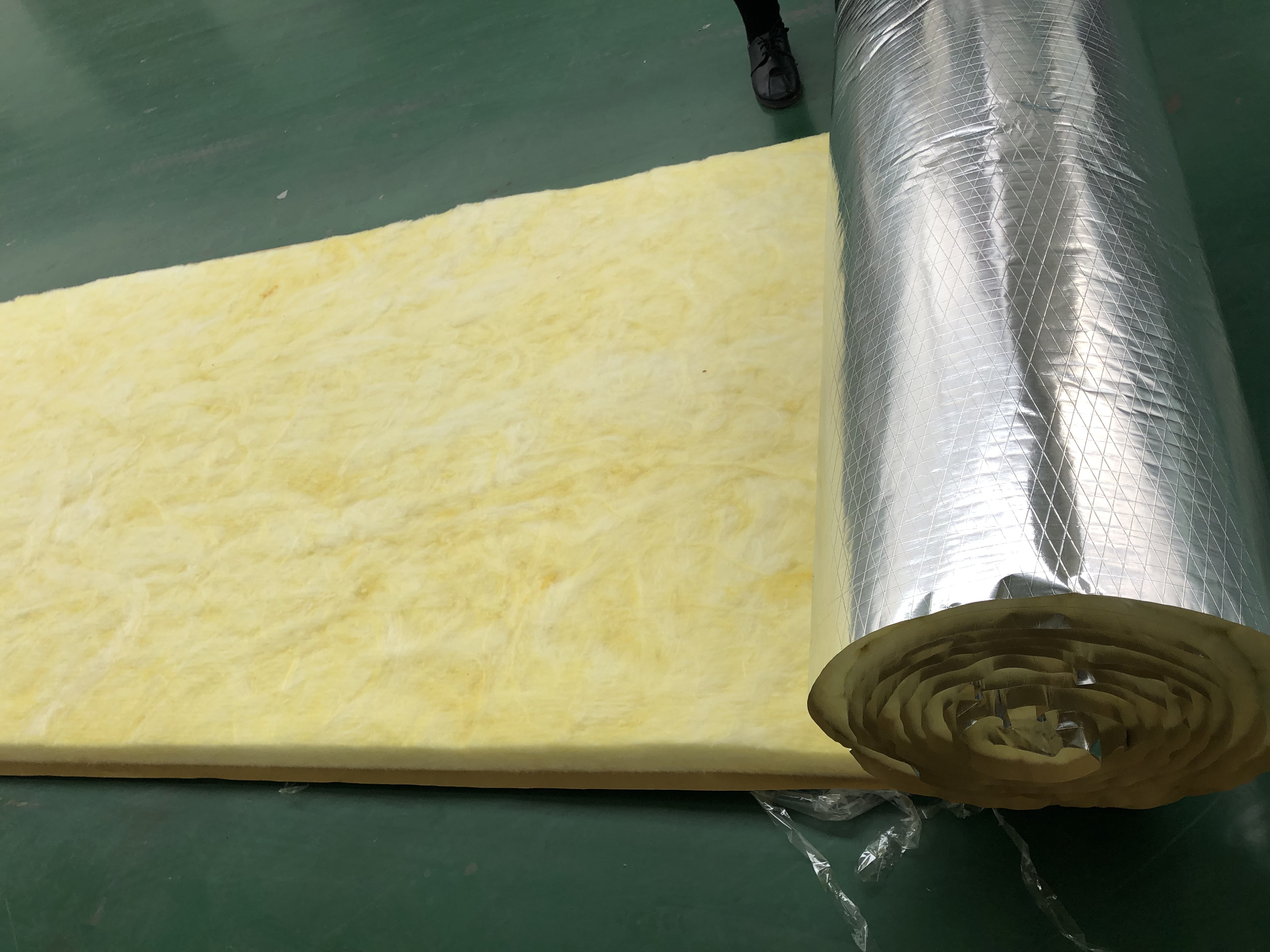

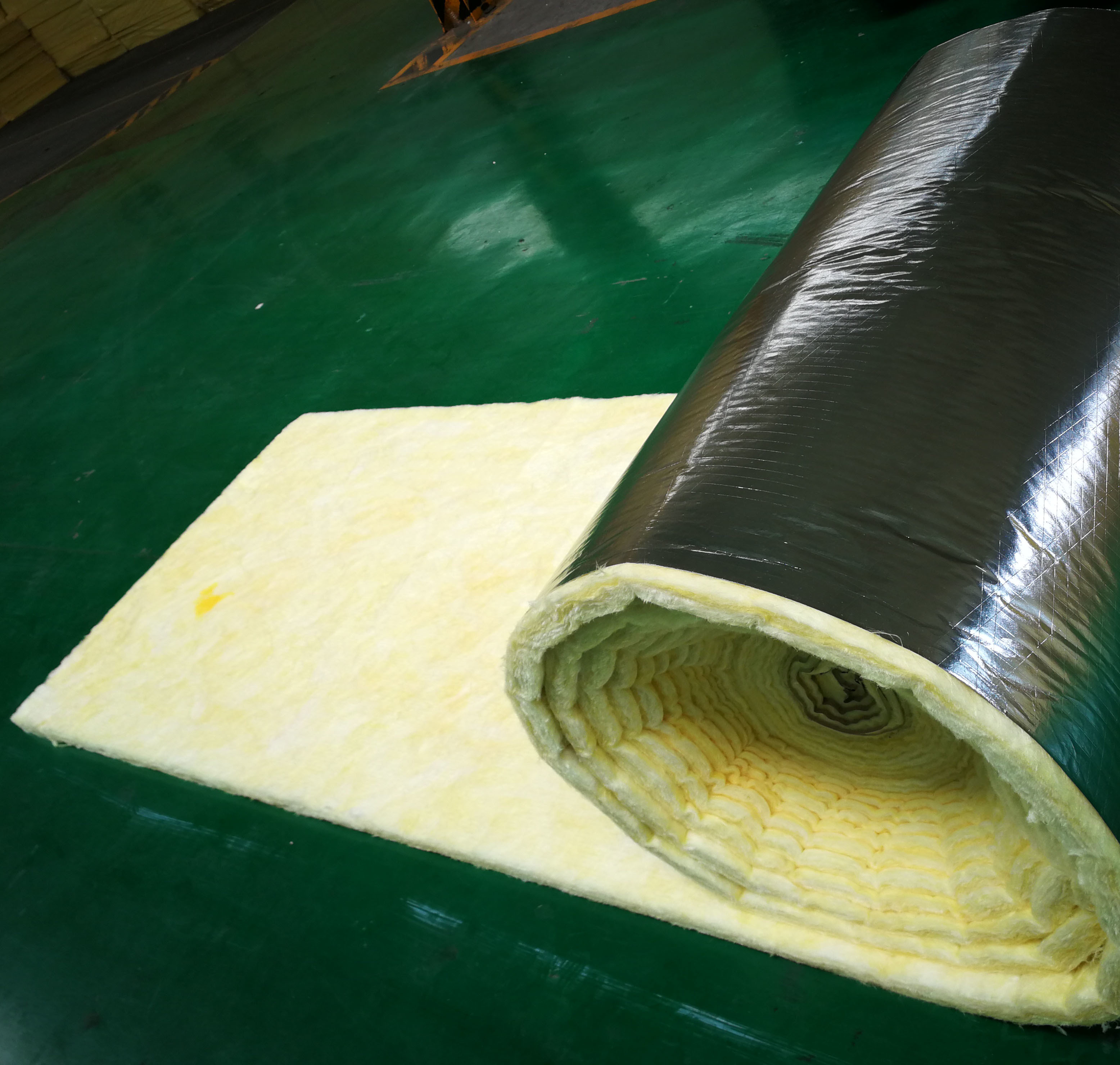

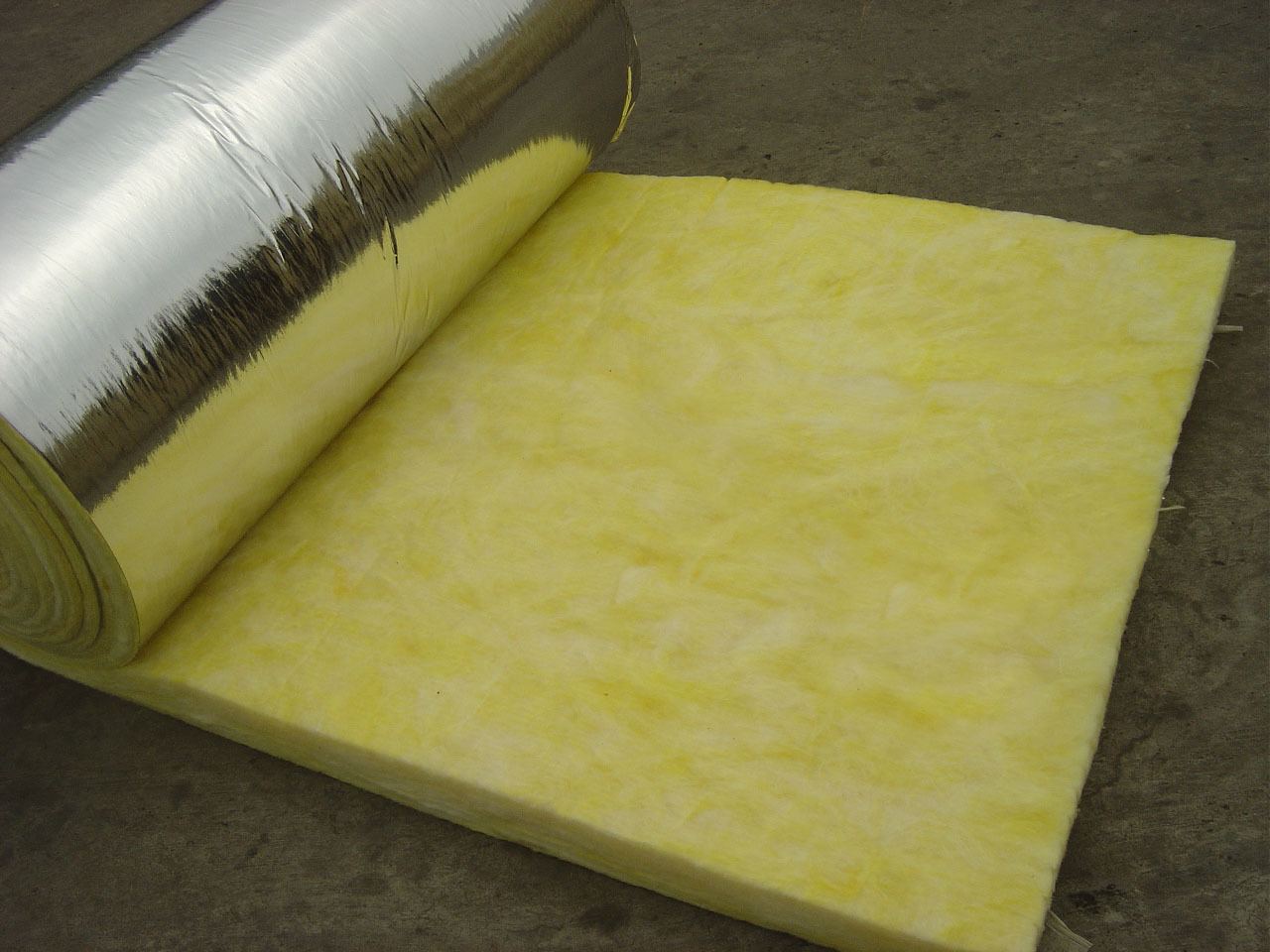

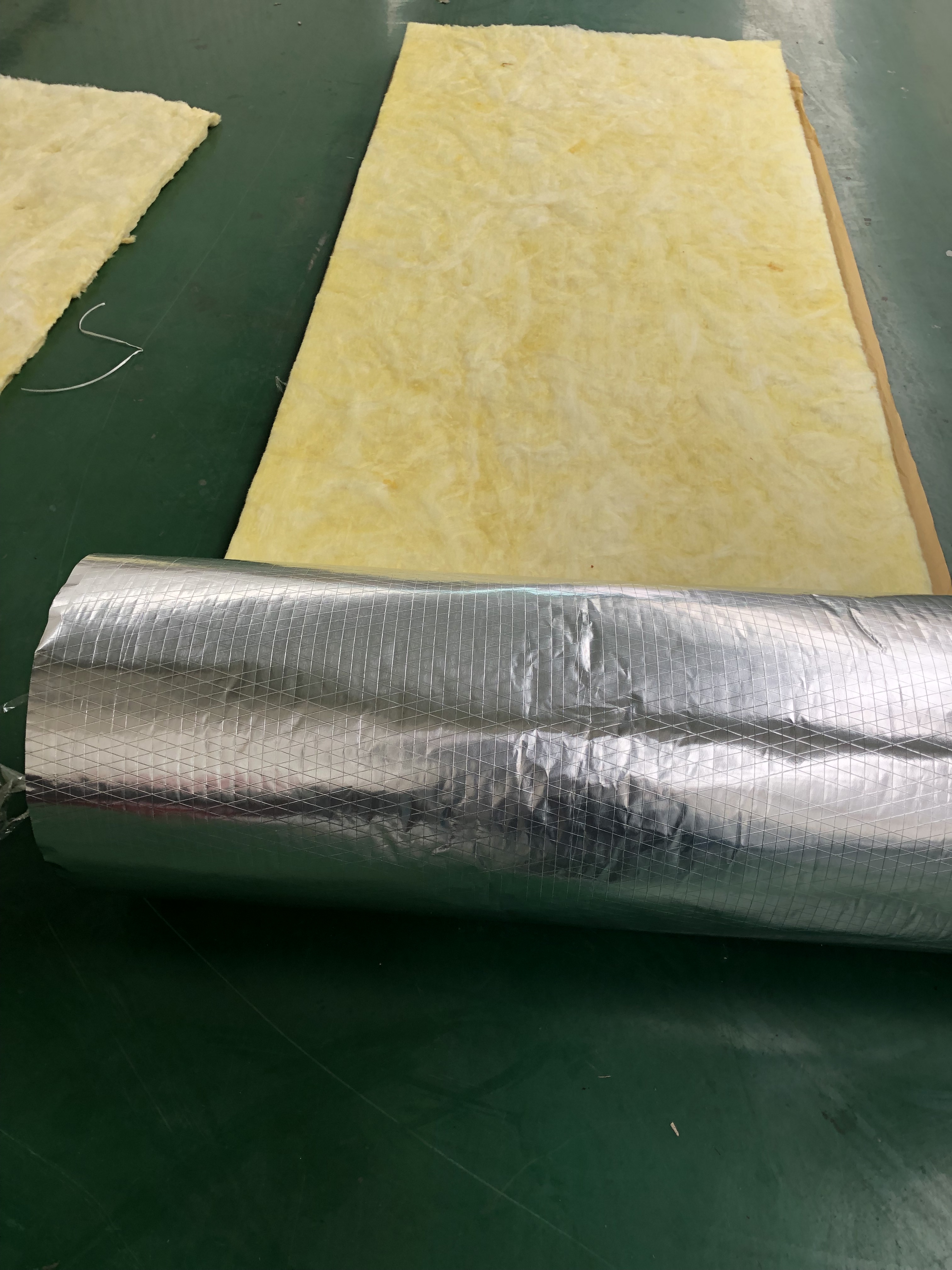

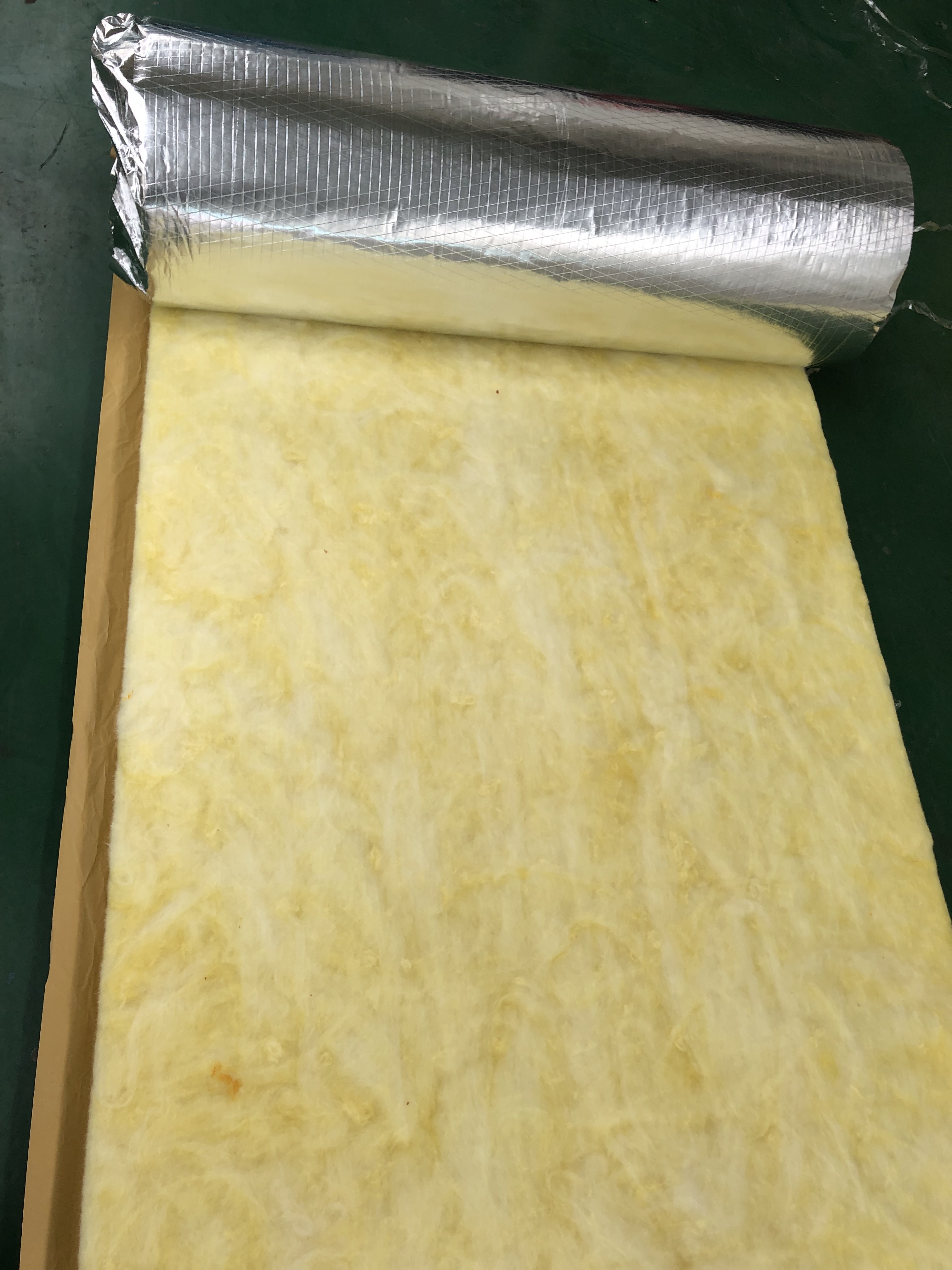

Aluminum Foil Faced Fiberglass Insulation Roll

Thermal Acoustic Blanket for HVAC and Pipe Wrap

FANRYN centrifugal glass wool blanket insulation is engineered for large-area installation. In addition to excellent thermal insulation properties, it also offers effective shock absorption and acoustic isolation, particularly for mid-to-low frequency noise, helping to reduce sound transmission and improve the working environment. The product is available with an optional aluminum foil facing, which enhances moisture resistance, corrosion protection, and thermal reflectivity, thereby increasing overall durability and energy efficiency. It is ideal for applications where hygiene or high humidity conditions are a concern.

Product Specifications

Density (kg/m³)	Thickness (m)	Length (m)	Width (m)	Rolls/Packing
10-48	0.025-0.2	5-30	0.6	2 rolls
10-48	0.025-0.2	5-30	1.1	1 roll \| 2 rolls overlapping
10-48	0.025-0.2	5-30	1.15	1 roll \| 2 rolls overlapping
10-48	0.025-0.2	5-30	1.2	1 roll \| 2 rolls overlapping
10-48	0.025-0.2	5-30	1.25	1 roll \| 2 rolls overlapping

Technical Data

Item	Unit	Index	Standard
Density	kg/m³	10-48	GB/T 5480.3
Average fiber diameter	μm	5-8	GB/T 5480.4
Water content	%	≤ 1	GB/T 16400-2003
Grade of combustibility		Non-combustible Grade A	GB 8624-1997
Reshrinking temperature	℃	250-400	GB/T 11835-2007
Thermal conductivity	w/m·k	0.034-0.06	GB/T 10294
Hydrophobicity	%	≥ 98	GB/T 10299
Moisture rate	%	≤ 5	GB/T 5480.7

Main Applications

Wall Insulation: Used as thermal insulation layer for building exterior or interior walls, effectively reducing heat loss and improving energy efficiency.
Steel Structure Insulation: Ideal for insulating steel roofs and walls, providing both thermal and acoustic benefits while resisting moisture and corrosion.
Indoor Partition Walls: Enhances acoustic and thermal performance of interior walls, creating quieter and more comfortable living or working spaces.
Train Compartments: Provides lightweight thermal and acoustic insulation in railway vehicles, contributing to passenger comfort and energy savings.
Sound Absorption and Acoustical Isolation: Widely used in studios, cinemas, and machinery rooms to reduce noise transmission and improve acoustic environments.
HVAC Duct Insulation: Wraps around ventilation ducts to prevent heat loss/gain and control condensation while reducing system noise.

Quality Standards

According to GB STANDARDS, EN13162, EN13172, ISO9001:2000

Product Advantages

Excellent Resilience: Rapidly recovers to original thickness within 24 hours after opening vacuum-sealed packaging, ensuring consistent performance and ease of installation.
Uniform Thickness and Color: Outstanding consistency in both thickness and color, providing a neat and professional appearance for various applications.
Superior Dimensional Stability: Excellent shape retention capabilities maintain structural integrity over time, even under changing environmental conditions.
Reduced Fiber Irritation: Composed of soft, long glass fibers with advanced bonding technology, significantly minimizing fiber shedding and flying debris during handling and installation.

Product Details

Packaging Options

Vacuum plastic bag + woven bag
Vacuum plastic bag + woven bag + PE bag
Vacuum plastic bag + PE shrinking bag
PE shrinking bag

Product Gallery

Frequently Asked Questions

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process.

Q2: How to pack exported goods?

A2: Our standard package is Vacuum plastic bag + woven bag (Standard Export Packing).

Q3: What is your lead time for one 40HC container order?

A3: Usually 7-10 work days after placing order.

Q4: What is your advantage on glass wool blanket?

A4: Our glass wool blanket can be freely cut in construction according the shape required.

Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.

Tag:

Place of Origin:	China
Brand Name:	fanryn
Certification:	ASTM E84
Model Number:	glasswool blanket

Minimum Order Quantity:	1*40HQ
Price:	0.1-6$
Packaging Details:	Vaacuum plastic bag+woven bag
Delivery Time:	7-10 days
Payment Terms:	T/T
Supply Ability:	10000 square meters
