Product Information
FANRYN rock wool pipe insulation is produced using premium natural basalt and limestone as primary raw materials. These components are melted in a high-temperature cupola furnace at over 1450 ℃ to form molten lava, which is subsequently fiberized via advanced centrifugal spinning technology. The resulting mineral fibers are efficiently bonded with a thermosetting resin, creating a robust and heat-resistant structure. The final product is accurately cut into standardized sizes for quick, straightforward handling and installation across various industrial and building.
Product parameter of the bare rock wool pipe
|
Technical Data
|
|
Properties
|
Specifications
|
Standards
|
|
Density Tolerance
|
±15%
|
GB/T 19686-2005
|
|
Fire Performance
|
Non-Combustible
|
GB/T 5464-1999
|
|
Reaction to fire Class A1
|
GB/T 8624-2006
|
|
Thermal Conductivity(W/mK, at70±5℃)
|
≤0.044
|
GB/T 10295
|
|
Fiber Diameter
|
7(+/-1)um
|
GB/T 5480. 4
|
|
Shot Content(shot size>0.25mm)
|
≤12%
|
-
|
|
Eccentricity of Pipe shell
|
≤5mm
|
-
|
|
Thickness (mm)
|
25-150
|
|
DIA
|
1/2 inch---24 inch (22mm--610mm)
|
Main application of the bare rock wool pipe:
-Power Plants: Used in boiler systems, steam lines, and exhaust ducts.
-Oil Depots & Refineries: Insulates fuel pipelines, storage tanks, and process piping.
-Petrochemical Plants: Protects pipelines carrying chemicals, gases, and high-temperature fluids.
-Shipbuilding & HVAC: Provides insulation and fire safety in marine engine rooms and commercial building services.
Advantage of the rock wool pipe:
1.Thermal Insulation
Effectively reduces heat transfer in pipelines, maintaining consistent temperatures in both high and low-temperature systems, thereby improving energy efficiency and operational stability.
2.Fire Safety
Class A1 fire-rated material offers reliable passive fire protection. It does not contribute to fire spread, smoke, or toxic fumes, enhancing safety in high-risk environments.
3.Acoustic Control
The dense fibrous structure absorbs sound and dampens vibration, reducing noise from fluid transport, mechanical operations, and industrial processes.
4.Corrosion Resistance
Minimizes risk of Corrosion Under Insulation (CUI) by limiting condensation on metal surfaces through stable thermal performance, extending service life of pipelines.
5.Environmental Sustainability
Manufactured from abundant natural minerals like basalt and recycled content. Free of CFCs, HCFCs, and other ozone-depleting substances, supporting green building initiatives.
6.Moisture Resistance
Hydrophobic properties prevent water absorption, ensuring long-term insulation performance and material integrity even in humid or outdoor conditions.
7.Energy Conservation & Emissions Reduction
Sign lowers heat loss in heating/cooling systems, directly reducing fuel consumption and CO2 emissions. Supports compliance with energy efficiency standards and sustainability goals.

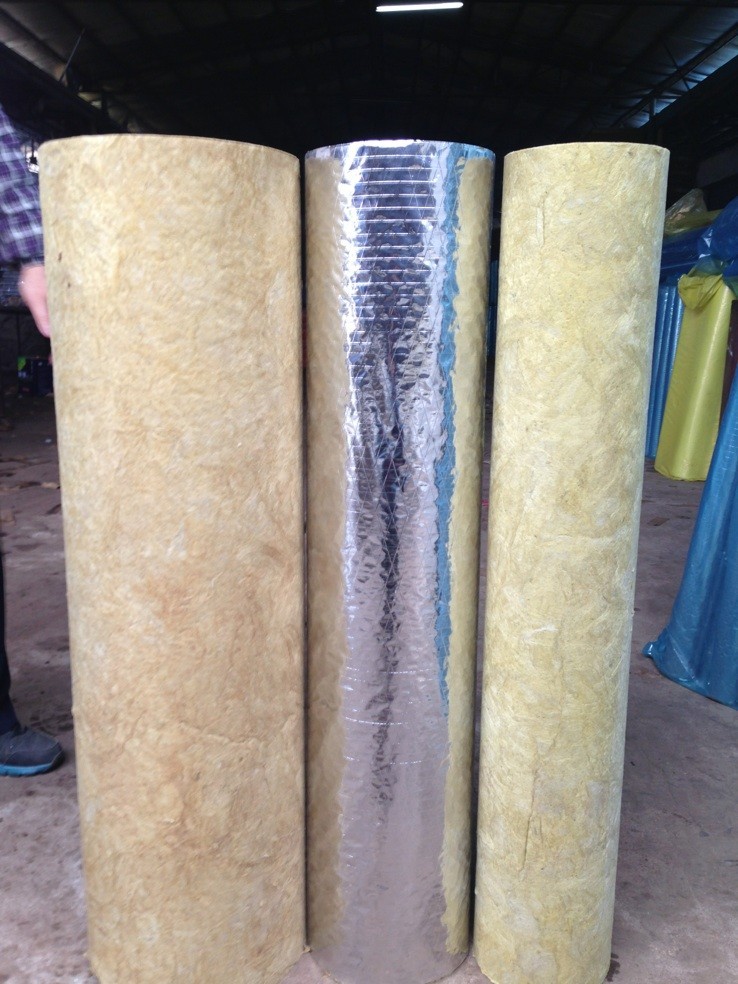

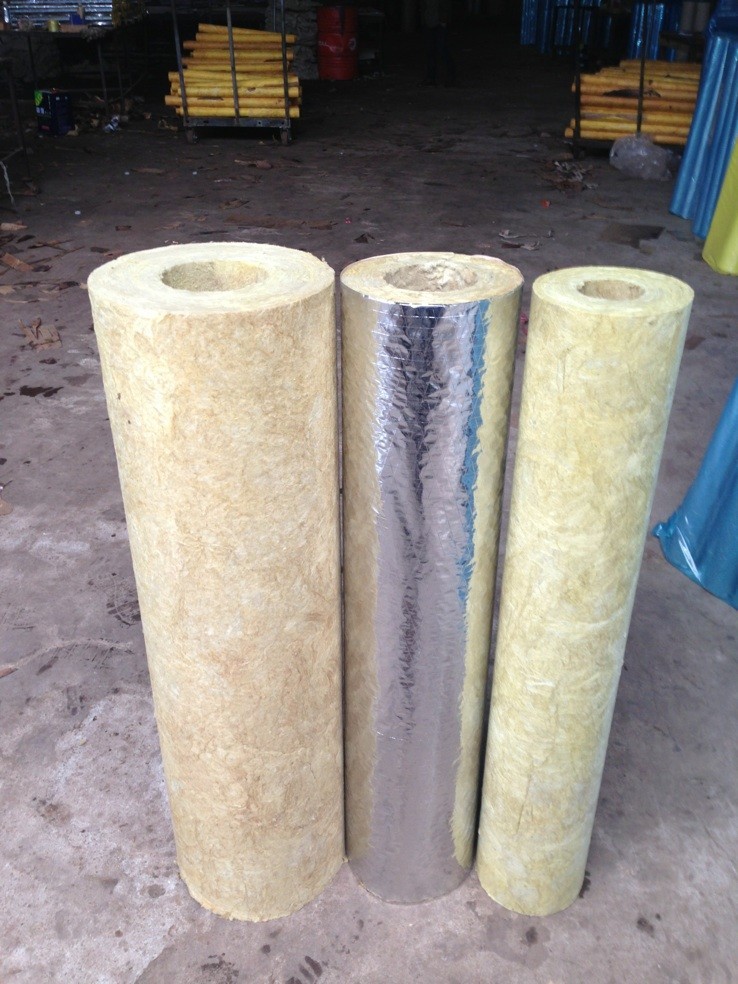

Product Detail:
Packing:
If you are interested in our products,please { click here }to see all the products
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Our standard package is Vacuum plastic bag +woven bag (Standard Export Packing).
Q3: What is your lead time for one 40HC container order?
A3: Usual 7-10 work days after placing order.
Q4: What is your advantage on glass wool blanket?
A4: Our glass wool blanket can be freely cut in construction according the shape required.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
