Detail Information

Water Content:	1%	Average Fiber Diameter:	<8.0μm
Moisture Resistance:	Non-absorbent	Installation Method:	Laying Or Hanging
Usage:	Roof	Material:	Glass Wool
Thermal Resistance:	4.5 (Hr⋅Ft²⋅F/Btu)	Working Temperature:	500℃
Color:	Yellow	Advantage:	Grade A1 Incombustible Materials
Surface:	Aluminum Foil	Thermal Conductivity:	0.034 W/mK
Incombustibility:	Qualified (Grade A)	Hydrophobic:	>98%
Certifications:	CE, ISO, SGS

Product Description

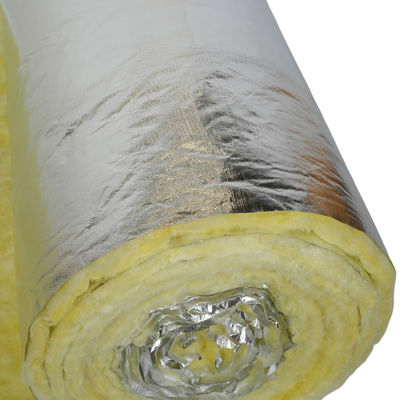

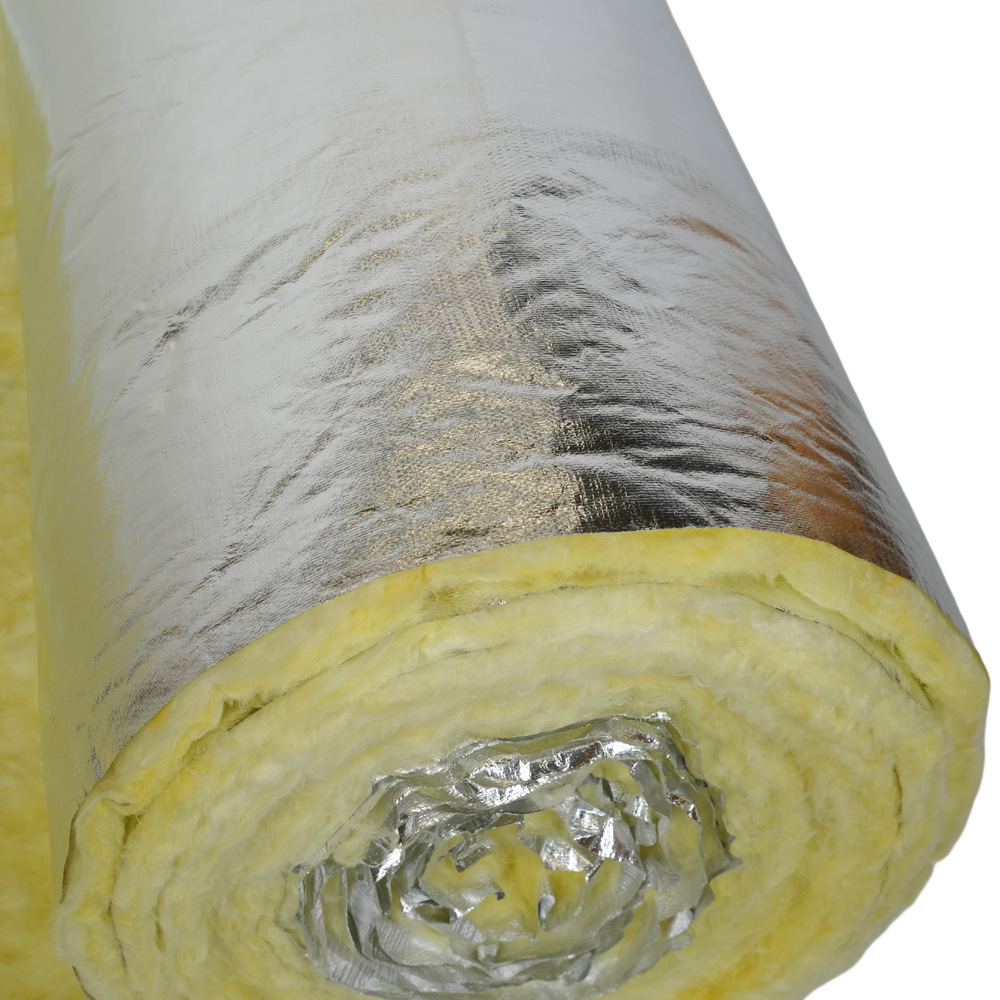

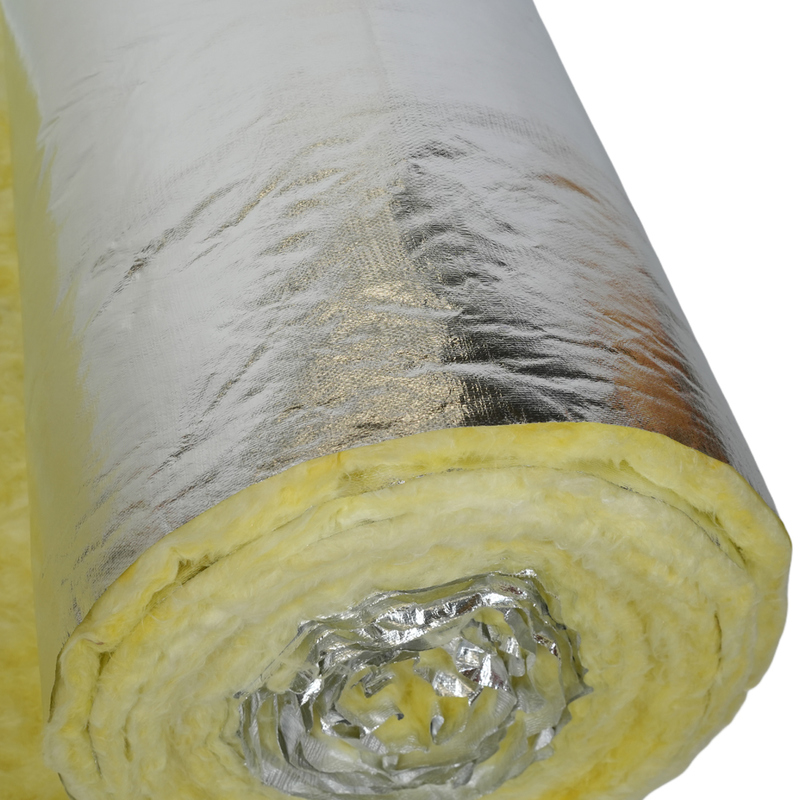

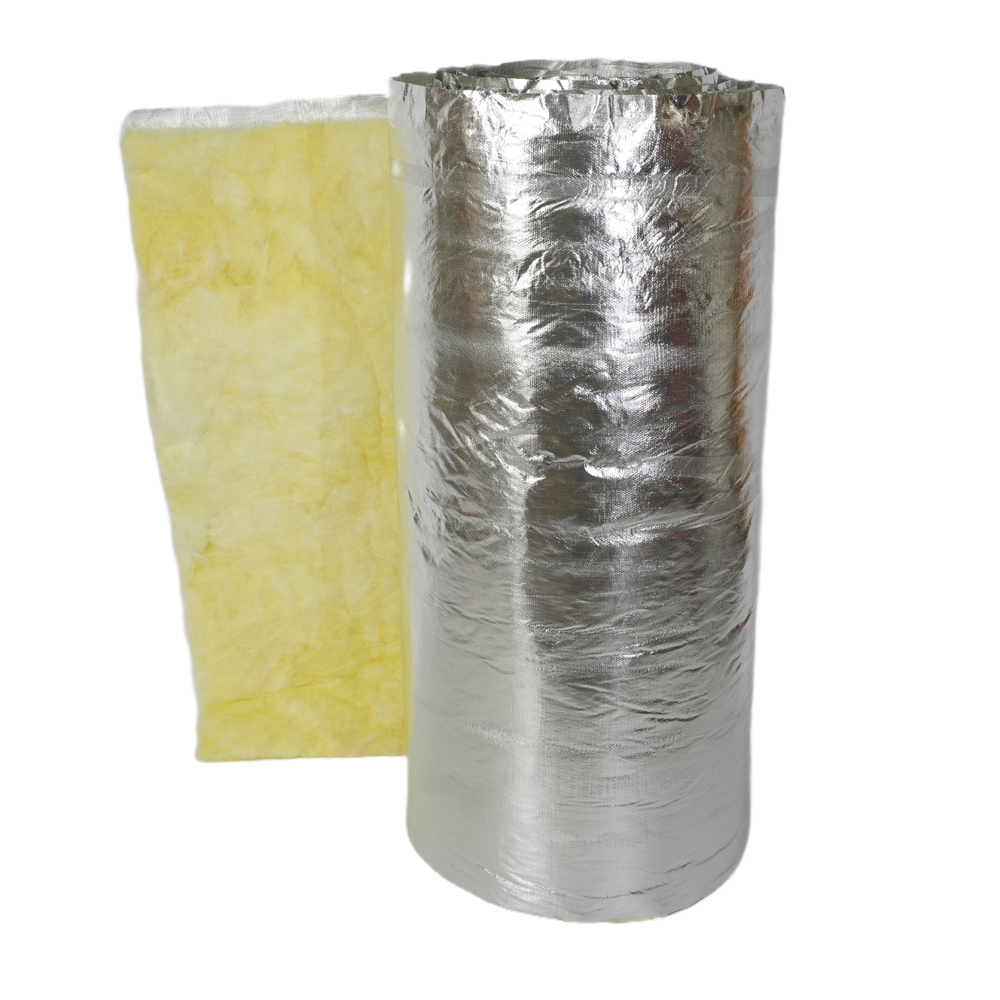

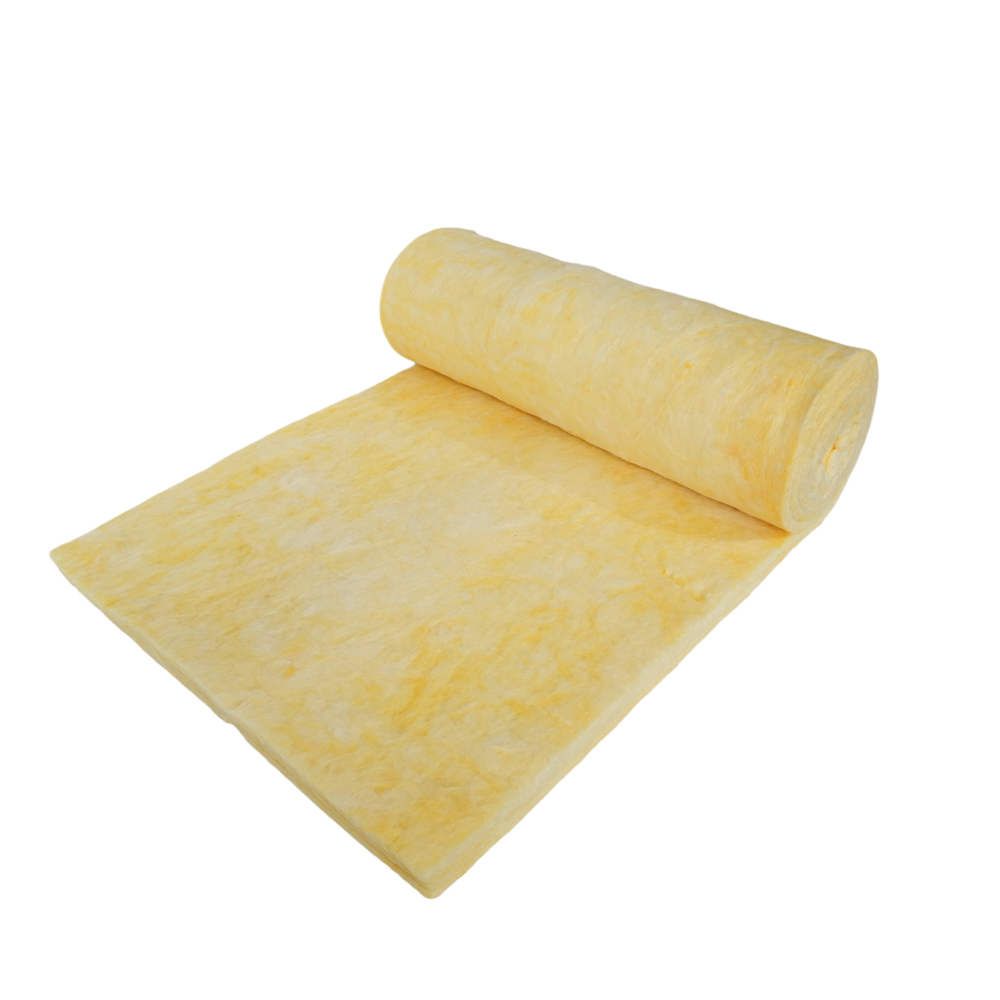

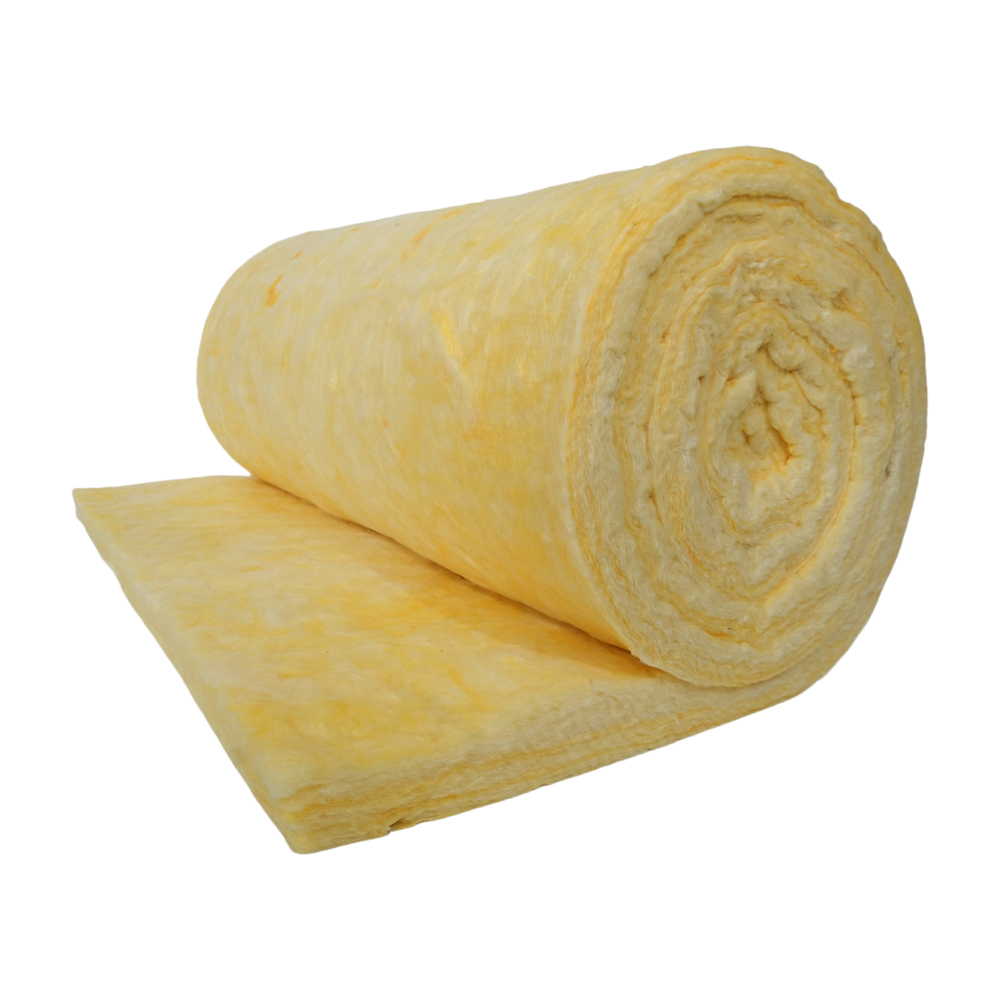

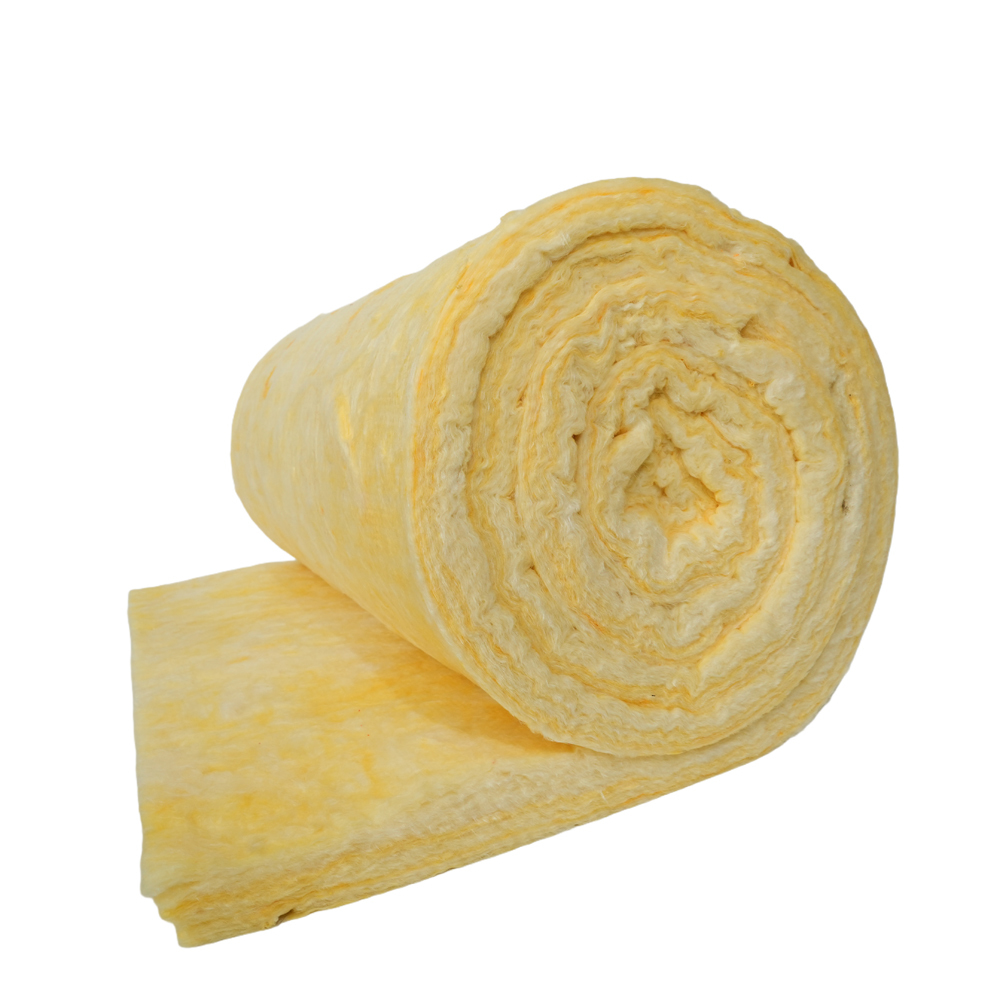

Product introduction of the Glass Wool Blanket

Safety first. FANRYN Glass Wool Blankets are certified as Non-combustible Grade A (GB 8624-1997), providing critical fire protection for commercial and residential buildings. Combined with its excellent thermal and acoustic properties, it creates a safer, quieter, and more comfortable space. Our rigorous quality control in every production process ensures that every roll meets the highest standards of safety and performance, giving you complete peace of mind.

Non-Combustible Grade A Glass Wool | Safe & Certified Insulation Material 0

Product parameter of the glass wool blanket

Item	Unit	Index	Standard
Bulk density	kg/m³	10-48	GB/T 5480.3-1985
Average fiber dia.	µm	5.5	GB/T 5480.4-1985
Water content	%	≤1	GB/T 3007-1982
Grade of combustibility		Non-combustible Grade A	GB 8624-1997
Preshrinking temp	℃	≥250	GB/T 11835-1998
Thermal conductibility	w/m.k	0.031-0.043	GB/T 10294-1988
Hydrophobicity	%	≥98.2	GB/T 10299-1988
Moisture rate	%	≤5	GB/T 16401-1986
Sound absorption coefficient		1.03 product reverberation method 24kg/m³2000HZ	GBJ 47-83
Slag inclusion content	%	≤0.3

Density(kg/m3)	Thickness(m)	Thermal conductibility(W/m.k)	Thermal resisitance(m2.K/W)
10	0.05	0.043	1.163
10	0.1	0.043	2.326
12	0.05	0.042	1.190
12	0.1	0.042	2.381
14	0.05	0.041	1.220
14	0.1	0.041	2.439
16	0.05	0.039	1.282
16	0.1	0.039	2.564
20	0.025	0.038	0.658
20	0.05	0.038	1.316
24	0.025	0.036	0.694
24	0.05	0.036	1.389
32	0.025	0.034	0.735
32	0.05	0.034	1.471
48	0.025	0.033	0.758
48	0.05	0.033	1.515

Density(kg/m3)	Thickness(m)	Length (m)	Width (m)	Rolls/packing
10-48	0.025-0.2	5-30	0.6	2 rolls
10-48	0.025-0.2	5-30	1.1	1 roll	2 rolls overlapping
10-48	0.025-0.2	5-30	1.15	1 roll	2 rolls overlapping
10-48	0.025-0.2	5-30	1.2	1 roll	2 rolls overlapping
10-48	0.025-0.2	5-30	1.25	1 roll	2 rolls overlapping

Product application of the glass wool blanket

Heat preservation of wall
Heat preservation of steel structure
Indoor partition wall
Train compartment
Sound absorption and acoustical isolation

Product feature of the glass wool blanket

Steady thickness recovery, our glass wool blanket can be rebounded to its original thickness within 24 hours after opening the vacuum packing
Steady thickness and color uniformity;
Good dimensional stability,
Soft and long glass fiber, it can maximally lessen flying catkin in the construction

Production Facing For glass wool blanket

Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
Fiberglass Tissue

Non-Combustible Grade A Glass Wool | Safe & Certified Insulation Material 1

Production packing of the glass wool blanket

Vacuum plastic bag +woven bag
Vacuum plastic bag +woven bag +PE bag
Vacuum plastic bag+ PE shrinking bag
PE shrinking bag

Note: OEM is acceptable

Non-Combustible Grade A Glass Wool | Safe & Certified Insulation Material 2

FAQ:

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process

Q2: How to pack exported goods?

A2: Our standard package is Vacuum plastic bag +woven bag (Standard Export Packing).

Q3: What is your lead time for one 40HC container order?

A3: Usual 10-15 work days after placing order.

Q4: What is your advantage on glass wool blanket?

A4: Our glass wool blanket can be freely cut in construction according the shape required.

Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.

Tag:

Place of Origin:	CHINA
Brand Name:	FANRYN

Packaging Details:	Plastic bag
Delivery Time:	15 work days
Payment Terms:	T/T
