products

Rock Wool Blanket with Aluminum Foil Facing - Vapor Barrier & Reflective Insulation

Basic Information
Place of Origin: CHINA
Brand Name: FANRYN
Certification: CE
Minimum Order Quantity: one 40 HQ
Packaging Details: Plastic bag
Delivery Time: 10 work days
Payment Terms: T/T
Detail Information
Application: Thermal Insulation For Buildings, Industrial Equipment Material: Mineral Wool
Environmentalimpact: Recyclable And Eco-friendly Productname: Thermal Insulation Mineral Wool
Installationmethod: Mechanical Fixing Or Adhesive Bonding Thermalconductivity: 0.035 W/m·K
Density: 40-200 Kg/m³ Compressionstrength: ≥10 KPa
Dimensions: Available In Boards, Rolls, And Slabs Temperatureresistance: -268°C To 700°C
Waterabsorption: <1% Thicknessrange: 25mm To 150mm
Vaporpermeability: 0.3 µg/(m·s·Pa) Fireresistance: Non-combustible, Class A1
Soundabsorptioncoefficient: 0.85

Product Description

Rock Wool Blanket with Aluminum Foil Facing - Vapor Barrier & Reflective Insulation
Product Description:

This premium rock wool blanket features a laminated, reinforced aluminum foil facing on one side. The facing acts as a highly effective radiant heat reflector and a certified vapor barrier. It is designed to maximize thermal efficiency by significantly reducing radiant heat transfer and preventing moisture vapor from migrating into the insulation layer, which is critical for controlling condensation in temperature-controlled environments.

Rock Wool Blanket with Aluminum Foil Facing - Vapor Barrier & Reflective Insulation 0
Product parameter of the Rock Wool Blanket
Properties Blanket Standards
Density Tolerance ±10% GB/T 19686-2005
Fire Performance Non-Combustible GB/T 5464-1999
Reaction to fire Class A1 GB/T 8624-2006
Thermal Conductivity (W/mK, at70±5℃) ≤0.044 GB/T 10295
Fiber Diameter 7(+/-1)um GB/T 5480. 4
Shot Content (shot size>0.25mm) ≤12%
Moisture Content ≤0.5%
Organic Matter Content ≤4%
Melting Point >1000℃
Product size of the Rock Wool Blanket
Product Blanket
Density (kg/m3) 60-100
Size: L x W (mm) 600X5000
Thickness (mm) 30-150
Key Features & Benefits:
  • Integrated Vapor Barrier: The airtight aluminum foil facing (with appropriate joint sealing) effectively blocks moisture vapor diffusion, protecting the insulation and underlying structures from condensation, mold, and corrosion.

  • Enhanced Thermal Performance: The reflective foil surface reduces radiant heat gain/loss by up to 97%, complementing the excellent conductive insulation of the rock wool core for superior overall thermal resistance.

  • Clean & Professional Finish: Provides a neat, finished appearance for interior applications and helps contain fine fibers during installation, improving job-site cleanliness.

  • Durable & Tear-Resistant: The laminated facing is reinforced with fiberglass scrim for increased durability and tear resistance during handling and installation.

Production Facing of rock wool blanket

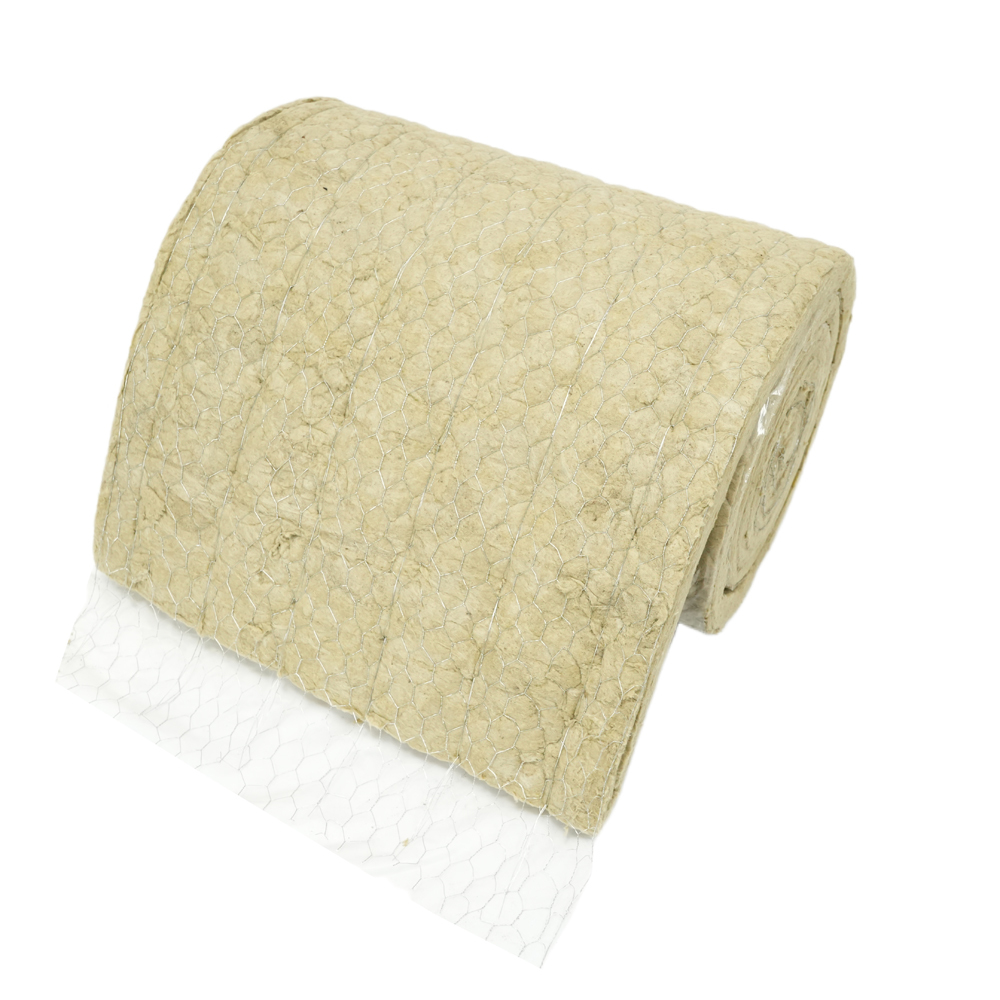

  • Wire Mesh
  • Aluminum foil facing
  • Fiberglas cloth

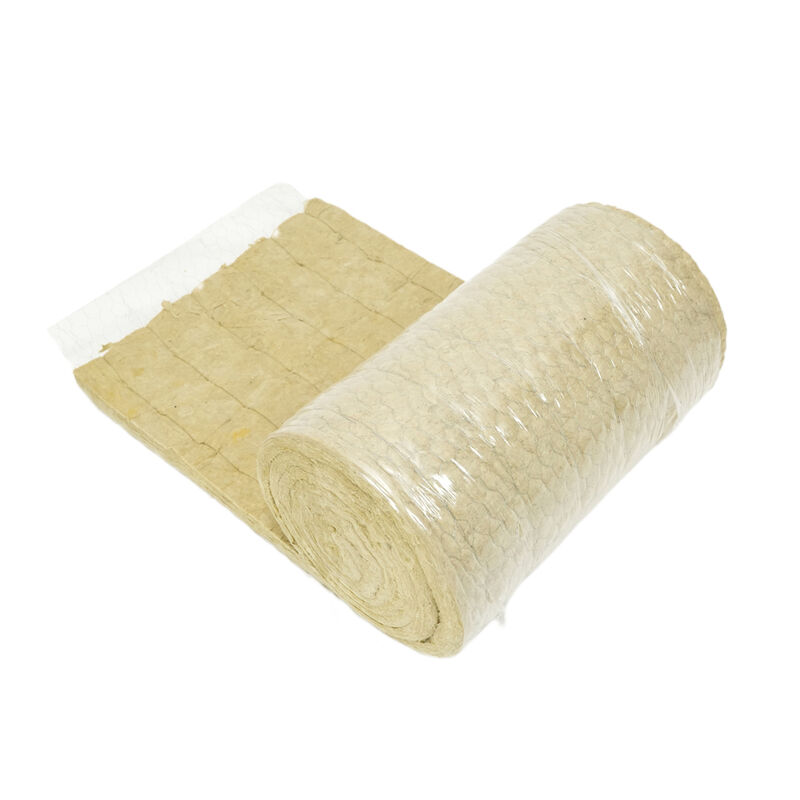

Production packing of the Rock Wool Blanket
  1. plastic bag + woven bag
  2. plastic bag+ PE shrinking bag
  3. PE shrinking bag
FAQ:
Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process

Q2: How to pack exported goods?

A2: Plastic bag + woven bag (Standard Export Packing).

Q3: what is your lead time for one 40HC container order?

A3: Usual 15-20 work days after placing order

Q4: What is your advantage on Rock Wool Blanket?

A4: Special product with special specification can be made to order.

Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
