| Temperature Resistance: | -268°C To 700°C | Application: | Thermal Insulation For Buildings, Industrial Equipment |
|---|---|---|---|
| Environmental Impact: | Recyclable And Eco-friendly | Fire Resistance: | Non-combustible, Class A1 |
| Compressive Strength: | ≥10 KPa | Sound Absorption Coefficient: | 0.85 |
| Thickness: | 25mm To 150mm | Thermal Conductivity: | 0.035 W/m·K |
| Water Absorption: | <1% | Installation Method: | Cutting And Fitting With Mechanical Fasteners Or Adhesives |
| Color: | Gray | Material: | Mineral Wool |
| Dimensions: | Available In Boards, Rolls, And Slabs | Density: | 40-200 Kg/m³ |

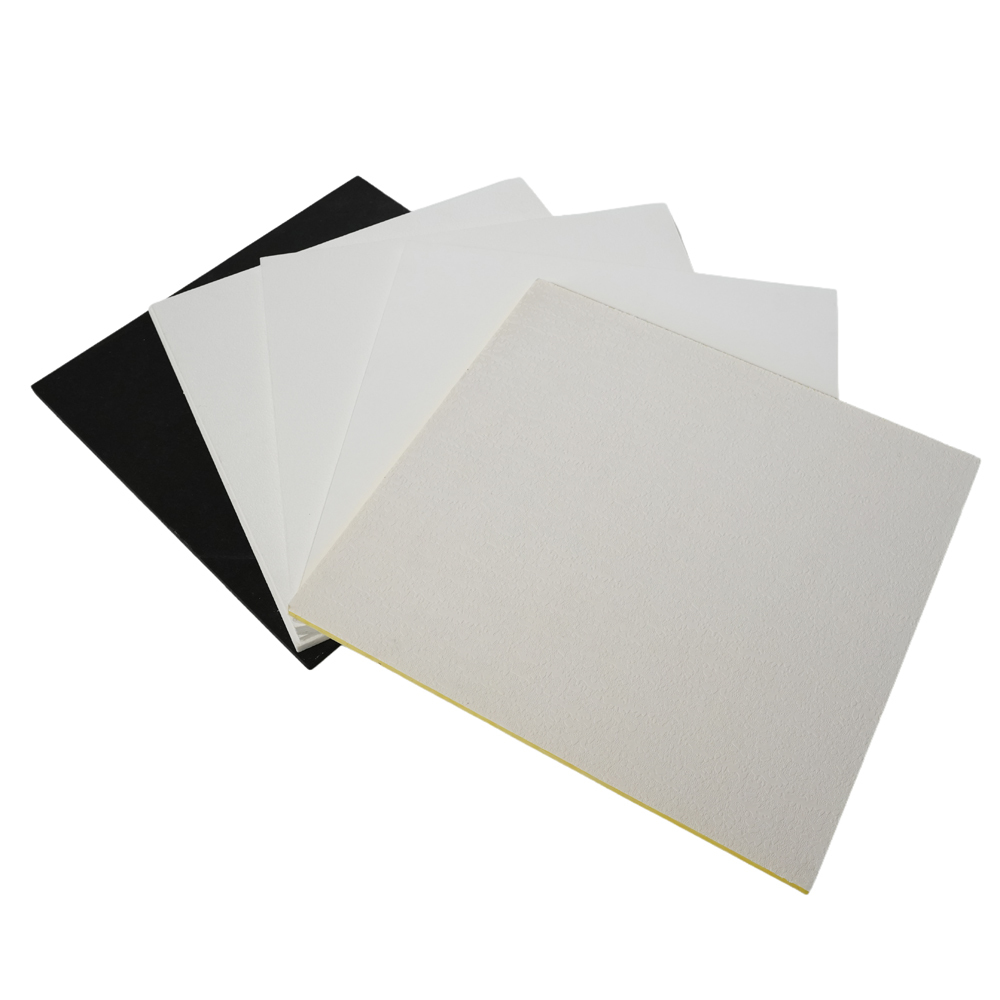

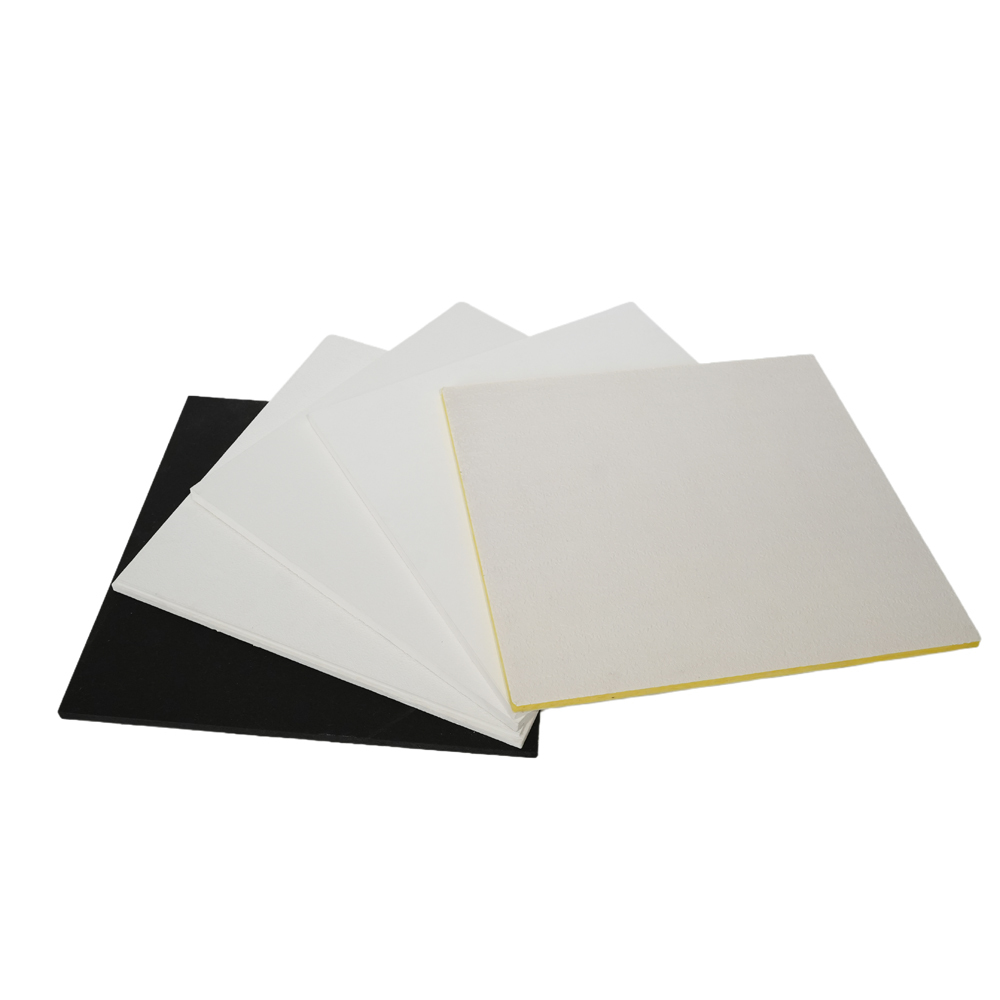

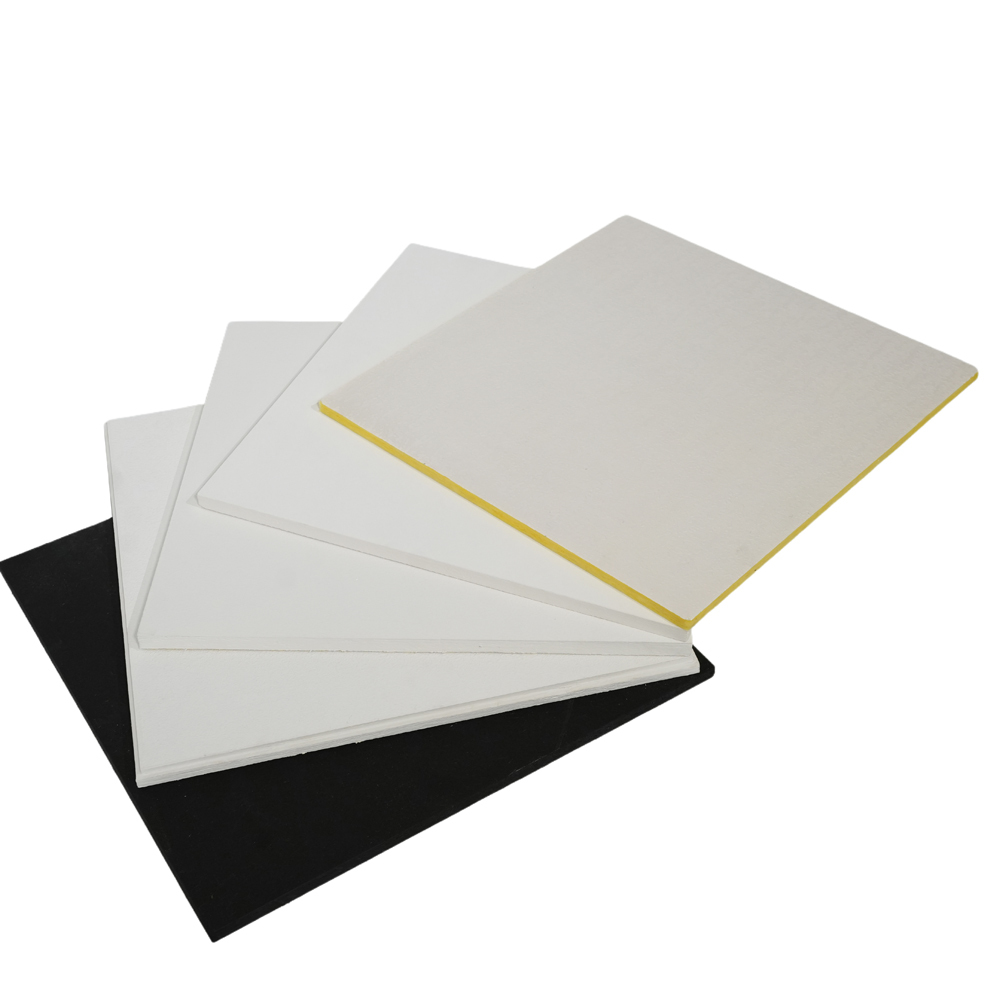

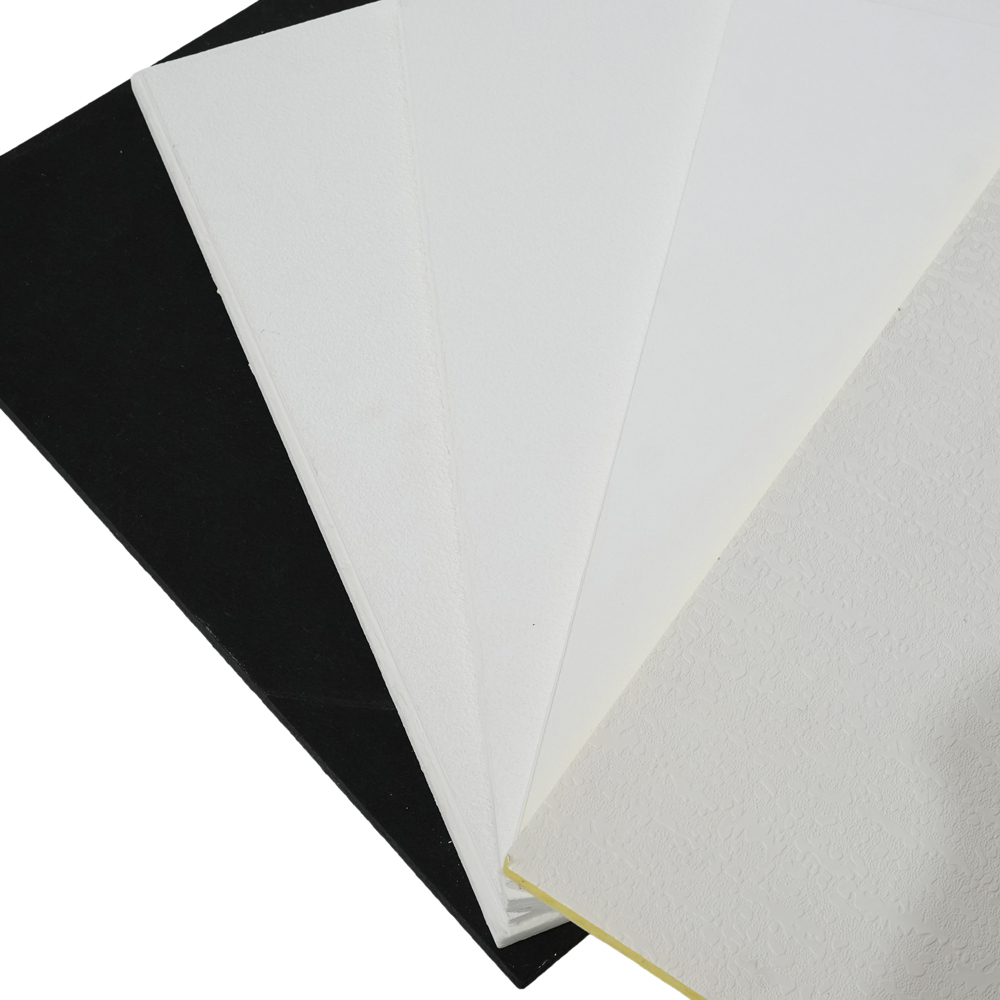

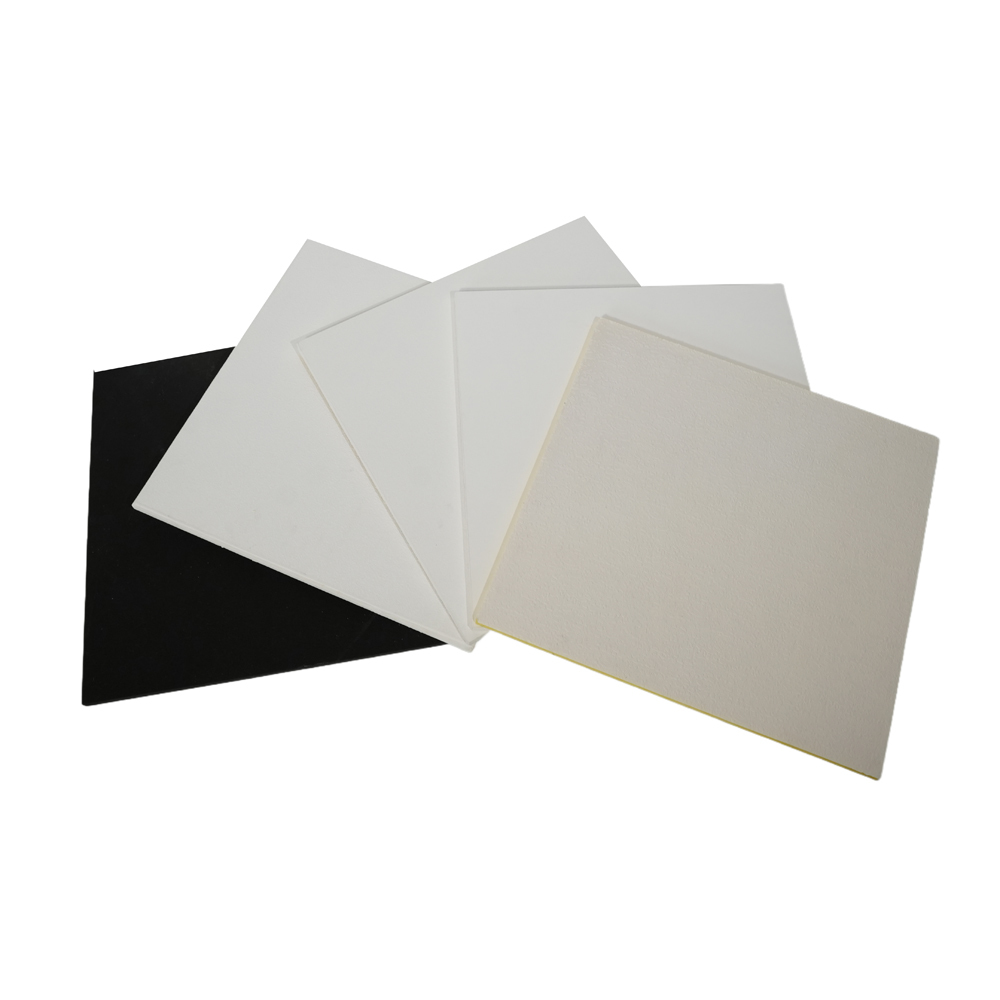

The FANRYN Fiberglass Ceiling Board is a premium, high-density fiberglass wool panel designed for modern commercial and institutional interiors. Its visible face is laminated with a decorative fiberglass tissue or optional PVC facing, while the back features a stabilizing tissue. All four edges are sealed and squared, ensuring a clean, parallel fit with standard exposed grid systems (15mm or 24mm).
| Parameter | Value |
|---|---|
| Core Material | High-density fiberglass wool |
| Density Range | 90 – 130 kg/m³ |
| Surface Finish | Decorative fiberglass tissue / PVC facing |
| Fire Rating | Class A (Non-combustible) |
| NRC (Sound Absorption) | 0.9 – 1.0 |
| Thermal Resistance | ≥0.5 (m²·K/W) |
| Humidity Resistance | Stable up to 95% RH @ 40°C (No sagging/warping) |
| Moisture Rate | ≤1% (JC/T670-2005) |
| Sustainability | Fully recyclable tiles and packaging |
Class A Fire Resistance – Uncompromised Safety
Safety is paramount. FANRYN boards meet strict international standards for non-combustible materials (Class A). They do not ignite, produce minimal smoke, and help contain fire, providing critical extra minutes for evacuation. Radiological safety is also assured with Ira ≤1.0 and Ir ≤1.3.
Outstanding Acoustic Performance (NRC 0.9–1.0)
With a Noise Reduction Coefficient ranging from 0.9 to 1.0, these boards absorb nearly all sound that hits them. This dramatically reduces echo and background noise, making them ideal for environments where clear communication is essential, such as classrooms, open-plan offices, and conference rooms.
Engineered for Harsh Environments (95% RH)
Thanks to the high-density fiberglass core and sealed edges, these panels are dimensionally stable even at 40°C and up to 95% relative humidity. They will not sag, warp, or delaminate, ensuring a flat, professional ceiling for years, even in areas like indoor pools, kitchens, or humid coastal buildings.
Superior Thermal Resistance (≥0.5 m²·K/W)
The fiberglass core naturally traps air, providing an extra layer of thermal insulation. This helps reduce heat transfer through the ceiling, contributing to lower energy costs for heating and cooling.
Educational: Classrooms, lecture halls, libraries (for clear speech intelligibility).
Corporate: Open-plan offices, meeting rooms, reception areas (for reduced distractions).
Commercial: Shopping centers, retail stores, restaurants (for a quieter, more pleasant atmosphere).
Healthcare: Clinics, waiting rooms (for hygiene and reduced noise stress).
Compatible with exposed T-grids (15mm or 24mm width).
Works with both imperial (inches) and metric (centimeters) grid systems.
Easy to cut and trim on-site for lights, vents, or irregular spaces.
| Size (mm) | Cartons per 40HQ | Pieces per Carton | Total Area (m²) per 40HQ |
|---|---|---|---|
| 600 x 600 x 15 | 532 | 20 | 3830.4 |
| 600 x 1200 x 15 | 266 | 20 | 3830.4 |
| 600 x 600 x 20 | 532 | 15 | 2872.8 |
| 600 x 1200 x 20 | 266 | 15 | 2872.8 |
| 600 x 600 x 25 | 532 | 12 | 2298.24 |
| 600 x 1200 x 25 | 266 | 12 | 2298.24 |
Ordering Information: Standard color is white. Black and custom colors are available upon request.
