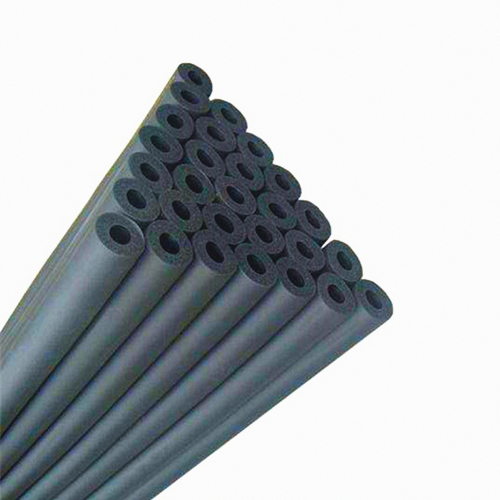

FANRYN CLASS B0 Rubber Plastic Insulation Pipe – High-Performance Thermal Insulation for HVAC Ducts

Basic Information

Place of Origin:	CHINA
Brand Name:	FANRYN

Packaging Details:	Plastic bag
Delivery Time:	15 work days
Payment Terms:	T/T

Get Best Price Contact Now

Detail Information

Joint Maximum Velocity:	J1-J4 180°/S J5-J6 200°/S	Part Number:	H27LK52
Model No:	QM-510	Pose Repeatability:	±0.06mm
Payment Term:	T/T, Western Union,paypal	Technic:	Handcarved And Polished
Throughput:	32Gbps	Use:	Other Household Products
Mass:	13KG	Product:	Robotics Parts
Color:	Yellow, Red	Design Style:	Modern
Country Of Origin:	China	Length:	6.035 Inches
Colors:	Accept Customized Color
Highlight:	rubber plastic insulation pipe , HVAC duct thermal insulation , high-performance insulation pipe

Product Description

Rubber Insulation Pipe

Product introduction of the rubber insulation pipe

FANRYN CLASS B0 Rubber Plastic Insulation Pipe offers exceptional thermal insulation and energy-saving properties. Its charcoal-grey appearance distinguishes it from other grades, while its closed-cell structure provides excellent moisture resistance and longevity. This product is specially formulated to meet European standards and is widely used in HVAC duct systems. It maintains consistent performance across a wide temperature range (-50°C to 110°C), making it suitable for both heating and cooling applications in buildings worldwide.

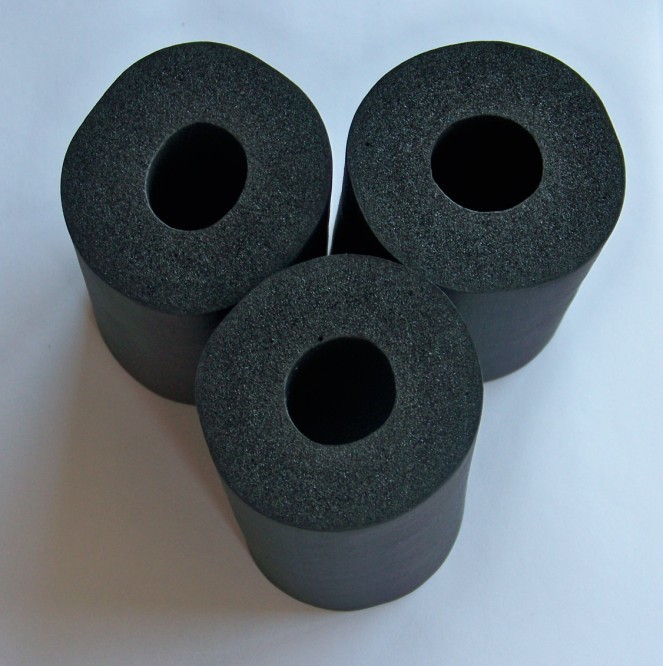

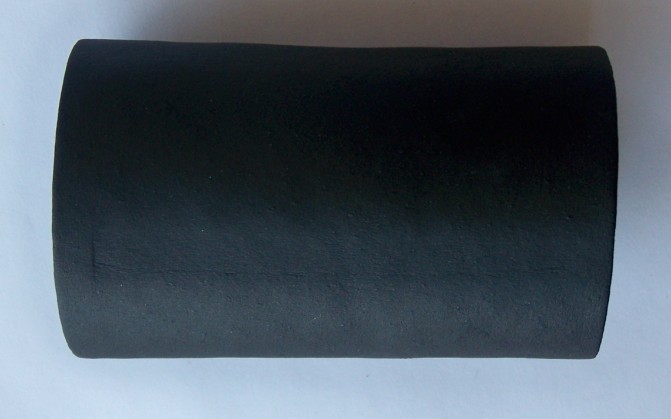

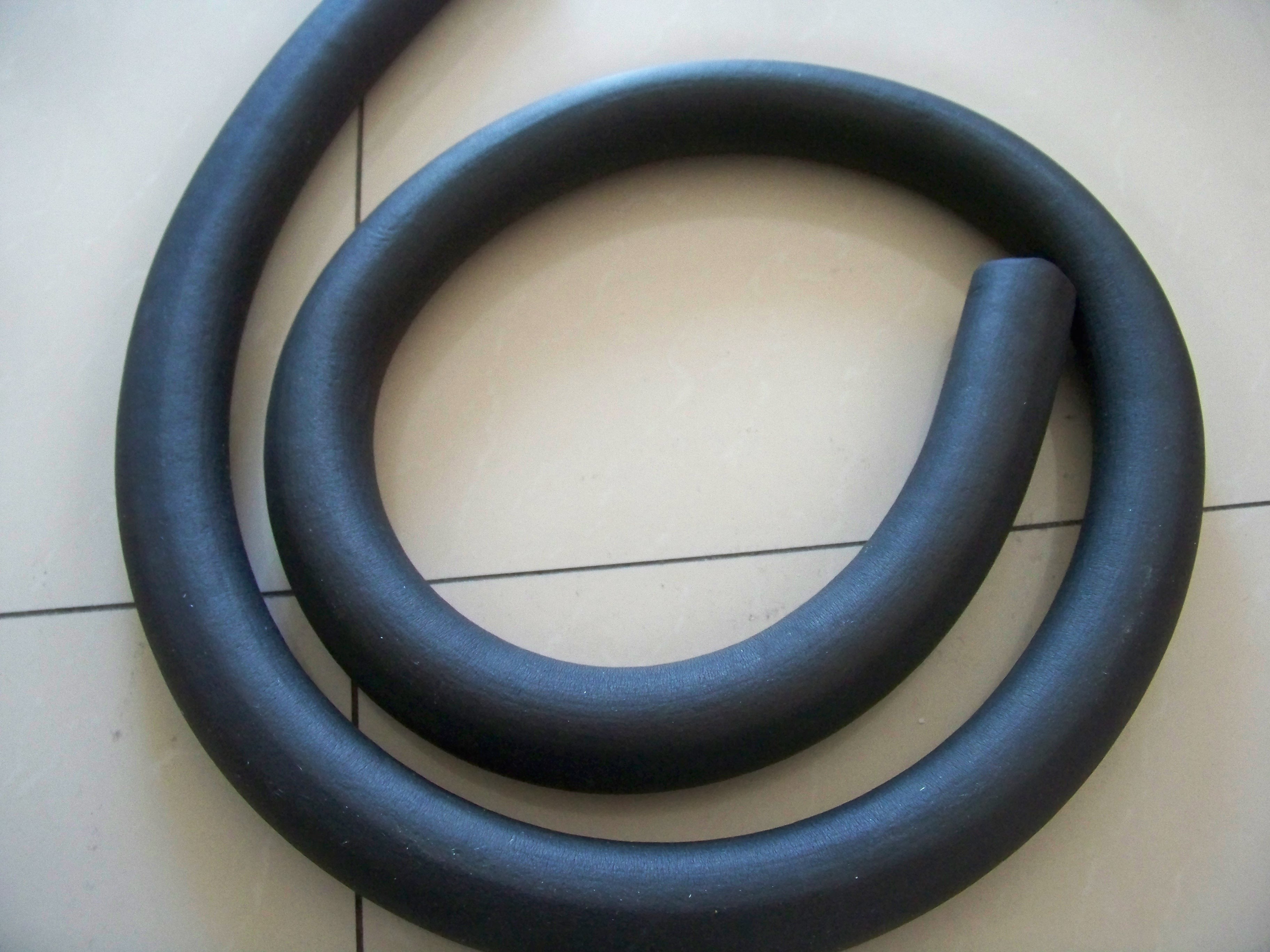

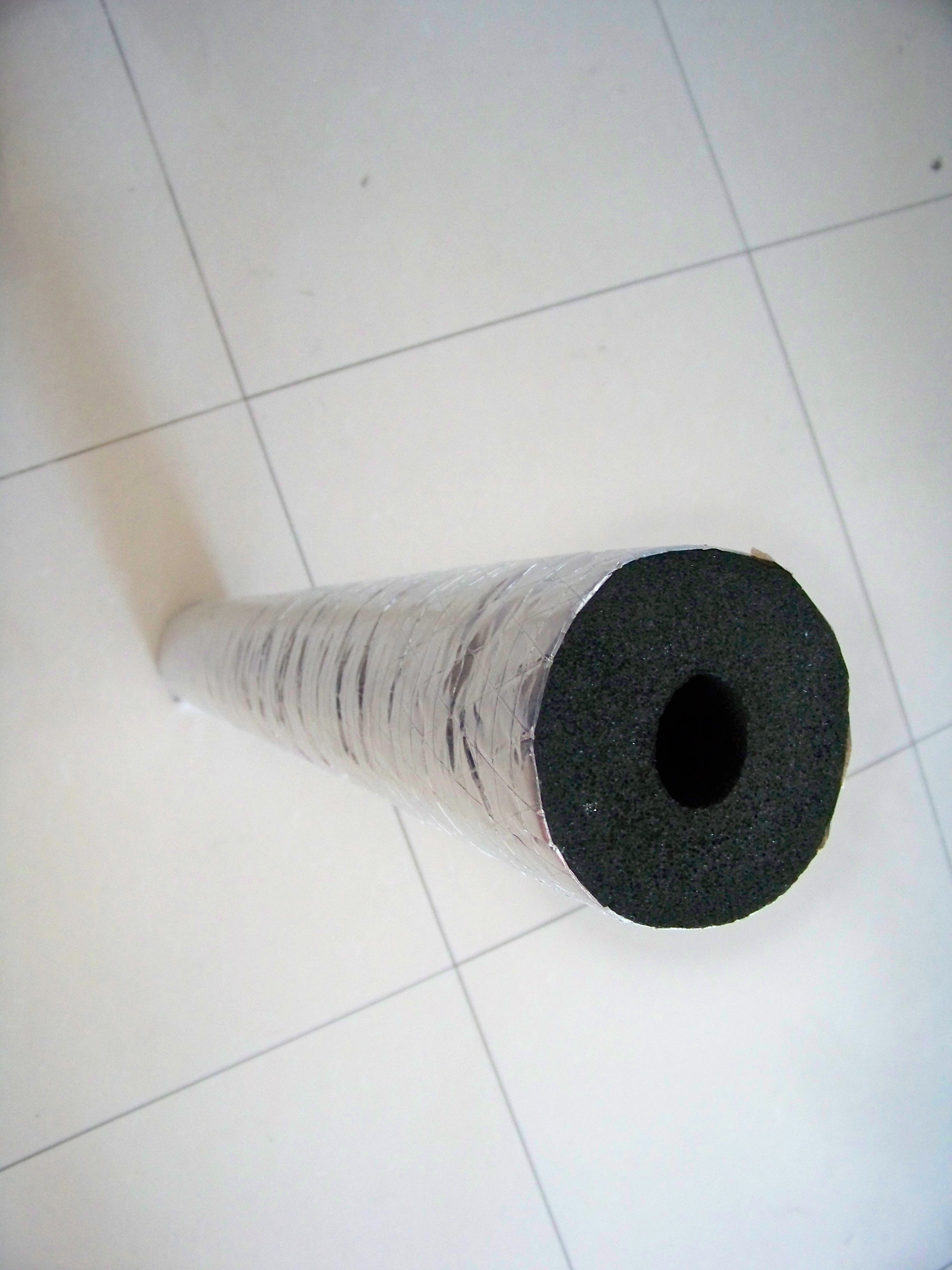

Production details of the rubber insulation pipe

FANRYN CLASS B0 Rubber Plastic Insulation Pipe – High-Performance Thermal Insulation for HVAC Ducts 0 Product parameter of the Class B0 rubber insulation pipe

Item		Unit	Specification	Standard
Density		Kg/m³	40~90	GB/T 6343
Temperature		℃	-50~110	GB/T 17794
Flammability		——	B B1	GB/T 8624-2006
Flammability		——	Glass0	BS476Part 7∝Part6
Oxygen index		%	≥40	GB/T 2406
SDR			≤65	GB 8627-1999
Conductivity factor Average temperature -20℃ 0℃ 40℃		W/(m·k)	≤0.031 ≤0.034 ≤0.036	GB/T 10294
Water vapor permeability	Factor	——	≥1.0×10⁴	GB/T 17146-1997
Water vapor permeability	coefficient	g/(m.s.pa)	≤1.96×10^-11	GB/T 17146-1997
Water absorption ratio in vacuum		%	≤10	GB/T 17794-2008
Dimension stability 105±3℃,7d		%	≤10	GB/T 8811
Crack resistance		N/cm	≥2.5	GB/T 10808
Compression resilience ratio		%	≥70	GB/T 6669
Anti-ozone		——	Not cracking	GB/T 7762
Aging resistance		——	Slightly crumpling,no cracks,no pin holes,not deforming	GB/T 16259

Product size of the rubber insulation pipe

Tube inner diameter (mm)	9mm thick (1.8m/piece)			15mm thick (2m/piece)		20mm thick (2m/piece)		25mm thick (2m/piece)
Tube inner diameter (mm)	Size (mm*mm)	Piece	Piece/box	Size (mm*mm)	Piece	Size (mm*mm)	Piece	Size (mm*mm)	Piece
6	6*9	180	180
10	10*9	140	140	10*15	80	10*20	70
13	13*9	120	100	13*15	80	13*20	50
16	16*9	100	95	16*15	60	16*20	50
19	19*9	100	80	19*15	60	19*20	40
22	22*9	100	70	22*15	60	22*20	40	22*25	30
25	25*9	80	55	25*15	60	25*20	30	25*25	25
28	28*9	60	50	28*15	50	28*20	30	28*25	25
32	32*9	60	45
34				34*15	40	34*20	30	34*25	25
35	35*9	60	40
	38*9	50	30
42	42*9	50	30
43	43*9	50	30	43*15	30	43*20	25	43*25	20
48	48*9	50	28	48*15	30	48*20	25	48*25	20
54	54*9	50	25
60	60*9	50	20	60*15	30	60*20	20	60*25	15
76				76*15	25	76*20	15	76*25	15
89						89*20	15	89*25	15
108						108*20	15	108*25	10

Product feature of the rubber insulation pipe

Low thermal conductivity factor
Good fireproof property
Vibration resistance
Closed pore foaming good moisture resistance
Good pliability
Beautiful appearance and easy to install
Good energy saving property

Product application of the rubber insulation pipe

Chilled water pipes, condense pipes, air ducts and hot-water pipes of air-conditioning equipment
Heat preservation and insulation of central air-conditioning system
Every kind of cold/hot medium piping

Production packing of the rubber insulation pipe

Packing

PE plastic bag
PE plastic bag +carton

Note: OEM is acceptable

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process

Q2: How to pack exported goods?

A2: Plastic bag (Standard Export Packing).

Q3: What is your lead time for one 40HC container order?

A3: Usual 15-20 work days after placing order.

Q4: What is your advantage on rubber insulation pipe?

A4: Special product with special specification can be made to order.

Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
