Fire Resistance Class B1 Rubber Plastic Insulation Sheet with High Sound Absorption and Water Repellent Properties

Basic Information

Place of Origin:	China
Brand Name:	fanryn
Certification:	BS476Part 7∝Part6
Model Number:	rubber insulation sheet

Minimum Order Quantity:	1*20ft
Price:	0.1-5$
Packaging Details:	plastic bag
Delivery Time:	7-10 days
Payment Terms:	T/T
Supply Ability:	10000 square meters

Get Best Price Contact Now

Detail Information

Chemical Resistance:	Resistant To Most Chemicals	Insulation Type:	Thermal
Fire Resistance:	Class 0, Class B1	Density:	40-90 Kg/m3
Sound Absorption:	High	Installation Method:	Loose-fill, Batts Or Rolls
Application:	Roofs, Walls, Floors, Pipes, Ducts	Environmental Impact:	Eco-friendly
Durability:	Long-lasting	Temperature Range:	-50°C To 110°C
Moisture Resistance:	Water Repellent
Highlight:	sound insulation rubber sheet , house repair rubber mat , factory direct rubber roll

Product Description

CLASS B0 Rubber Plastic Insulation Sheet

FANRYN CLASS B0 RUBBER PLASTIC INSULATION SHEET is a premium thermal insulation material engineered for superior performance. Combining exceptional thermal conductivity with enhanced energy efficiency and unparalleled moisture resistance, it ensures long-term reliability and significant cost savings. Manufactured in standard charcoal-grey finish with advanced fire-retardant additives for exceptional fireproof properties.

Compliant with stringent European standards, this product has gained international recognition and is widely exported to Southeast Asia, the Middle East, Australia, and other global markets.

Product Specifications

Dimensions & Tolerances

Thickness	10mm	15mm	20mm	25mm	30mm
Length per piece	20m	20m	10m	10m	10m
Tolerance	+1.5	+1.5	+3.5	+4	+5

Technical Data

Item	Unit	Specification	Standard
Density	Kg/m³	40~90	GB/T 6343
Temperature	℃	-50~110	GB/T 17794
Oxygen index	%	≥40	GB/T 2406
SDR		≤65	GB 8627-1999
Water vapor permeability	Factor	≥1.0×10⁴	GB/T 17146-1997
Water absorption ratio in vacuum	%	≤10	GB/T 17794-2008
Dimension stability 105±3℃,7d	%	≤10	GB/T 8811
Crack resistance	N/cm	≥2.5	GB/T 10808
Compression resilience ratio	%	≥70	GB/T 6669

Applications

Building & HVAC Efficiency: Specialized insulation for workshops and commercial buildings to enhance air conditioning performance and reduce energy consumption
Industrial Process Optimization: Comprehensive insulation systems for temperature-critical containers and pipelines to improve thermal stability
Acoustic Management: Engineered sound absorption products for noise reduction in mechanical systems and industrial environments
Specialized Applications: High-performance insulation for protective equipment, controlled environments, and precision temperature management

Product Advantages

Outstanding Thermal Performance: Exceptionally low thermal conductivity reduces heat transfer for substantial energy savings
Comprehensive Protection & Reliability: Excellent fire resistance, effective vibration damping, and reliable moisture protection with closed-cell structure
Easy & Professional Installation: High flexibility with clean finish enables quick, seamless application in complex scenarios

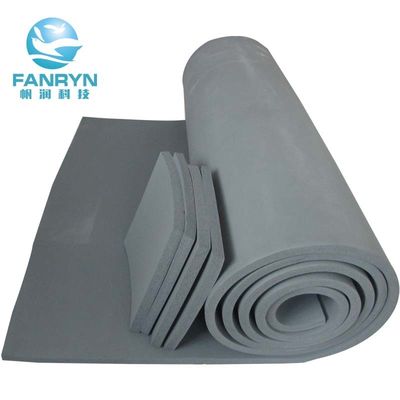

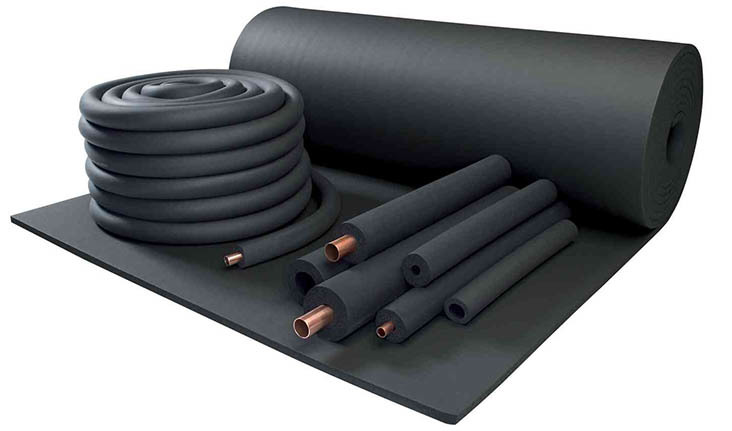

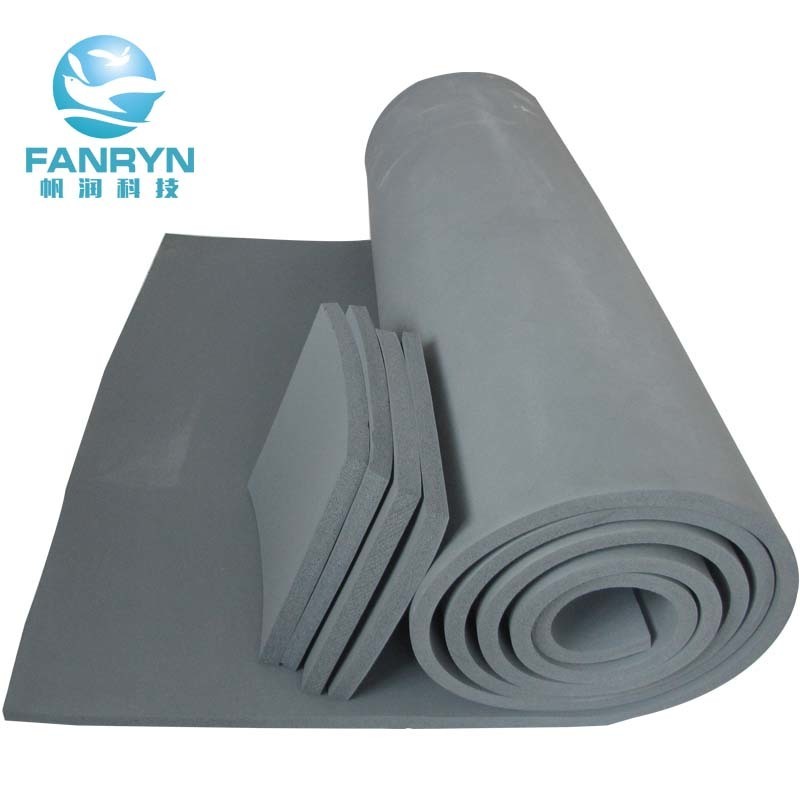

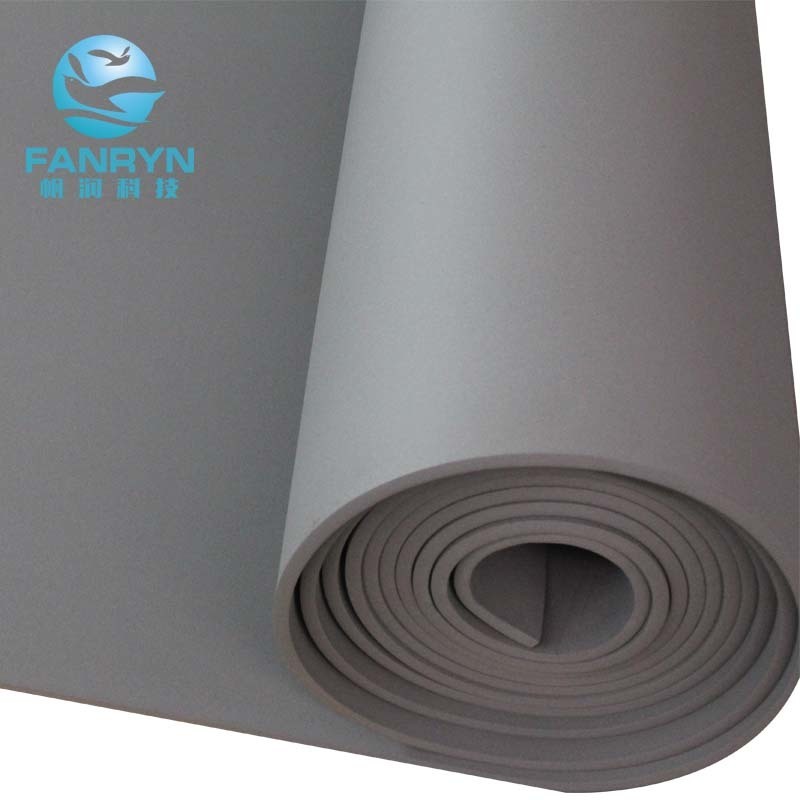

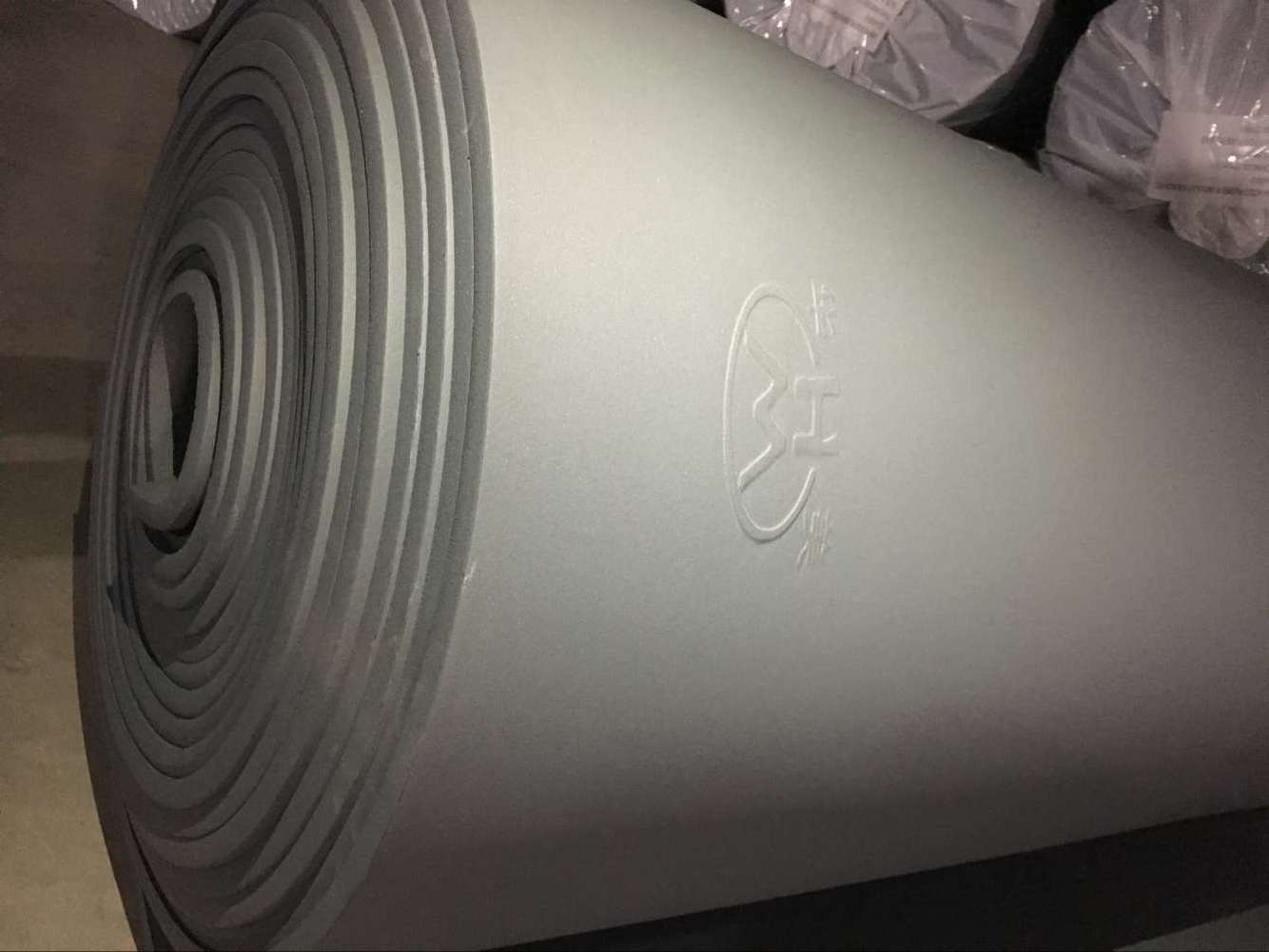

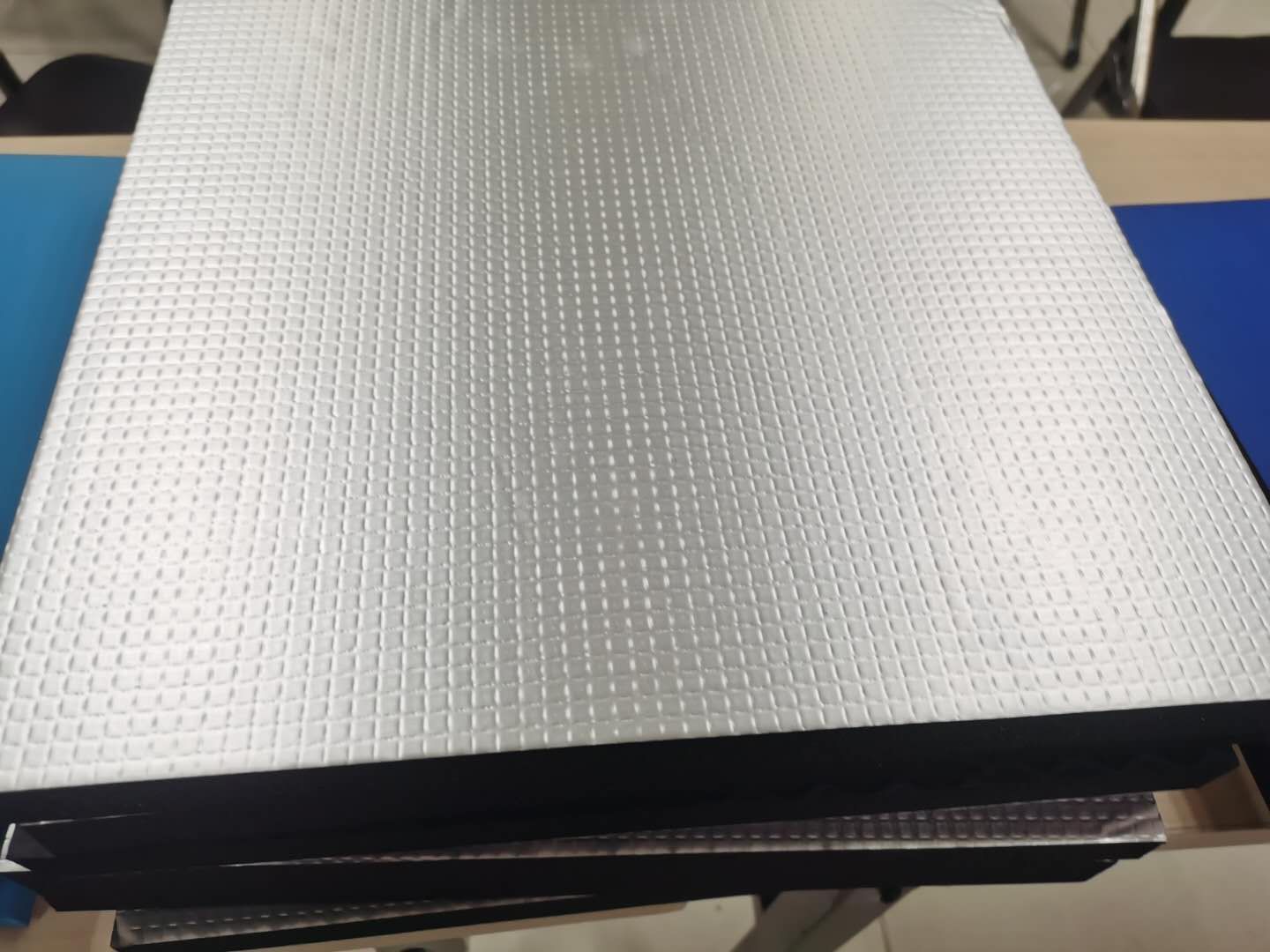

Product Images

Packaging Options

1. PE plastic bag

2. PE plastic bag + carton

Note: OEM is acceptable

If you are interested in our products, please click here to see all the products

Frequently Asked Questions

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process

Q2: How to pack exported goods?

A2: Our standard package is Vacuum plastic bag + woven bag (Standard Export Packing)

Q3: What is your lead time for one 40HC container order?

A3: Usually 10-15 work days after placing order

Q4: What is your advantage on glass wool blanket?

A4: Our glass wool blanket can be freely cut in construction according the shape required

Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly
