FANRYN Double-Sided Fire-Retardant Woven Foil - Premium Protection for Critical Infrastructure

Basic Information

Place of Origin:	CHINA
Brand Name:	FANRYN

Packaging Details:	Carton
Delivery Time:	10 work days
Payment Terms:	T/T

Get Best Price Contact Now

Detail Information

Usage:	Insulation And Vapor Barrier	Weight:	1.5kg
Width:	1.2m	Thickness:	0.02mm
Application:	Roof, Wall, Attic, Basement, HVAC Ducts	Tensile Strength:	40N/25mm
Moisture Resistance:	High	Emissivity:	0.03
Material:	Aluminum Foil	Color:	Silver
Length:	50m	Fire Resistance:	Class A
Reflectivity:	97%	Heat Resistance:	Up To 150°C
Adhesion Strength:	18N/25mm
Highlight:	fire-retardant aluminum foil facing , double-sided woven foil insulation , critical infrastructure protection foil

Product Description

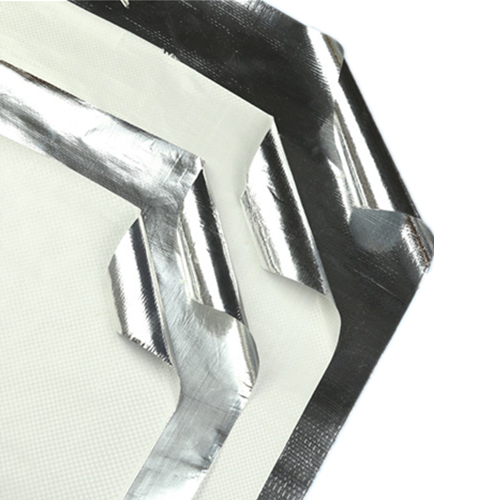

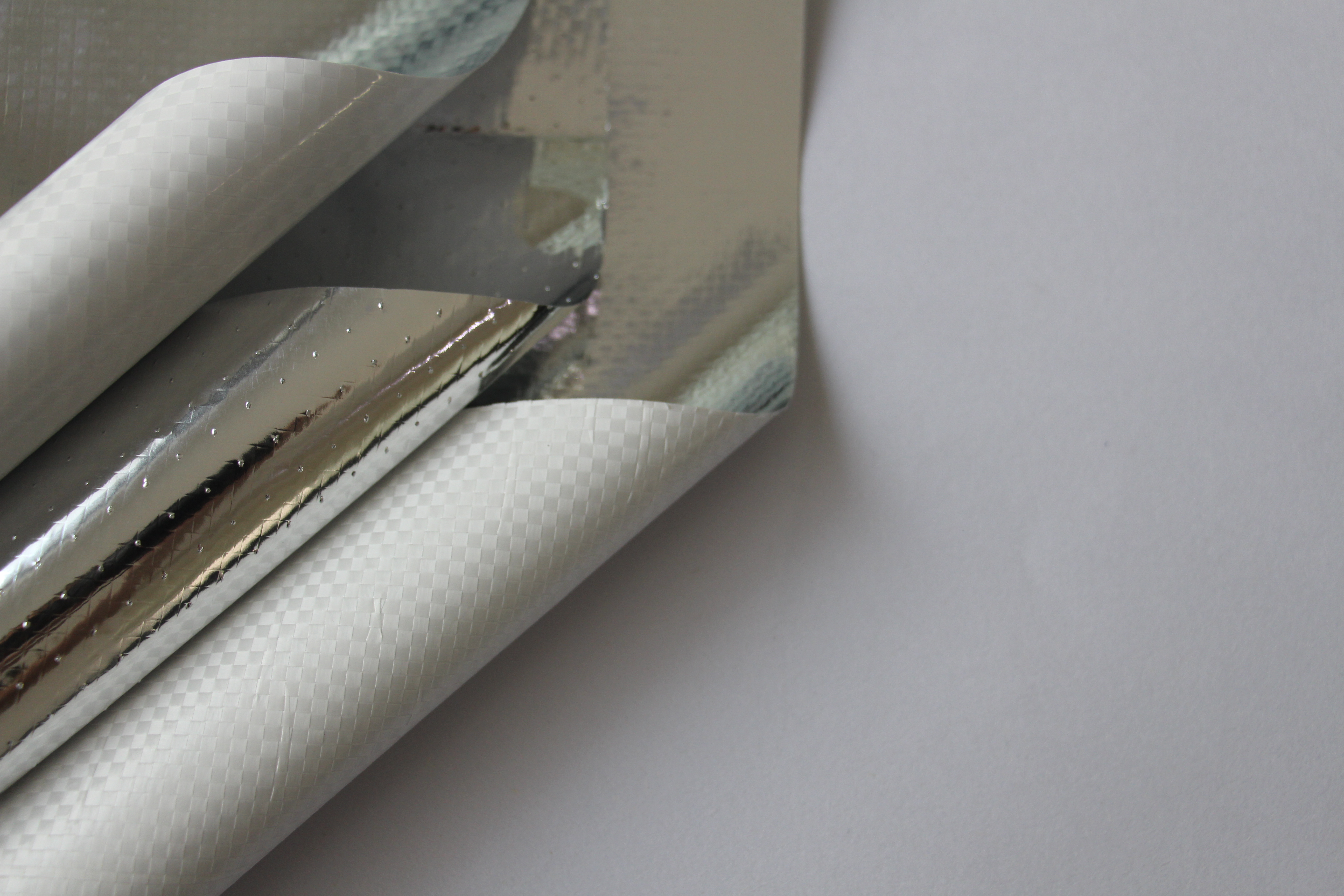

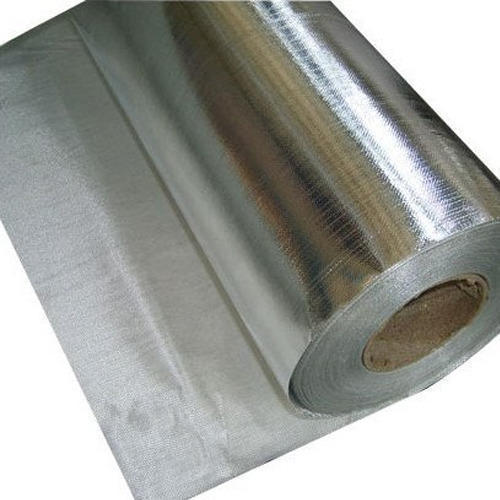

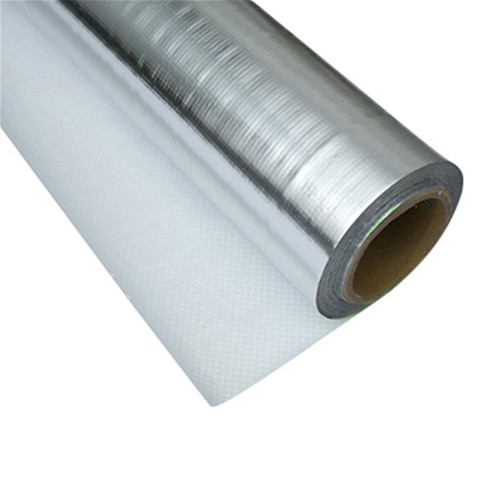

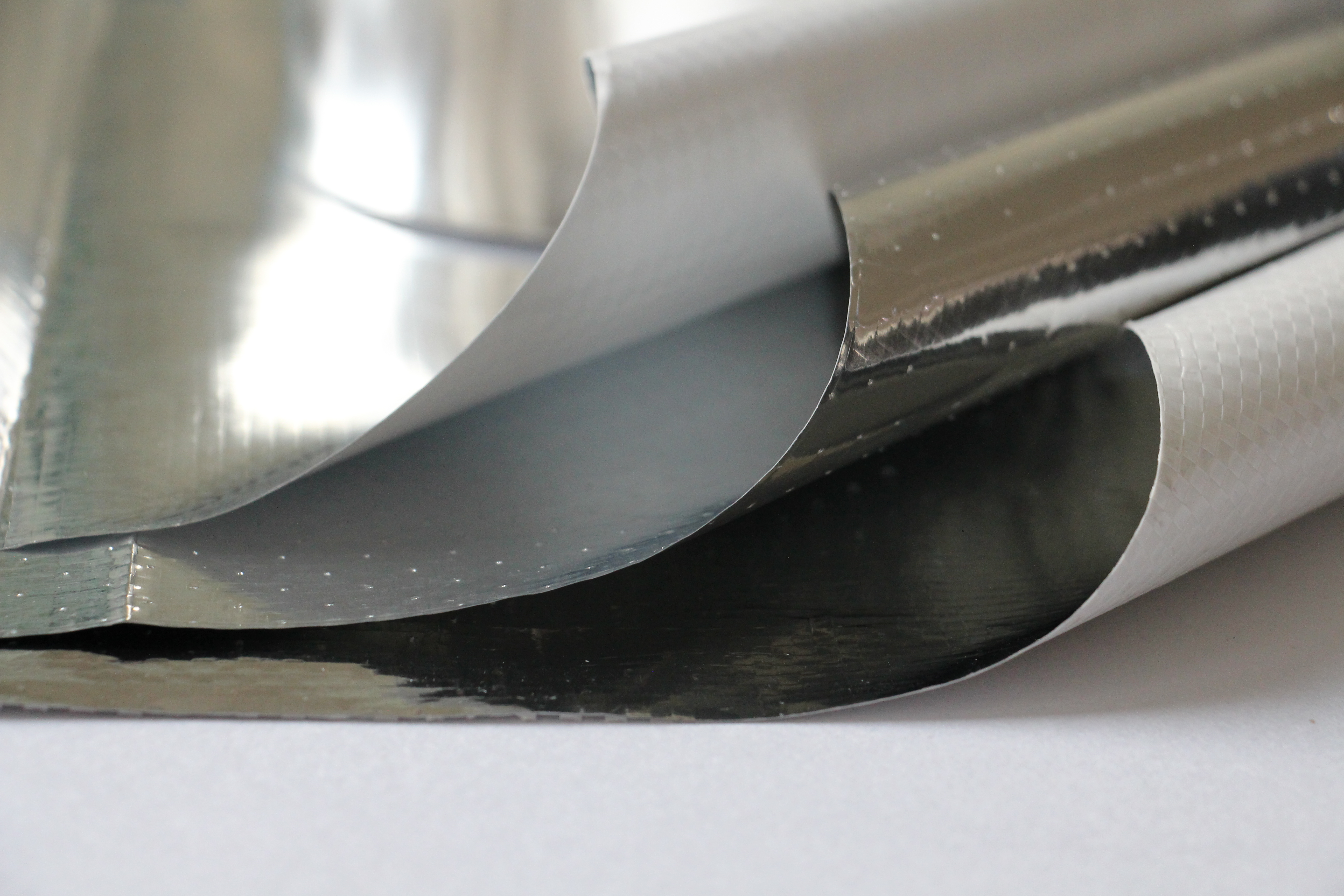

Product Introduction Of The ALUMINUM WOVEN FOIL

This double-sided, fire-retardant foil offers the highest level of protection for critical infrastructure, including data centers, hospitals, and commercial complexes. Its dual reflective layers and fire-resistant construction provide unmatched thermal and safety performance.

Production Details Of The ALUMINUM WOVEN FOIL

Product Parameter Of The ALUMINUM WOVEN FOIL—Aluminum foil / PE woven cloth

Aluminum foil / PE woven cloth
ITEM	VALUE
Aluminum thick	7 micron
Basic weight	110 gsm
Burst strength	140 n
Reflectivity	95~97%
Tensile strength ( MD / XD)	400 /400 n/25mm
Water soak test	24 hours no delamination
Service temperature range	-30 ~ + 60 ℃
Corrosion	None
Pliability	No cracking
Mold and mildew	No growth

OTHERS:

Typical width: 0.8m, 1.0m, 1.2m, 1.25m, 1.30m, 1.5m
Length: according to customer request
Inner core: 76mm

Product Parameter Of The ALUMINUM WOVEN FOIL—Aluminum foil / PE woven cloth / Aluminum

Aluminum foil / PE woven cloth / Aluminum
ITEM	VALUE
Aluminum thick	7 micron
Basic weight	140 gsm
Burst strength	150 n
Reflectivity	95~97%
Tensile strength ( MD / XD)	450 /450 n/25mm
Water soak test	24 hours no delamination
Service temperature range	-30 ~ + 60 ℃
Corrosion	None
Pliability	No cracking
Mold and mildew	No growth

OTHERS:

Typical width: 0.8m, 1.0m, 1.2m, 1.25m, 1.30m, 1.5m
Length: according to customer request
Inner core: 76mm

Product Parameter Of The ALUMINUM WOVEN FOIL—Metalized PET/ PE woven cloth

Metalized PET/ PE woven cloth
ITEM	VALUE
Metalized PET thick	12 micron
Basic weight	116 gsm
Burst strength	110 n
Reflectivity	95~97%
Tensile strength ( MD / XD)	450 /450 n/25mm
Water soak test	24 hours no delamination
Service temperature range	-30 ~ + 60 ℃
Corrosion	None
Pliability	No cracking
Mold and mildew	No growth

OTHERS:

Typical width: 0.8m, 1.0m, 1.2m, 1.25m, 1.30m, 1.5m
Length: according to customer request
Inner core: 76mm

Product Parameter Of The ALUMINUM WOVEN FOIL—Fire retardant aluminum foil / PE woven cloth

Fire retardant aluminum foil / PE woven cloth
ITEM	VALUE
Aluminum thick	7 micron
Basic weight	110 gsm
Burst strength	140 n
Reflectivity	95~97%
Tensile strength ( MD / XD)	400 /400 n/25mm
Water soak test	24 hours no delamination
Service temperature range	-30 ~ + 60 ℃
Corrosion	None
Pliability	No cracking
Mold and mildew	No growth

OTHERS:

Typical width: 0.8m, 1.0m, 1.2m, 1.25m, 1.30m, 1.5m
Length: according to customer request
Inner core: 76mm

Product Parameter Of The ALUMINUM WOVEN FOIL—Fire retardant aluminum foil / PE woven cloth / Aluminum

Fire retardant aluminum foil / PE woven cloth / Aluminum
ITEM	VALUE
Aluminum thick	7 micron
Basic weight	140 gsm
Burst strength	150 n
Reflectivity	95~97%
Tensile strength ( MD / XD)	450 /450 n/25mm
Water soak test	24 hours no delamination
Service temperature range	-30 ~ + 60 ℃
Corrosion	None
Pliability	No cracking
Mold and mildew	No growth

OTHERS:

Typical width: 0.8m, 1.0m, 1.2m, 1.25m, 1.30m, 1.5m
Length: according to customer request
Inner core: 76mm

Product Feature And Application Of The ALUMINUM WOVEN FOIL

Dual-sided aluminum foil for maximum heat reflection
Higher burst strength (150 N) and tensile strength (450 N/25mm)
Resists delamination even after 24-hour water immersion--
Wide service temperature range (-30℃ to +60℃)
Zero corrosion, cracking, or mold growth
