Home > Products> Fiberglass Pipe Insulation> Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes.

Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes.

Basic Information

Place of Origin:	China
Brand Name:	FANRYN
Certification:	CE, ASTM E84, EN 13501 12018
Model Number:	glasswool pipe

Minimum Order Quantity:	1*40HQ per specification
Price:	0.5-5$/m2
Packaging Details:	plastic bag or carton
Delivery Time:	15 days
Payment Terms:	T/T
Supply Ability:	1*40HQ 15 days

Get Best Price Contact Now

Detail Information

Thermalconductivity:	>=0.4 W/m·K	Environmentalimpact:	Recyclable, Eco-friendly
Fireresistance:	Non-combustible, Class A1	Waterabsorption:	<1%
Productname:	Fiberglass Ceiling Panel	Application:	Classrooms, Offices, Shopping Center, Etc.
Material:	Glass Wool	NRC:	0.8-0.9
Highlight:	glass wool pipe insulation , industrial cold-keeping pipe insulation , building materials heat insulation pipe

Product Description

Products Description

Glass wool pipe sections are a cost-effective insulating material, known for being lightweight and easy to install. They provide excellent thermal and acoustic insulation across a wide temperature range, from -85℃ to 454℃. As a result, these pipe sections are widely used for insulating ventilation ducts, industrial and civil heating systems, as well as various heating and cooling pipelines.

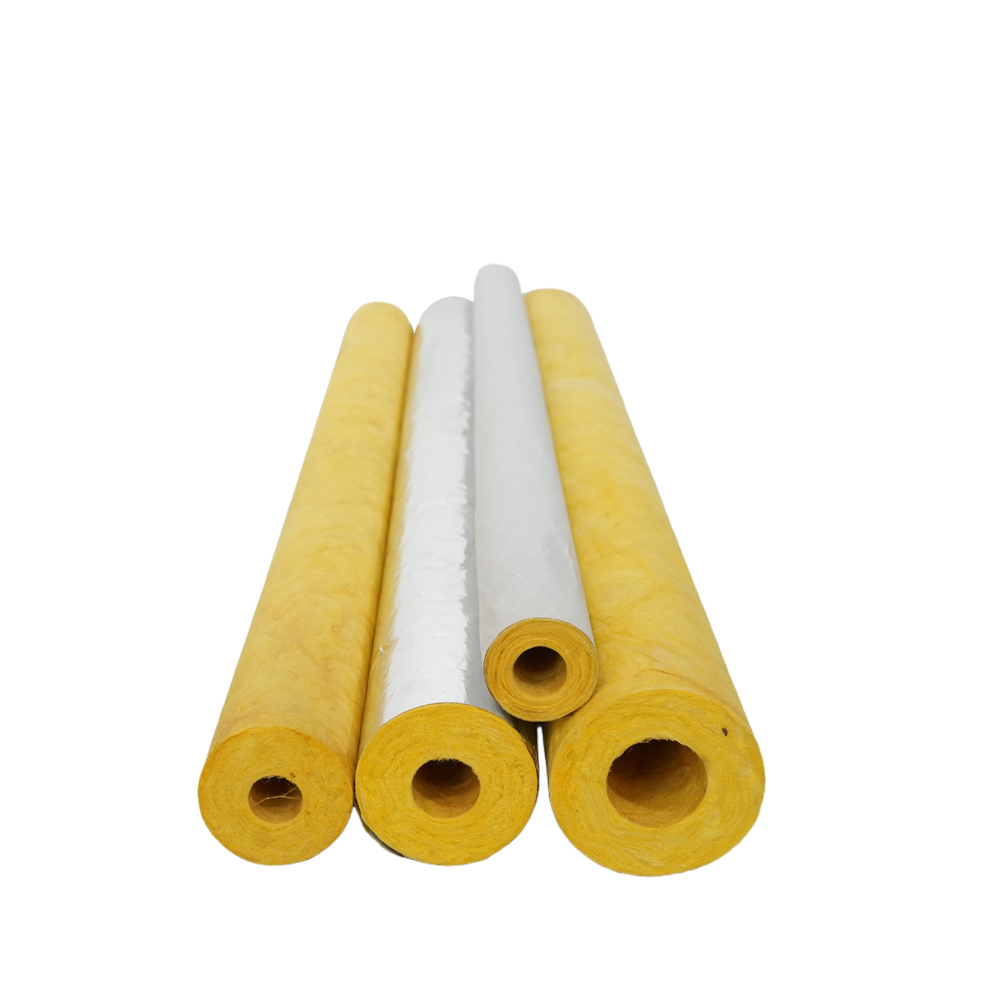

Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. 0

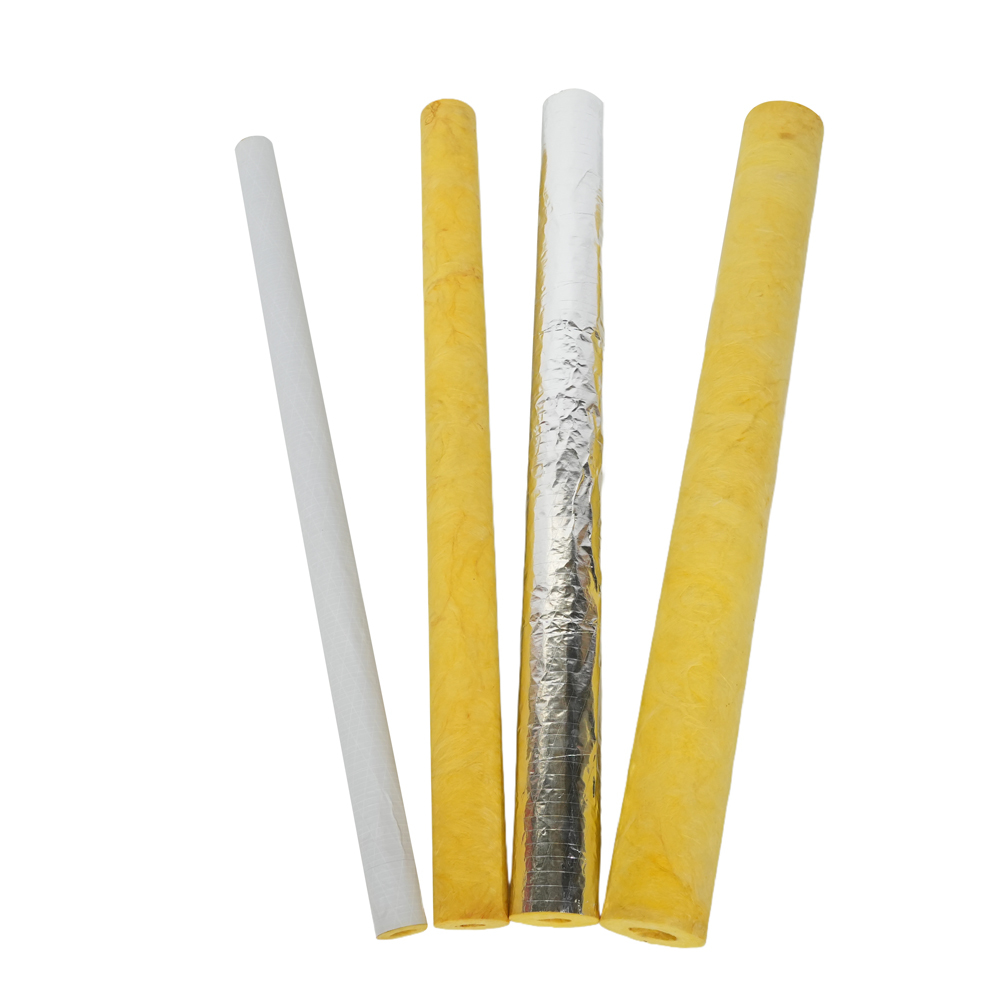

Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. 1

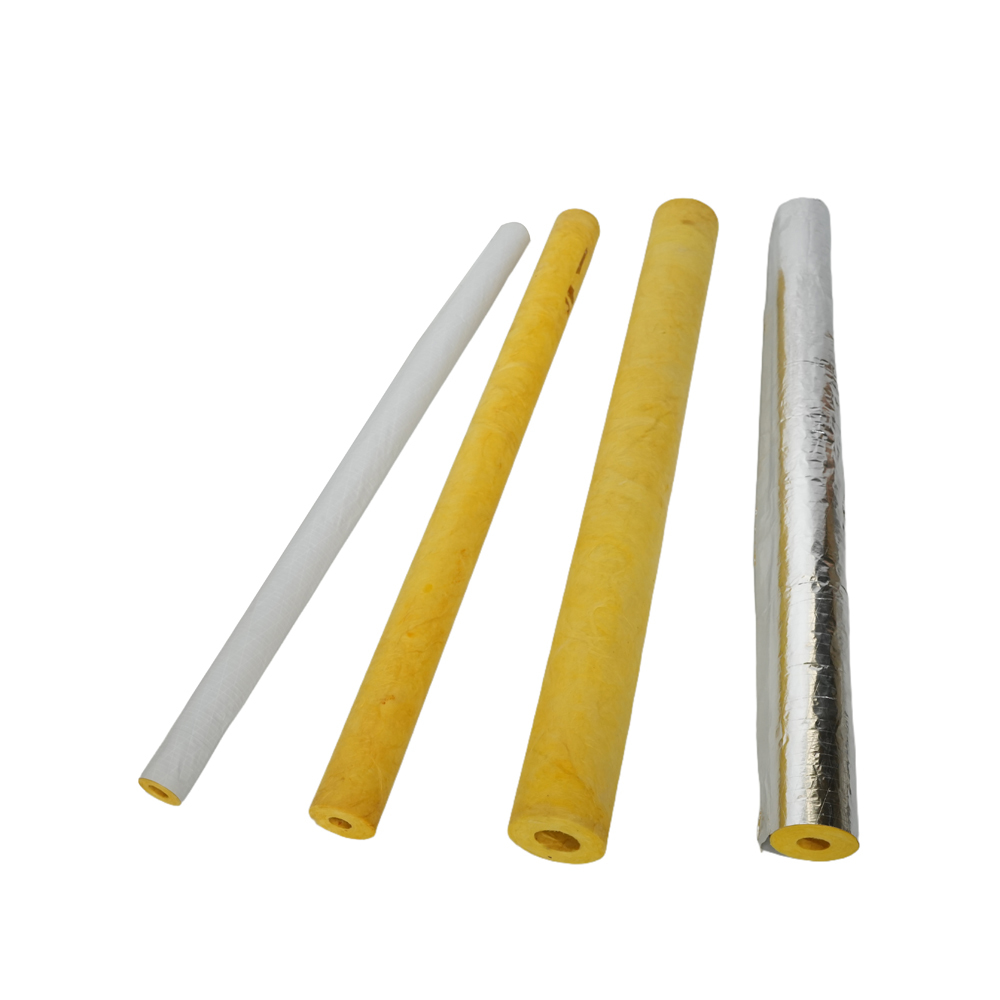

Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. 2

Product feature of the glasswool pipe

Wide-Temp Performance
Excellent insulation from -85°C to 454°C for both heating and cooling lines.
Noise Reduction
Absorbs sound from airflow and vibration, reducing system noise.
Easy & Fast Installation
Lightweight pre-formed sections cut and fit quickly, saving time and labor.
Moisture Resistant
Hydrophobic treatment prevents condensation and maintains performance.
Safe & Durable
Non-corrosive, fire-resistant (Class A), and long-lasting.
Cost-Effective for Multiple Uses
Ideal for HVAC, industrial, and domestic hot/cold water pipes.

Product Specifications

Density(kg/m3)	Thickness(mm)	Length (mm)	Diameter (mm)
48-80	25-90	1000,1200	18-529

Technical Data

Recommend Thickness List(mm)

Pipeline System Type	The Thickness of glasswood pipe shell applied in different pipeline(mm)
Pipeline System Type	Liquid Temperature Range℃	Diameter of Branches Under 50mm	Under 25mm	32-50	64-100	125-150	Above 200mm
Air System Steaming and Water System High Temperature/ High Pressure System	152-238	40	64	64	75	89	89
Medium Temperature/ Medium Pressure System	122-151	40	50	64	64	75	75
low Temperature/ low Pressure System	94-121	25	40	40	50	50	50
low Temperature System	49-93	13	25	25	40	40	40
Steaming Condensator of Watering System	Any Temperature	25	25	40	50	50	50

Equivalent Thickness of Surface Cooling Prevention

Environment Temperature	Relative Humidity	System Working Temperature
Environment Temperature	Relative Humidity	2℃	7℃	13℃
38℃	50%-60%	25	25	25
	70%	40	30	30
	80%	75	60	50
	85%	100	90	75
32℃	50%-60%	25	25	25
	70%	25	25	25
	80%	50	50	40
	85%	80	75	60
27℃	50%-70%	25	25	25
	80%	50	40	30
	85%	75	65	50
21℃	50%-70%	25	25	25
	80%	50	40	30
	85%	75	50	40

If the humidity exceeds 90%, some cooling water will appeared on the surface. In this condition, adding the waterproofing coat or PVC plastic shell if necessary.

Product application

Pipe Insulation

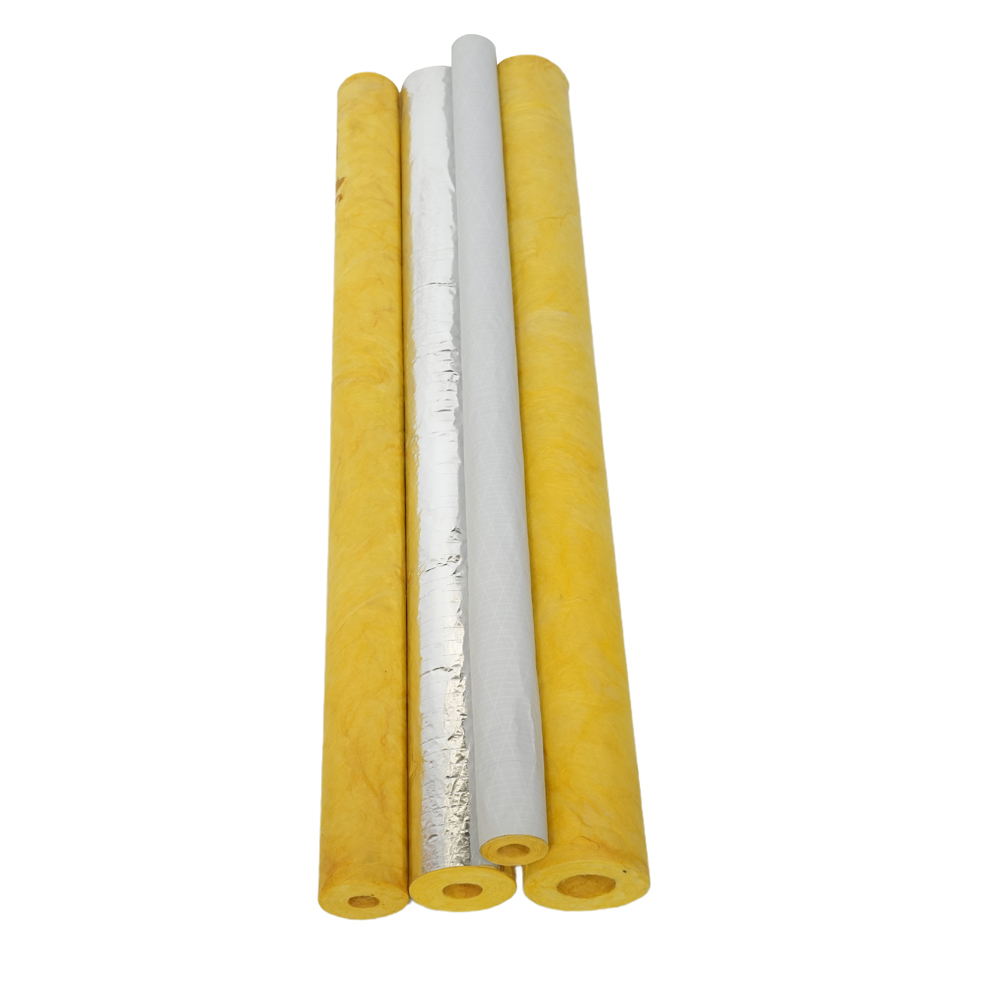

Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. 3

Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. 4

Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. 5

Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. 6

Main Facing:

Foil-Scrim-Kraft Facing

Alum Glass Cloth Facing

Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. 7

Production packing of the glass wool pipe

Carton or plastic bag

Note: OEM is acceptable

Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. 8

Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. 9
