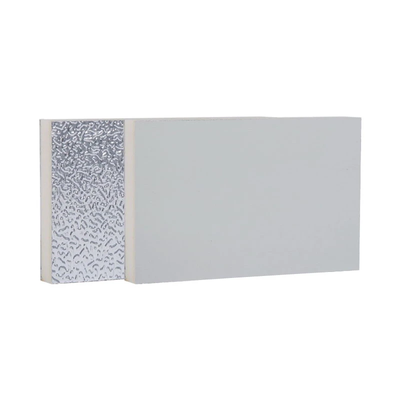

High-Performance PIR Foam Insulation Panel with 0.022 W/m·K Thermal Conductivity, Class 0 Fire Rating, and 0.36% Water Absorption for HVAC Systems

PIR Composite Insulation Panel – Engineered for HVAC Performance

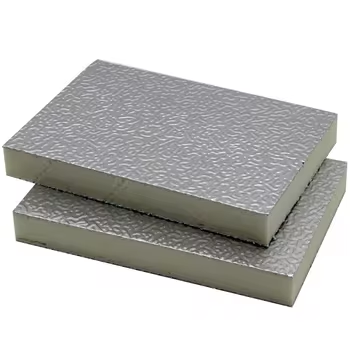

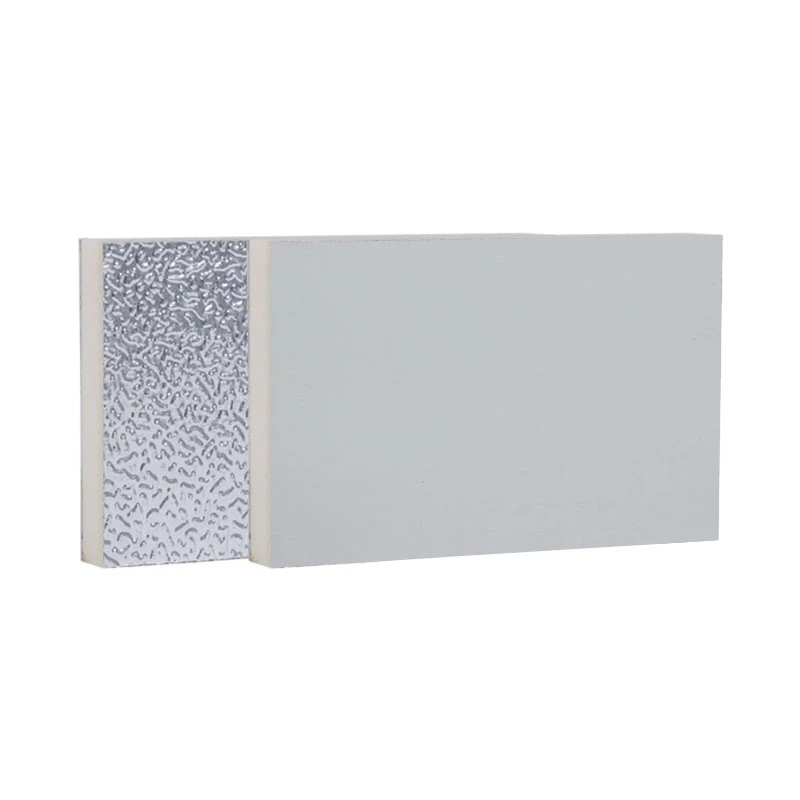

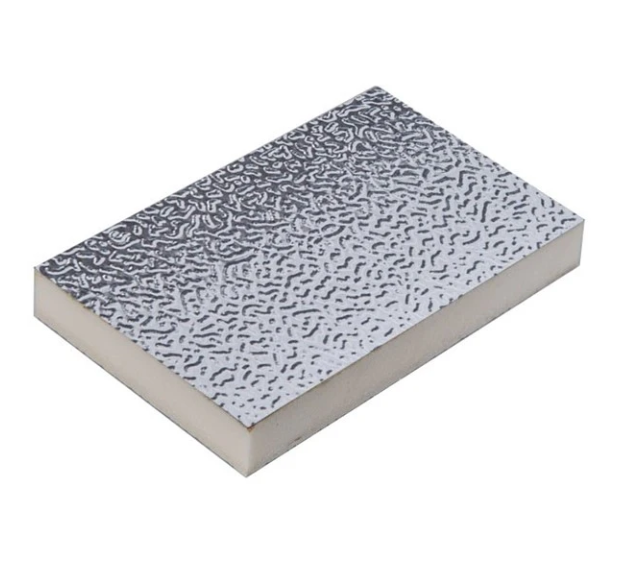

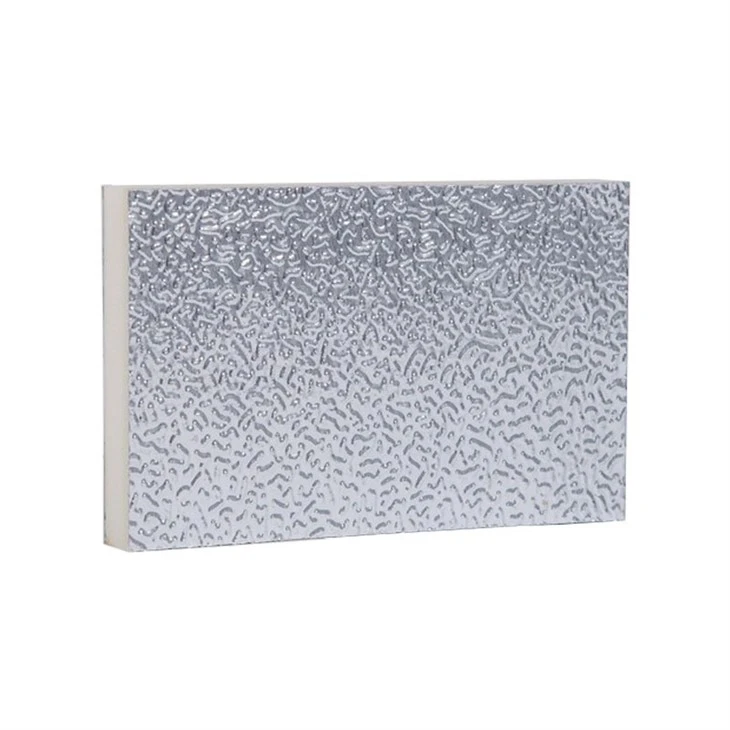

A high-performance composite panel engineered for superior thermal insulation in air conditioning and ventilation systems. Featuring a rigid PIR foam core fully encapsulated between aluminum foil facings, it delivers excellent thermal retention, effective condensation control, and reliable structural integrity—suitable for a wide range of commercial and residential building applications.

Technical Data Sheet

Key Features & Advantages

Superior Thermal Insulation

• Ultra-low thermal conductivity: 0.022 W/m·K – minimizes heat transfer for maximum energy efficiency

• Reduced HVAC operational costs: significantly lowers energy consumption

• Consistent indoor comfort: maintains stable temperatures throughout the year

Class 0 Fire Rating – BS 476 Part 6 & 7 Certified

• Highest UK fire safety standard: meets rigorous fire protection requirements

• Flame and smoke suppression: effectively inhibits flame spread and smoke propagation

• Building and occupant protection: enhances overall structural safety

High Compressive Strength

• Compressive strength: 0.202 MPa – ensures shape stability under load

• Versatile application: suitable for floors, roofs, and complex installations

• Long-term reliability: built to withstand demanding conditions

Minimal Water Absorption

• Ultra-low water absorption: 0.36% – closed-cell structure keeps moisture out

• Prevents deformation and mold: maintains dimensional stability in humid environments

• Extended building life: protects insulation performance over time

Environmentally Friendly

• Zero CFCs & HCFCs: 100% free of ozone-depleting substances, compliant with international green standards

• Ultra-lightweight design: only 1.3 kg/m² – reduces transportation costs and simplifies handling

• Fast and easy installation: cuts down labor time and boosts construction efficiency

Application

Commercial Buildings

• Central air conditioning systems – reduces energy consumption, improves indoor comfort, and boosts overall efficiency

• Commercial complexes – ideal for offices, shopping malls, hotels, and more

• Designed for both rectangular and round air ducts – provides efficient thermal insulation

Healthcare Facilities

• Hospitals, nursing homes, and high-standard wellness buildings

• Moisture-proof and mold-resistant – ensures long-lasting, clean indoor environments

Industrial Ventilation Systems

• Reduces thermal loss in industrial ventilation – ensures stable airflow and precise temperature control

Equipment Insulation

• Refrigeration insulation – prevents condensation and frost, protects equipment from damage

General Industrial Piping

• Absorbs vibration and reduces noise – improves operational safety and system efficiency
