Detail Information

Application Temperature:	-200°C To 650°C	Chemical Resistance:	Resistant To Most Chemicals
Environmental Impact:	Non-toxic And Environmentally Friendly	Compressive Strength:	100-200 KPa
Vapor Permeability:	0.5-1.0 Ng/Pa.s.m	Dimensional Stability:	Less Than 1%
Material:	Mineral Wool	Thermal Conductivity:	0.035 W/mK
Sound Absorption:	0.9-1.0 NRC	Tensile Strength:	50-100 KPa
Installation Method:	Loose Fill, Batts, Or Rolls	Fire Resistance:	Class A1
Water Absorption:	Less Than 1%	Density:	10-200 Kg/m3
Highlight:	pre-formed rock wool pipe shells , mineral wool thermal insulation , easy install pipe insulation

Product Description

Product introduction of the rock wool pipe

Save time and labor costs on your next project with Fanryn's pre-formed Rock Wool Pipe shells. Designed for simplicity and efficiency, they are the perfect solution for both new construction and retrofit applications, providing immediate thermal and fire protection straight out of the bag.

Product details of the rock wool pipe

Product parameter of the rock wool pipe

Properties	Specifications	Standards
Density Tolerance	±15%	GB/T 19686-2005
Fire Performance	Non-Combustible	GB/T 5464-1999
Fire Performance	Reaction to fire Class A1	GB/T 8624-2006
Thermal Conductivity (W/mK, at70±5℃)	≤0.044	GB/T 10295
Fiber Diameter	7(+/-1)um	GB/T 5480. 4
Shot Content (shot size＞0.25mm)	≤12%
Eccentricity of Pipe shell	≤5mm

Product size of the rock wool pipe

DIA

Thickness (mm)

inch

100

120

150

1/2’’

●

3/4’’

●

1’’

●

1-1/4’’

●

1-1/2’’

●

2’’

●

2-1/2’’

●

3’’

●

3-1/2’’

108

●

4’’

114

●

5’’

140

●

6’’

169

●

8’’

219

●

10’’

273

●

12’’

325

●

14’’

356

●

15’’

381

●

16’’

406

●

18’’

456

●

19’’

483

●

20’’

508

●

22’’

558

●

24’’

610

●

Product feature of the rock wool pipe

Pre-Formed for Efficiency: Simply fit the two halves around the pipe and secure. Drastically reduces installation time compared to blanket wraps.
Minimal Waste: Precise sizing and easy cutting ensure material is used efficiently, saving money.
Reusable for Retrofits: Can be easily removed and re-installed during system maintenance or modifications.
Comprehensive Size Range: Available for pipe diameters from 1/2" (22mm) to 24" (610mm) and thicknesses from 25mm to 150mm.
Consistent Quality: Precise manufacturing ensures uniform thickness and density across every piece.

Product application of the rock wool pipe

Quick insulation for plumbing, heating, and industrial piping in new building projects.
Maintenance and retrofit projects in factories, plants, and commercial buildings.
Insulating complex pipe networks with valves and fittings.

Production packing of the rock wool pipe

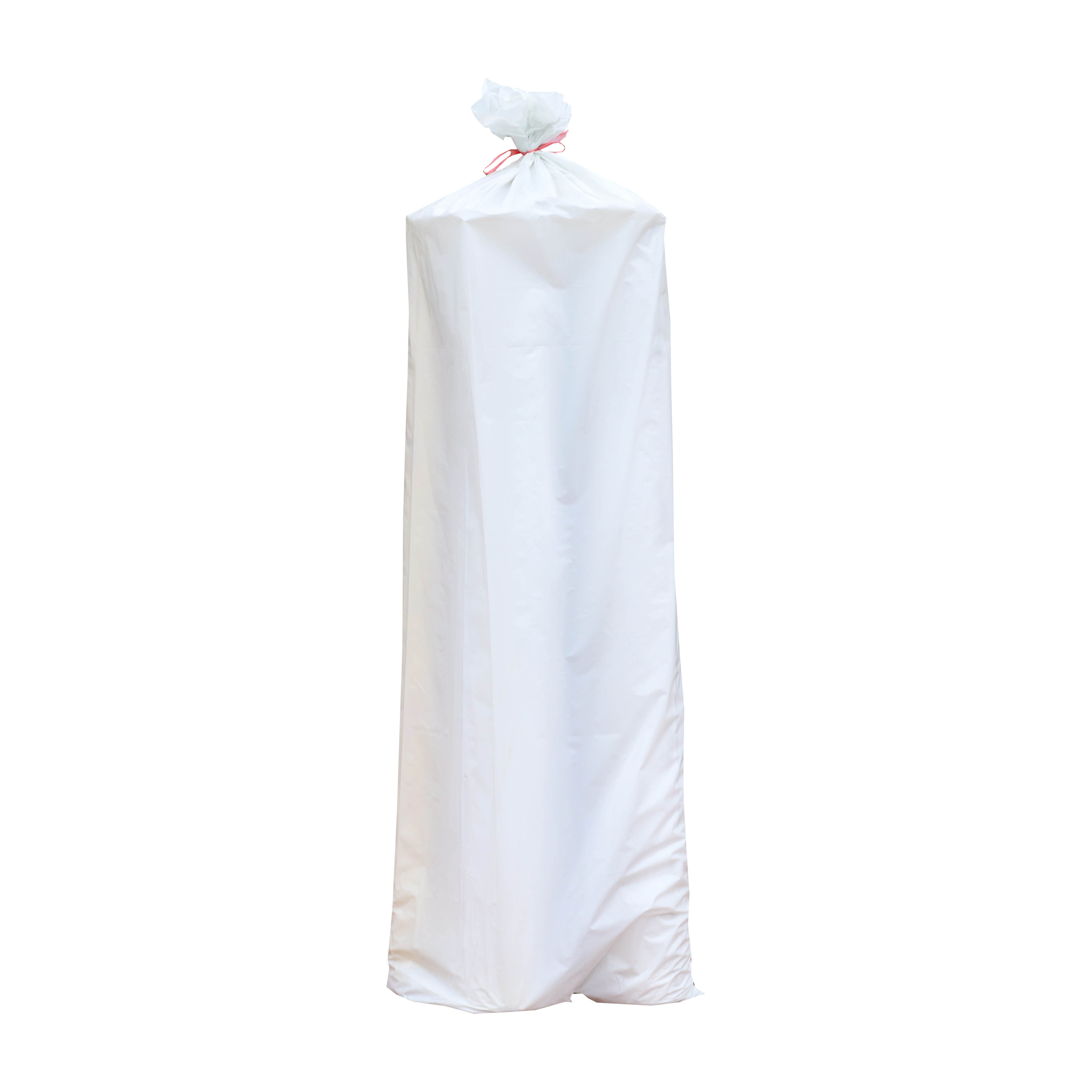

Plastic bag

Pre-Formed Rock Wool Pipe Shells for Easy Installation and Retrofitting 3

FAQ:

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process

Q2: How to pack exported goods?

A2: Plastic bag (Standard Export Packing).

Q3: what is your lead time for one 40HC container order?

A3: Usual 15-20 work days after placing order.

Q4: What is your advantage on rock wool pipe?

A4: Special product with special specification can be made to order.

Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
