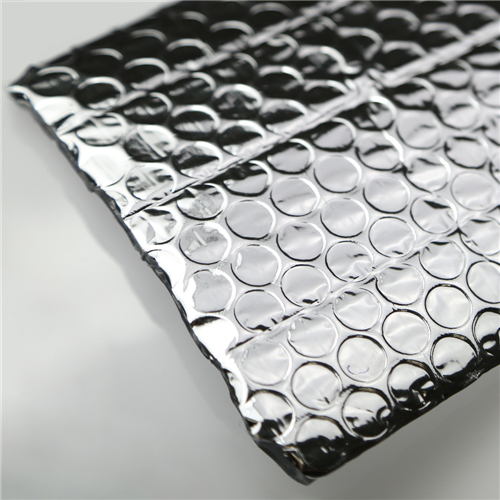

Product Introduction Of The ALUMINUM BUBBLE FOIL
Combat moisture effectively! Our aluminum bubble foil acts as an exceptional vapor barrier, preventing water penetration with a remarkably low 0.012 G/m²KPA transmission rate. Perfect for swimming pool enclosures, marine applications, and high-humidity regions, this insulation prevents mold growth while providing outstanding thermal performance. The non-toxic, odor-free material ensures healthy indoor air quality.
Product Characterics Of The ALUMINUM BUBBLE FOIL
-
Superior moisture resistance
-
Prevents mold and mildew
-
Non-toxic and odorless
-
Wide temperature tolerance
-
Easy to clean and maintain
Product Parameter Of The ALUMINUM BUBBLE FOIL—Fire retardant Aluminum / Bubble / Aluminum
|
Aluminum + Bubble + Aluminum
|
|
ITEM
|
UNIT
|
VALUE
|
|
Aluminum thick
|
micron
|
7
|
|
Bubble size (Diameter*Height)
|
mm
|
10*4
|
|
Bubble weight
|
kg/m²
|
0.26
|
|
Emissivity
|
COEF
|
0.03 ~ 0.04
|
|
Reflectivity
|
%
|
95~97
|
|
Water vapor transmission
|
G/m²KPA
|
0.012
|
|
Service temperature range
|
℃
|
-40 ~ + 80
|
|
Tensile Strength (MD / TD)
|
Mpa
|
34 / 26
|
|
Linear Shrinkage
|
-----
|
None
|
|
Corrosion
|
-----
|
None
|
|
Pliability
|
-----
|
No cracking
|
|
Mold and mildew
|
-----
|
No growth
|
|
Fire rating
|
-----
|
Class A / Class 1
|
OTHERS:
Max width: 1.50m
Length: according to customer request
Bubble diameter: 6mm, 10mm, 12mm, 20mm, 25mm
Product Parameter Of The ALUMINUM BUBBLE FOIL—Fire retardant Aluminum / Double- layer bubble / Aluminum
|
Aluminum + Bubble Bubble + Aluminum
|
|
ITEM
|
VALUE
|
|
Aluminum thick
|
7 micron
|
|
Bubble size
|
10mm * 7mm ( Diameter * Height)
|
|
Bubble weight
|
0.3kg/m²
|
|
Emissivity
|
0.03 ~ 0.04 COEF
|
|
Reflectivity
|
95~97 %
|
|
Water vapor transmission
|
0.012 G/m²KPA
|
|
Service temperature range
|
-40 ~ + 80 ℃
|
|
Tensile Strength (MD / TD)
|
34 / 26
|
|
Linear Shrinkage
|
None
|
|
Corrosion
|
None
|
|
Pliability
|
No cracking
|
|
Mold and mildew
|
No growth
|
|
Fire rating
|
Class A / Class 1
|
OTHERS:
Max width: 1.50m
Length: according to customer request
Bubble diameter: 6mm, 10mm, 12mm, 20mm, 25mm
Product Introduction Of The ALUMINUM BUBBLE FOIL—Fire retardant Aluminum foil / Woven Cloth / Bubble / Woven Cloth / Aluminum
This material is added PE woven cloth between the aluminum foil and bubble foil, it can hence the tensile strength and tear resistance, can be stable-working in roofing and wall system.
Product Parameter Of The ALUMINUM BUBBLE FOIL—Fire retardant Aluminum foil / Woven Cloth / Bubble / Woven Cloth / Aluminum
|
Aluminum foil / Woven Cloth / Bubble / Woven Cloth / Aluminum
|
|
ITEM
|
VALUE
|
|
Aluminum thick
|
7 micron
|
|
Bubble size
|
10mm * 7mm ( Diameter * Height)
|
|
Bubble weight
|
0.3 kg/m²
|
|
Emissivity
|
0.03 ~ 0.04 COEF
|
|
Reflectivity
|
95~97 %
|
|
Water vapor transmission
|
0.012 G/m²KPA
|
|
Service temperature range
|
-40 ~ + 80 ℃
|
|
Tensile Strength (MD / TD)
|
34 / 26 Mpa
|
|
Linear Shrinkage
|
None
|
|
Corrosion
|
None
|
|
Pliability
|
No cracking
|
|
Mold and mildew
|
No growth
|
|
Fire rating
|
Class A / Class 1
|
OTHERS:
Max width: 1.50m
Length: according to customer request
Bubble diameter: 6mm, 10mm, 12mm, 20mm, 25mm
Product Feature And Application Of The ALUMINUM BUBBLE FOIL
Production Details Of The ALUMINUM BUBBLE FOIL
