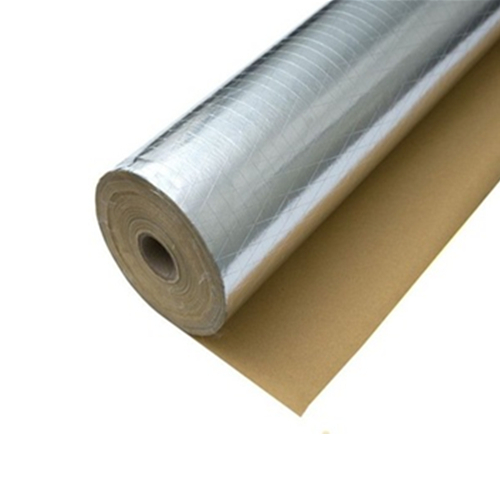

FSK Facing - The Ultimate Vapor Barrier for Metal Building Insulation

Basic Information
Place of Origin: CHINA
Brand Name: FANRYN
Packaging Details: Plastic bag
Delivery Time: 10 work days
Payment Terms: T/T
Detail Information
Vapor Barrier: Yes Reflectivity: 97%
Uv Resistance: Yes Water Vapor Transmission Rate: 0.02ng/N.s
Thickness: 0.02mm Temperature Resistance: -30°C To 80°C
Adhesive Type: Acrylic Width: 1.2m
Structure: 3-way Scrim Material: Foil Scrim Kraft
Fire Rating: Class A Tensile Strength: 30N/25mm
Length: 60m Elongation: 5%
Highlight:

FSK Facing vapor barrier

,

metal building insulation facing

,

FSK insulation barrier with warranty


Product Description

Product Introduction Of the FSK FACING

FSK Facing is the industry-standard choice for insulating various metal buildings, including warehouses, factories, and supermarkets. This robust composite material provides an exceptional vapor barrier and improved radiant barrier performance when laminated with insulation like glass wool or rock wool.

Product Parameter Of The FSK FACING

FSK Facing - The Ultimate Vapor Barrier for Metal Building Insulation 0

Product Construction
FS - 750 Foil: 7 micron / Polyethylene / 50 gsm Kraft paper
FS - 760 Foil: 7 micron / Polyethylene / 60 gsm Kraft paper
FSK-7160A Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Polyethylene / 60 gsm Kraft paper
FSK- R7160A Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Fire retardant adhesive / 60 gsm Kraft paper
FSK-7160B Foil: 7 micron / 2-ways scrim ( 12.5 x 12.5mm) / Polyethylene / 60 gsm Kraft paper
FSK-R7160B Foil: 7 micron / 2-ways scrim ( 12.5x 12.5mm) / Fire retardant adhesive / 60 gsm Kraft paper
FSK - 7180A Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Polyethylene / 80 gsm Kraft paper
FSK - 7180B Foil: 7 micron / 2-ways scrim ( 12.5 x 12.5mm) / Polyethylene / 80 gsm Kraft paper
FSK -73B Foil: 7 micron / 2-ways scrim ( 6.25x 12.5mm) / Polyethylene / 60 gsm Kraft paper
FSK -R73B Foil: 7 micron / 2-ways scrim ( 6.25 x 12.5mm) / Fire retardant adhesive / 60 gsm Kraft paper
TYPICAL PHYSICAL PROPERTIES
Product Basic weight (g/m²) Tensile MD (n/25mm) Tensile XD (n/25mm) Bursting Strength(n) WVTR (ng/N.s) Reflectivity of Foil Surface Temperature Resistance (℃) Fire Rating
FS - 750 80 95 50 20 5.75 95% -29~ +66 -----
FS - 760 85 105 50 20 5.75 95% -29~ +66 -----
FSK - 7160A 96 125 50 30 5.75 95% -29~ +66 -----
FSK - R7160A 98 130 50 30 5.75 95% -29~ +66 Class 1
FSK - 7160B 98 132 65 30 5.75 95% -29~ +66 -----
FSK - R7160B 100 136 65 30 5.75 95% -29~ +66 Class 1
FSK - 7180A 115 150 75 40 5.75 95% -29~ +66 -----
FSK - 7180B 95 150 80 40 5.75 95% -29~ +66 -----
Product Feature And Application Of The FSK FACING
  • Superior Strength: High tensile and burst strength ensures long-term durability in demanding environments.

  • Excellent Vapor Barrier: Low water vapor transmission rate (WVTR) protects insulation from moisture, preserving R-value.

  • Chemical Resistance: Ideal for use in chemically hostile environments.

  • Proven Reliability: Withstands temperatures from -20°C to +66°C.

Applications
  • Metal building insulation jackets

  • Warehouse and factory wall systems

  • Supermarket and commercial building insulation

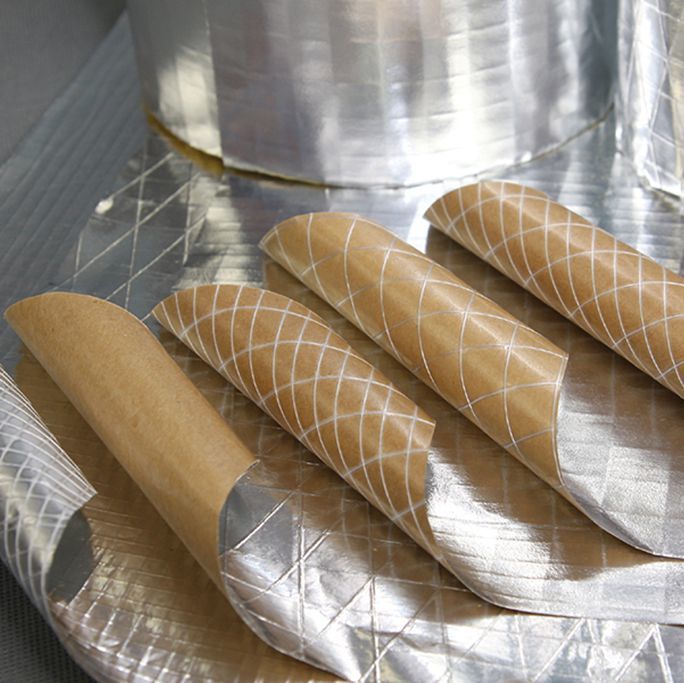

FSK Facing - The Ultimate Vapor Barrier for Metal Building Insulation 1

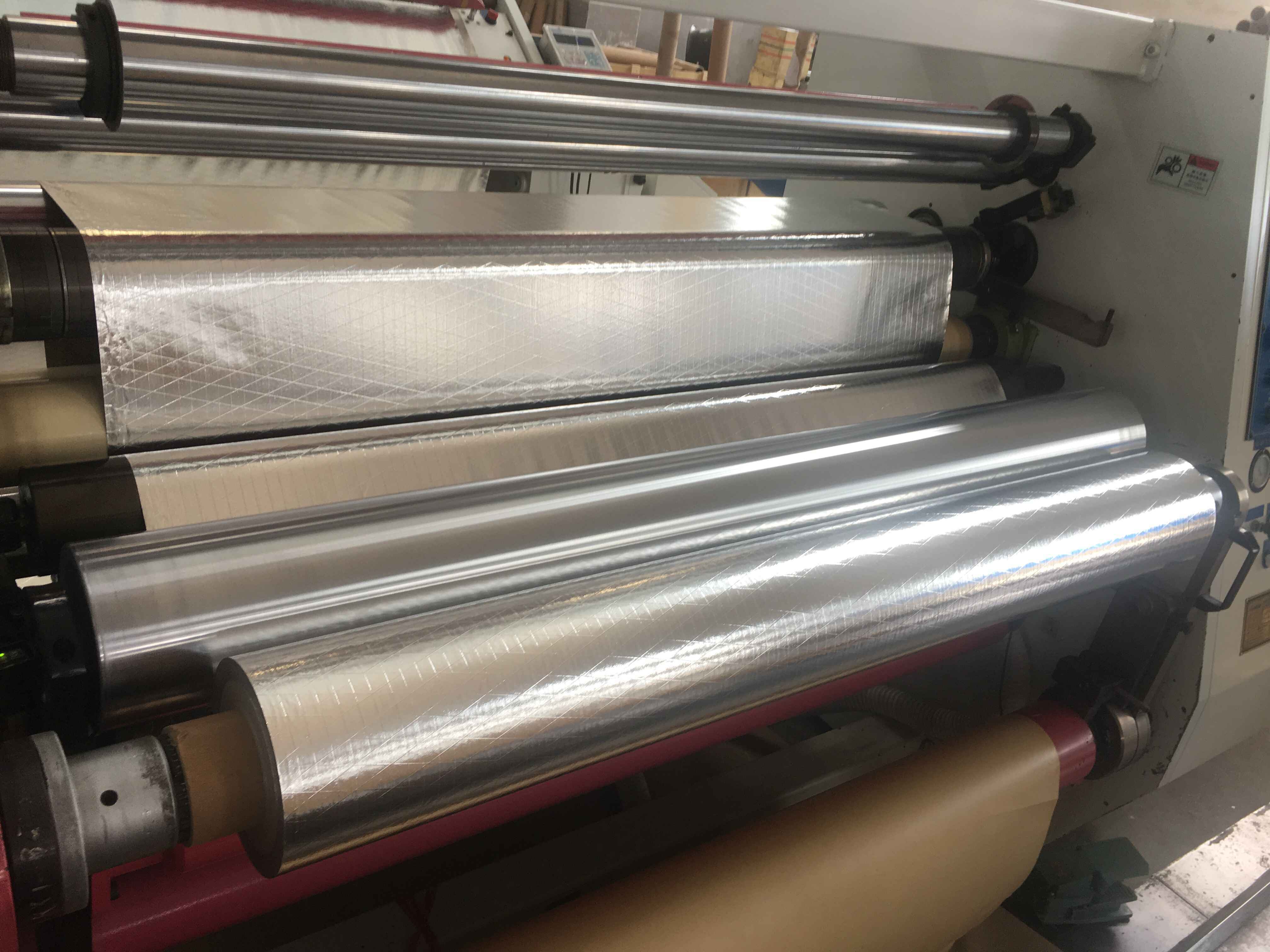

Production Details Of The FSK FACING

FSK Facing - The Ultimate Vapor Barrier for Metal Building Insulation 2

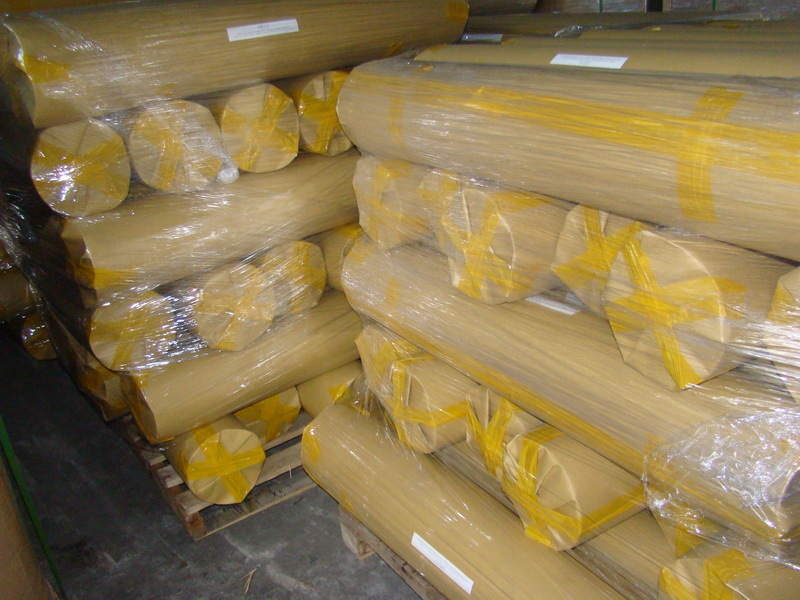

Packing & Shipping

FSK Facing - The Ultimate Vapor Barrier for Metal Building Insulation 3

FAQ

Q: What are the benefits of your FSK facing?

A: Our FSK facing is light,soft,dust free,fire resistant,easy to install. Also the material is eco-friendly, non-toxic and have better heat insulation.

Q: Can I get some samples for testing before placing order?

A: Yes, we can provide you some free samples for your reference if you would like to bear the express cost.

Q: Can you make other sizes and packages for this product?

A: Yes, we can make other sizes as your requirement ,normally our quotation will contain the common package. If you need your own packages, you’d better advise your requirement ahead of time for an accurate quote.
