FSK Facing - The Professional's Choice for Insulation Laminating

Basic Information
Place of Origin: CHINA
Brand Name: FANRYN
Packaging Details: Plastic bag
Delivery Time: 10 work days
Payment Terms: T/T
Detail Information
Density: 40-200 Kg/m3 Environmental Impact: Eco-friendly
Vapor Permeability: 0.1 Ng/Pa.s.m Sound Absorption: 0.9 NRC
Thermal Conductivity: 0.035 W/mK Installation Method: Loose-fill Or Batts/rolls
Chemical Resistance: Resistant To Most Chemicals Fire Rating: Class A1
Dimensional Stability: ≤1% Material: Mineral Wool
Moisture Resistance: Non-hygroscopic Temperature Resistance: Up To 650°C
Water Absorption: ≤1% Compressive Strength: ≥40 KPa
Highlight:

FSK facing insulation laminate

,

professional FSK facing material

,

FSK facing for insulation lamination


Product Description

Product Introduction Of the FSK FACING

As an ideal laminating material, PSK Facing is engineered to be bonded with glass wool, rock wool, and mineral wool. It transforms standard insulation batts into complete, high-performance systems by adding a tough, protective jacket that acts as a vapor and radiant barrier.

Product Parameter Of The FSK FACING

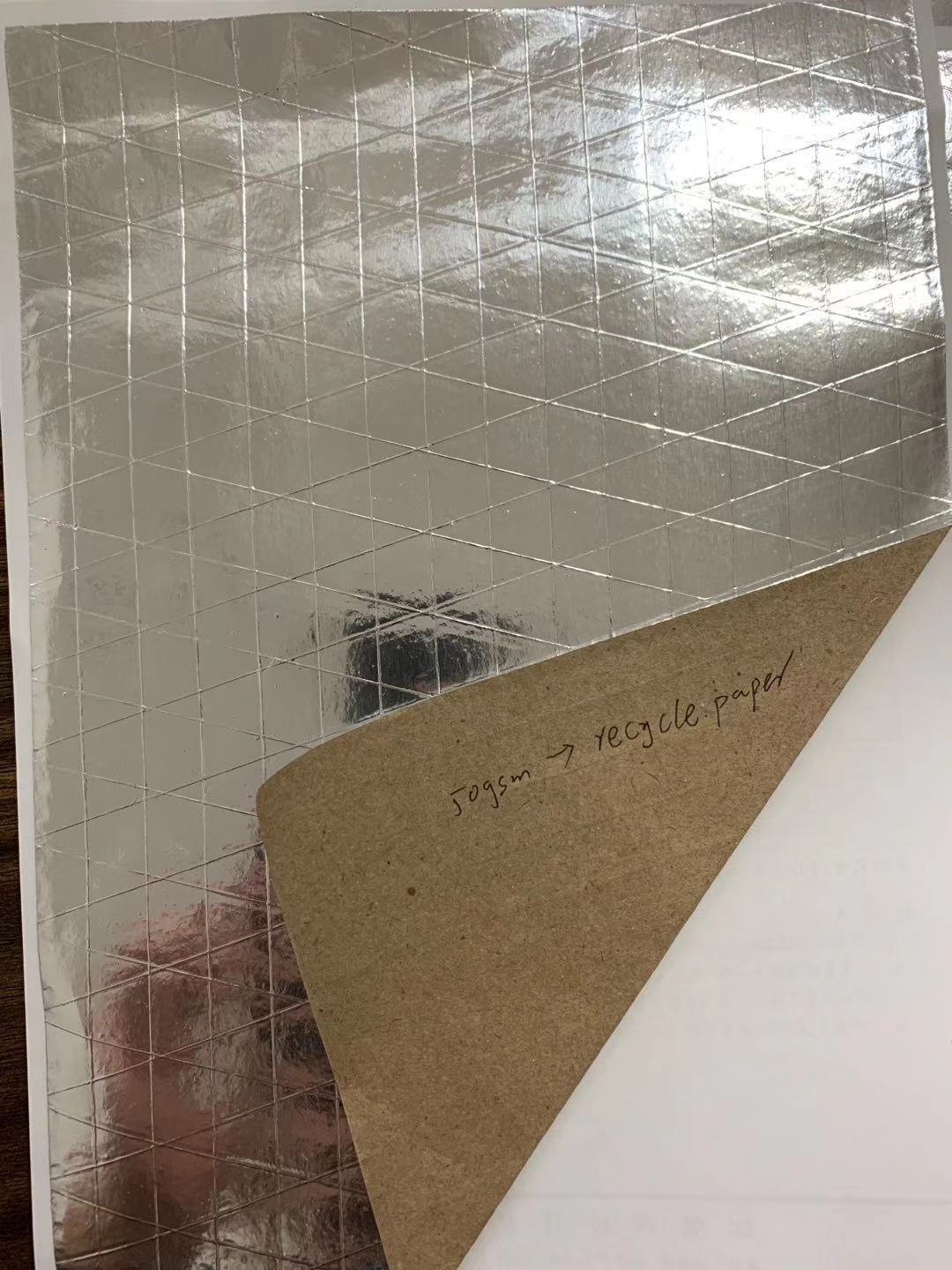

FSK Facing - The Professional's Choice for Insulation Laminating 0

Product Construction
FS - 750 Foil: 7 micron / Polyethylene / 50 gsm Kraft paper
FS - 760 Foil: 7 micron / Polyethylene / 60 gsm Kraft paper
FSK-7160A Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Polyethylene / 60 gsm Kraft paper
FSK- R7160A Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Fire retardant adhesive / 60 gsm Kraft paper
FSK-7160B Foil: 7 micron / 2-ways scrim ( 12.5 x 12.5mm) / Polyethylene / 60 gsm Kraft paper
FSK-R7160B Foil: 7 micron / 2-ways scrim ( 12.5x 12.5mm) / Fire retardant adhesive / 60 gsm Kraft paper
FSK - 7180A Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Polyethylene / 80 gsm Kraft paper
FSK - 7180B Foil: 7 micron / 2-ways scrim ( 12.5 x 12.5mm) / Polyethylene / 80 gsm Kraft paper
FSK -73B Foil: 7 micron / 2-ways scrim ( 6.25x 12.5mm) / Polyethylene / 60 gsm Kraft paper
FSK -R73B Foil: 7 micron / 2-ways scrim ( 6.25 x 12.5mm) / Fire retardant adhesive / 60 gsm Kraft paper
TYPICAL PHYSICAL PROPERTIES
Product Basic weight (g/m²) Tensile MD (n/25mm) Tensile XD (n/25mm) Bursting Strength(n) WVTR (ng/N.s) Reflectivity of Foil Surface Temperature Resistance (℃) Fire Rating
FS - 750 80 95 50 20 5.75 95% -29~ +66 -----
FS - 760 85 105 50 20 5.75 95% -29~ +66 -----
FSK - 7160A 96 125 50 30 5.75 95% -29~ +66 -----
FSK - R7160A 98 130 50 30 5.75 95% -29~ +66 Class 1
FSK - 7160B 98 132 65 30 5.75 95% -29~ +66 -----
FSK - R7160B 100 136 65 30 5.75 95% -29~ +66 Class 1
FSK - 7180A 115 150 75 40 5.75 95% -29~ +66 -----
FSK - 7180B 95 150 80 40 5.75 95% -29~ +66 -----
Product Feature And Application Of The FSK FACING
  • Perfect for Laminating: Designed specifically to adhere to various insulation cores.

  • Adds Protective Layer: Shields insulation from physical damage and moisture ingress.

  • Improves System Performance: Enhances the overall thermal and acoustic performance of the insulation.

  • Customizable Sizes: Available in multiple widths (1.0m to 1.3m) and roll lengths (100m to 1000m).

Applications

  • Creating pre-fabricated insulation panels

  • Laminating insulation for walls and ceilings

  • Industrial and residential insulation systems

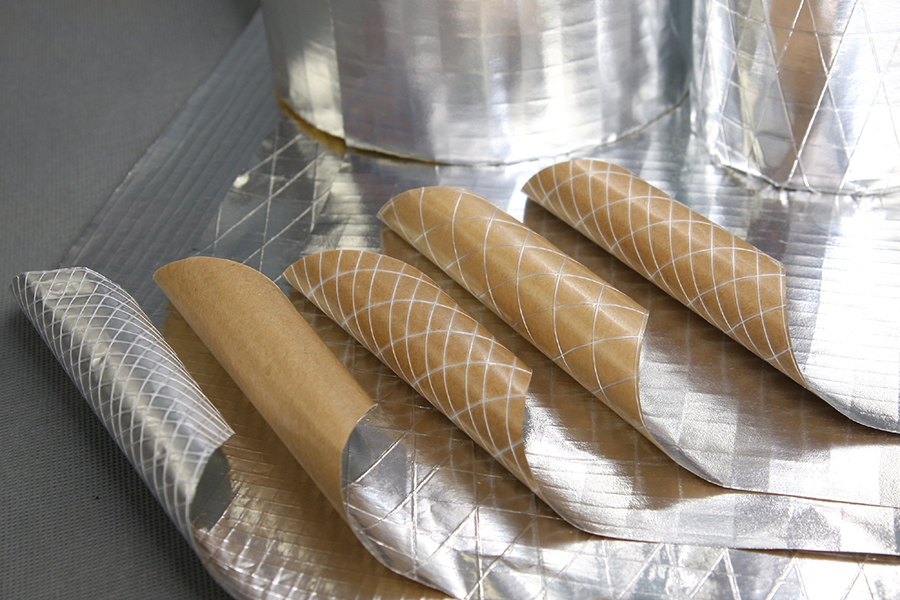

FSK Facing - The Professional's Choice for Insulation Laminating 1

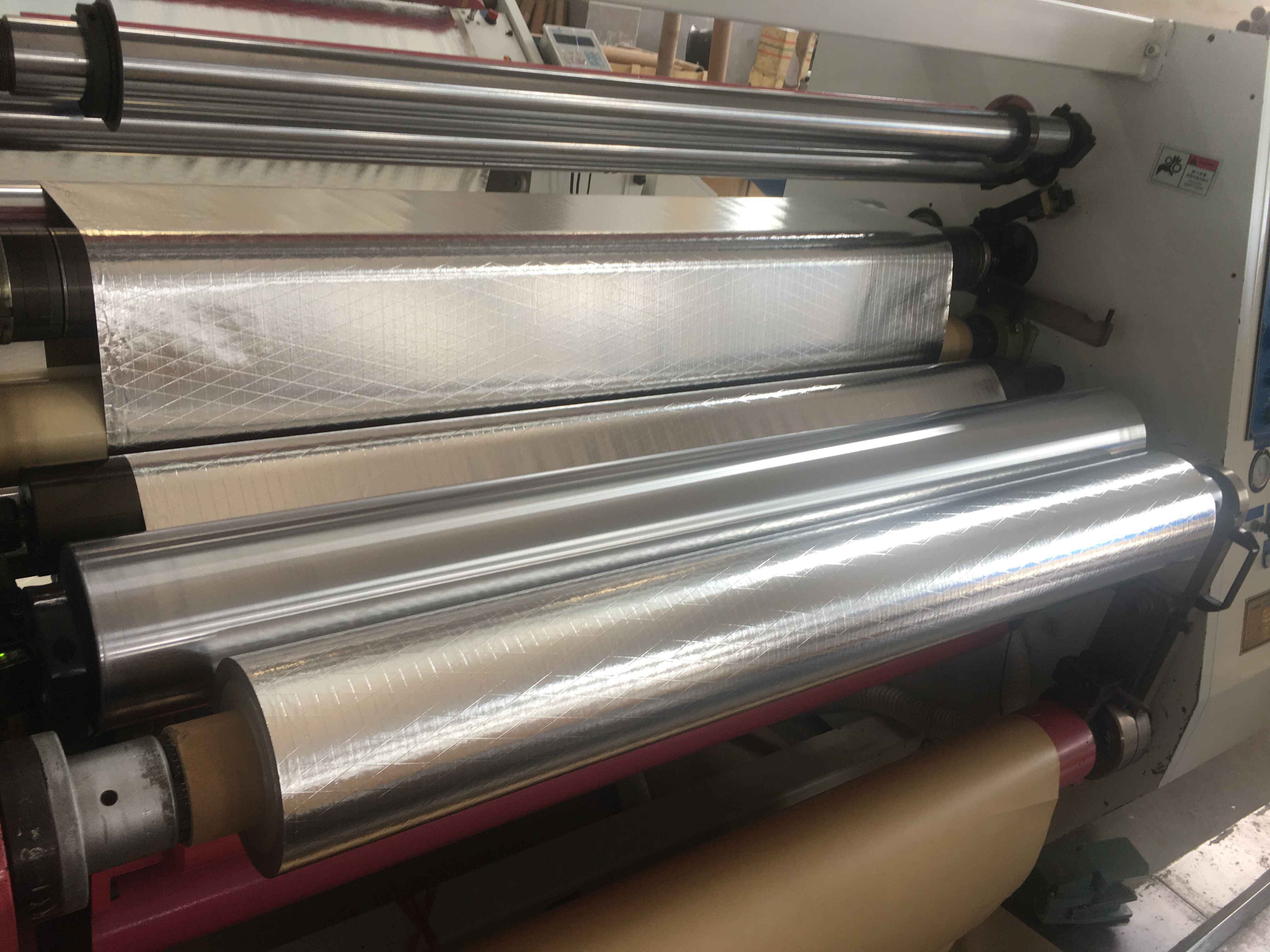

Production Details Of The FSK FACING

FSK Facing - The Professional's Choice for Insulation Laminating 2

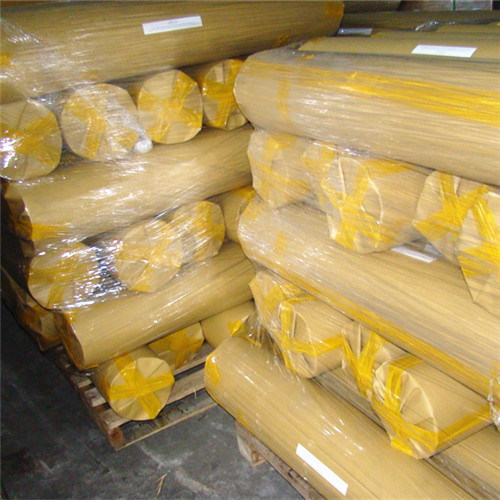

Packing & Shipping

FSK Facing - The Professional's Choice for Insulation Laminating 3

FAQ

Q: What are the benefits of your FSK facing?

A: Our FSK facing is light,soft,dust free,fire resistant,easy to install. Also the material is eco-friendly, non-toxic and have better heat insulation.

Q: Can I get some samples for testing before placing order?

A: Yes, we can provide you some free samples for your reference if you would like to bear the express cost.

Q: Can you make other sizes and packages for this product?

A: Yes, we can make other sizes as your requirement ,normally our quotation will contain the common package. If you need your own packages, you’d better advise your requirement ahead of time for an accurate quote.
