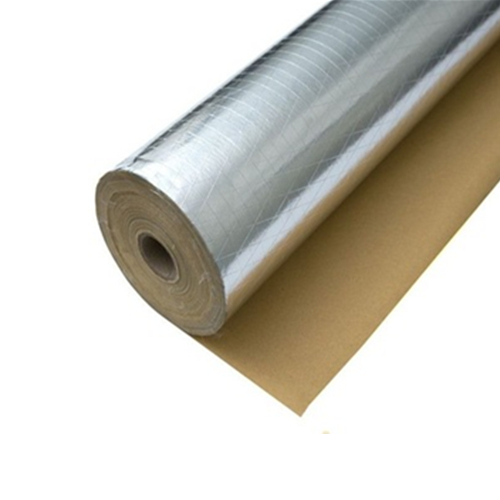

Heavy-Duty FSK Facing - Maximum Durability for Harsh Environments

Basic Information
Place of Origin: Plastic bag
Brand Name: FANRYN
Packaging Details: Plastic bag
Delivery Time: 10 work days
Payment Terms: T/T
Detail Information
Features: High Tensile Strength, Tear Resistance, And Puncture Resistance Material: Foil-Scrim-Kraft
Usage: Insulation And Vapor Barrier For HVAC Ductwork Width: 1.2m
Length: 50m Water Vapor Transmission Rate: 0.02g/m²•24h
Facing Type: Double-sided Fire Rating: Class A/Class 1
Tensile Strength: MD: 150N/25mm, CD: 100N/25mm Thickness: 0.03mm
Temperature Resistance: -30°C To 120°C Elongation: MD: 5%, CD: 10%
Weight: 50gsm
Highlight:

heavy-duty FSK facing insulation

,

FSK facing for harsh environments

,

durable FSK facing material


Product Description

Product Introduction Of the FSK FACING

For projects that demand maximum resilience, our heavy-duty FSK Facing (WPSK 453A) delivers. With a stronger kraft paper backing (38gsm) and superior bursting strength, it is built to perform in the most challenging industrial and logistical settings.

Product Parameter Of The FSK FACING

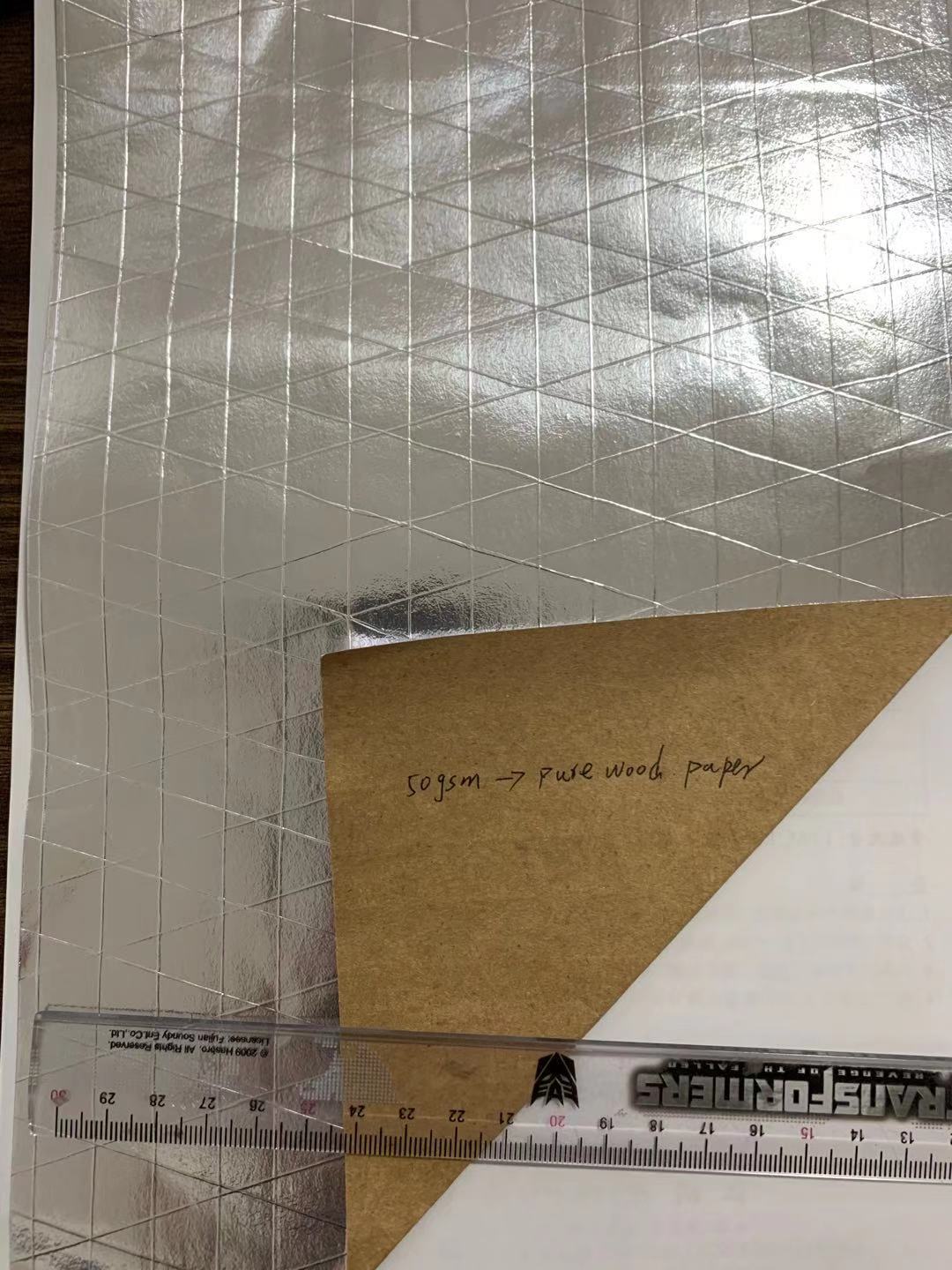

Heavy-Duty FSK Facing - Maximum Durability for Harsh Environments 0

Product Construction
FS - 750 Foil: 7 micron / Polyethylene / 50 gsm Kraft paper
FS - 760 Foil: 7 micron / Polyethylene / 60 gsm Kraft paper
FSK-7160A Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Polyethylene / 60 gsm Kraft paper
FSK- R7160A Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Fire retardant adhesive / 60 gsm Kraft paper
FSK-7160B Foil: 7 micron / 2-ways scrim ( 12.5 x 12.5mm) / Polyethylene / 60 gsm Kraft paper
FSK-R7160B Foil: 7 micron / 2-ways scrim ( 12.5x 12.5mm) / Fire retardant adhesive / 60 gsm Kraft paper
FSK - 7180A Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Polyethylene / 80 gsm Kraft paper
FSK - 7180B Foil: 7 micron / 2-ways scrim ( 12.5 x 12.5mm) / Polyethylene / 80 gsm Kraft paper
FSK -73B Foil: 7 micron / 2-ways scrim ( 6.25x 12.5mm) / Polyethylene / 60 gsm Kraft paper
FSK -R73B Foil: 7 micron / 2-ways scrim ( 6.25 x 12.5mm) / Fire retardant adhesive / 60 gsm Kraft paper
TYPICAL PHYSICAL PROPERTIES
Product Basic weight (g/m²) Tensile MD (n/25mm) Tensile XD (n/25mm) Bursting Strength(n) WVTR (ng/N.s) Reflectivity of Foil Surface Temperature Resistance (℃) Fire Rating
FS - 750 80 95 50 20 5.75 95% -29~ +66 -----
FS - 760 85 105 50 20 5.75 95% -29~ +66 -----
FSK - 7160A 96 125 50 30 5.75 95% -29~ +66 -----
FSK - R7160A 98 130 50 30 5.75 95% -29~ +66 Class 1
FSK - 7160B 98 132 65 30 5.75 95% -29~ +66 -----
FSK - R7160B 100 136 65 30 5.75 95% -29~ +66 Class 1
FSK - 7180A 115 150 75 40 5.75 95% -29~ +66 -----
FSK - 7180B 95 150 80 40 5.75 95% -29~ +66 -----
Product Feature And Application Of The FSK FACING
  • Exceptional Durability: Highest tensile and bursting strength in the PSK line.

  • Robust Moisture Barrier: Effectively blocks water vapor in chemically hostile environments.

  • Long Service Life: Engineered to resist tearing and punctures, reducing maintenance needs.

  • Wide Temperature Range: Suitable for applications from -20°C to +66°C.

Applications

  • Industrial facility insulation

  • Insulation for chemically hostile environments

  • High-traffic areas requiring robust protection

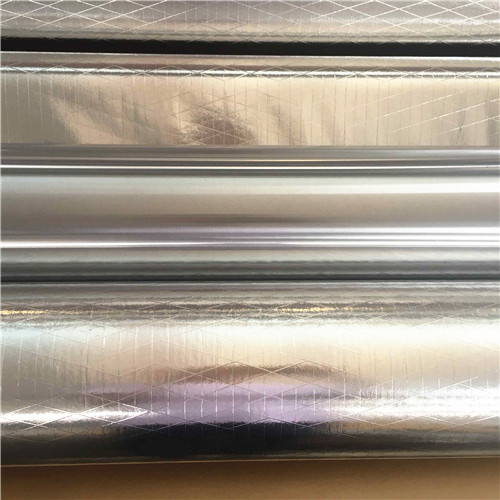

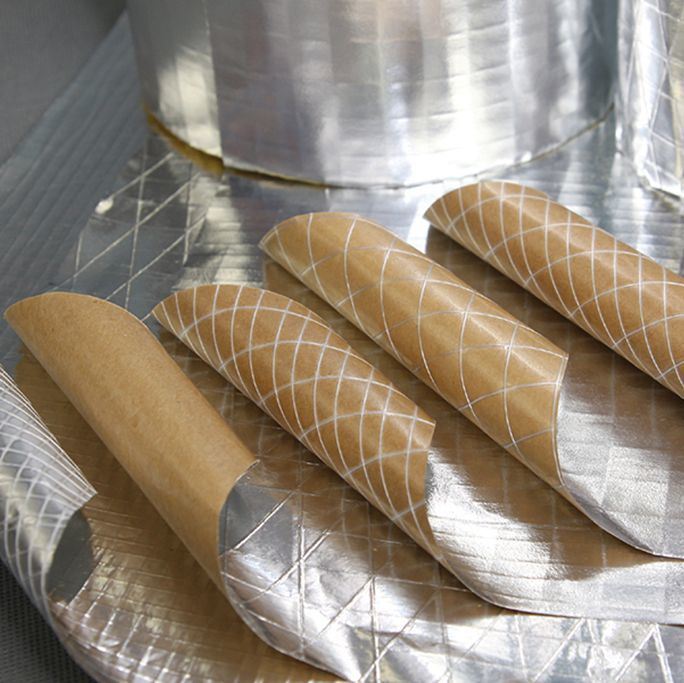

Heavy-Duty FSK Facing - Maximum Durability for Harsh Environments 1

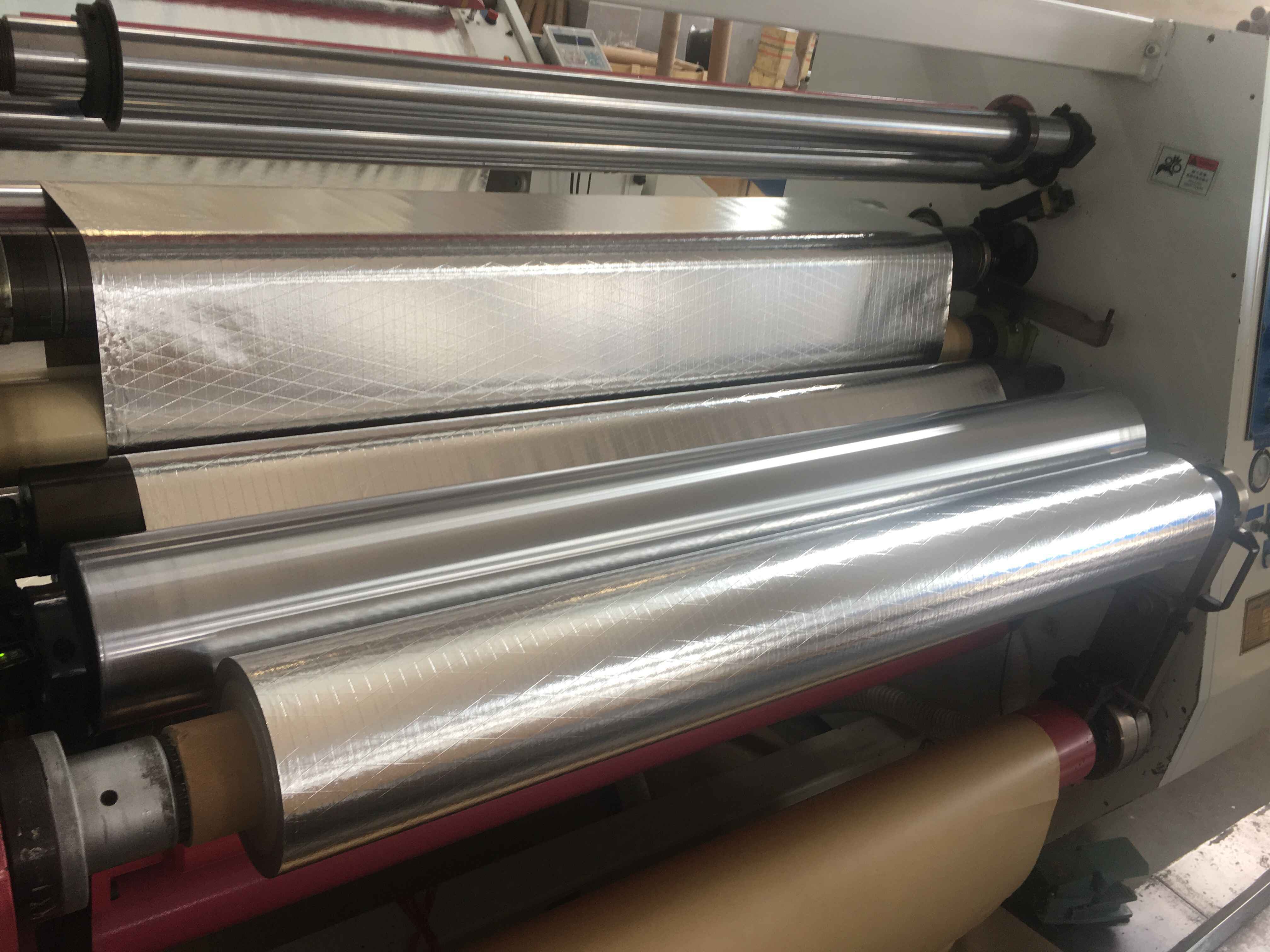

Production Details Of The FSK FACING

Heavy-Duty FSK Facing - Maximum Durability for Harsh Environments 2

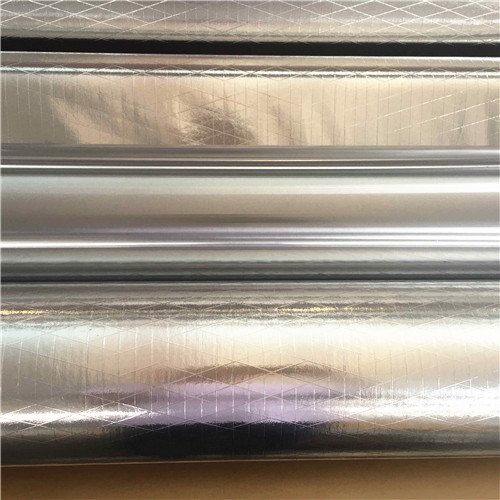

Packing & Shipping

Heavy-Duty FSK Facing - Maximum Durability for Harsh Environments 3

FAQ

Q: What are the benefits of your FSK facing?

A: Our FSK facing is light,soft,dust free,fire resistant,easy to install. Also the material is eco-friendly, non-toxic and have better heat insulation.

Q: Can I get some samples for testing before placing order?

A: Yes, we can provide you some free samples for your reference if you would like to bear the express cost.

Q: Can you make other sizes and packages for this product?

A: Yes, we can make other sizes as your requirement ,normally our quotation will contain the common package. If you need your own packages, you’d better advise your requirement ahead of time for an accurate quote.
