Detail Information

Application:	Roof, Wall, And Floor Insulation	Insulation Type:	Thermal Insulation
Material:	Mineral Fibers	Environmental Impact:	Eco-friendly
Density:	10-100 Kg/m3	Chemical Resistance:	Resistant To Most Chemicals
Moisture Resistance:	Water Repellent	Durability:	Long-lasting
Sound Absorption:	High	Thermal Conductivity:	0.035-0.045 W/mK
Fire Resistance:	Non-combustible	Product Type:	Mineral Wool
Installation Method:	Loose-fill, Batts, Or Boards	Certifications:	ASTM, UL, CE, Etc.
Temperature Range:	-200°C To 650°C
Highlight:	fire-rated FSK facing insulation , FSK facing for duct insulation , fire-rated pipe insulation facing

Product Description

Product Introduction Of the FSK FACING

Meet fire safety standards without compromising performance. Our WPSK-4525A PSK Facing features a fire-retardant adhesive and carries a Class 1 Fire Rating, making it the safe choice for wrapping air conditioning ducts and heating pipelines in commercial and residential buildings.

Product Parameter Of The FSK FACING

Product	Construction
FS - 750	Foil: 7 micron / Polyethylene / 50 gsm Kraft paper
FS - 760	Foil: 7 micron / Polyethylene / 60 gsm Kraft paper
FSK-7160A	Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Polyethylene / 60 gsm Kraft paper
FSK- R7160A	Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Fire retardant adhesive / 60 gsm Kraft paper
FSK-7160B	Foil: 7 micron / 2-ways scrim ( 12.5 x 12.5mm) / Polyethylene / 60 gsm Kraft paper
FSK-R7160B	Foil: 7 micron / 2-ways scrim ( 12.5x 12.5mm) / Fire retardant adhesive / 60 gsm Kraft paper
FSK - 7180A	Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Polyethylene / 80 gsm Kraft paper
FSK - 7180B	Foil: 7 micron / 2-ways scrim ( 12.5 x 12.5mm) / Polyethylene / 80 gsm Kraft paper
FSK -73B	Foil: 7 micron / 2-ways scrim ( 6.25x 12.5mm) / Polyethylene / 60 gsm Kraft paper
FSK -R73B	Foil: 7 micron / 2-ways scrim ( 6.25 x 12.5mm) / Fire retardant adhesive / 60 gsm Kraft paper

TYPICAL PHYSICAL PROPERTIES

Product	Basic weight (g/m²)	Tensile MD (n/25mm)	Tensile XD (n/25mm)	Bursting Strength(n)	WVTR (ng/N.s)	Reflectivity of Foil Surface	Temperature Resistance (℃)	Fire Rating
FS - 750	80	95	50	20	5.75	95%	-29~ +66	-----
FS - 760	85	105	50	20	5.75	95%	-29~ +66	-----
FSK - 7160A	96	125	50	30	5.75	95%	-29~ +66	-----
FSK - R7160A	98	130	50	30	5.75	95%	-29~ +66	Class 1
FSK - 7160B	98	132	65	30	5.75	95%	-29~ +66	-----
FSK - R7160B	100	136	65	30	5.75	95%	-29~ +66	Class 1
FSK - 7180A	115	150	75	40	5.75	95%	-29~ +66	-----
FSK - 7180B	95	150	80	40	5.75	95%	-29~ +66	-----

Product Feature And Application Of The FSK FACING

Class 1 Fire Rating: Provides enhanced fire safety for critical applications.
Reliable Vapor Barrier: Effectively controls moisture to prevent corrosion and mold.
Durable Construction: Reinforced with a 3-ways scrim for high tensile strength.
Flexible & Easy to Install: Conforms easily to ducts and pipes for a secure seal.

Applications

HVAC duct wrapping
Heating and plumbing pipe insulation
Insulation jacketing in cinemas and offices

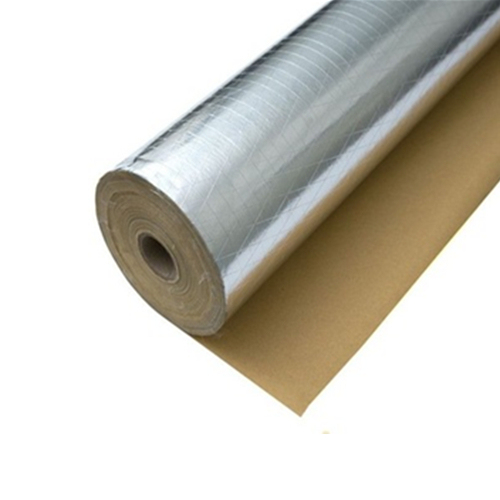

Fire-Rated FSK Facing - Enhanced Safety for Duct & Pipe Insulation 1

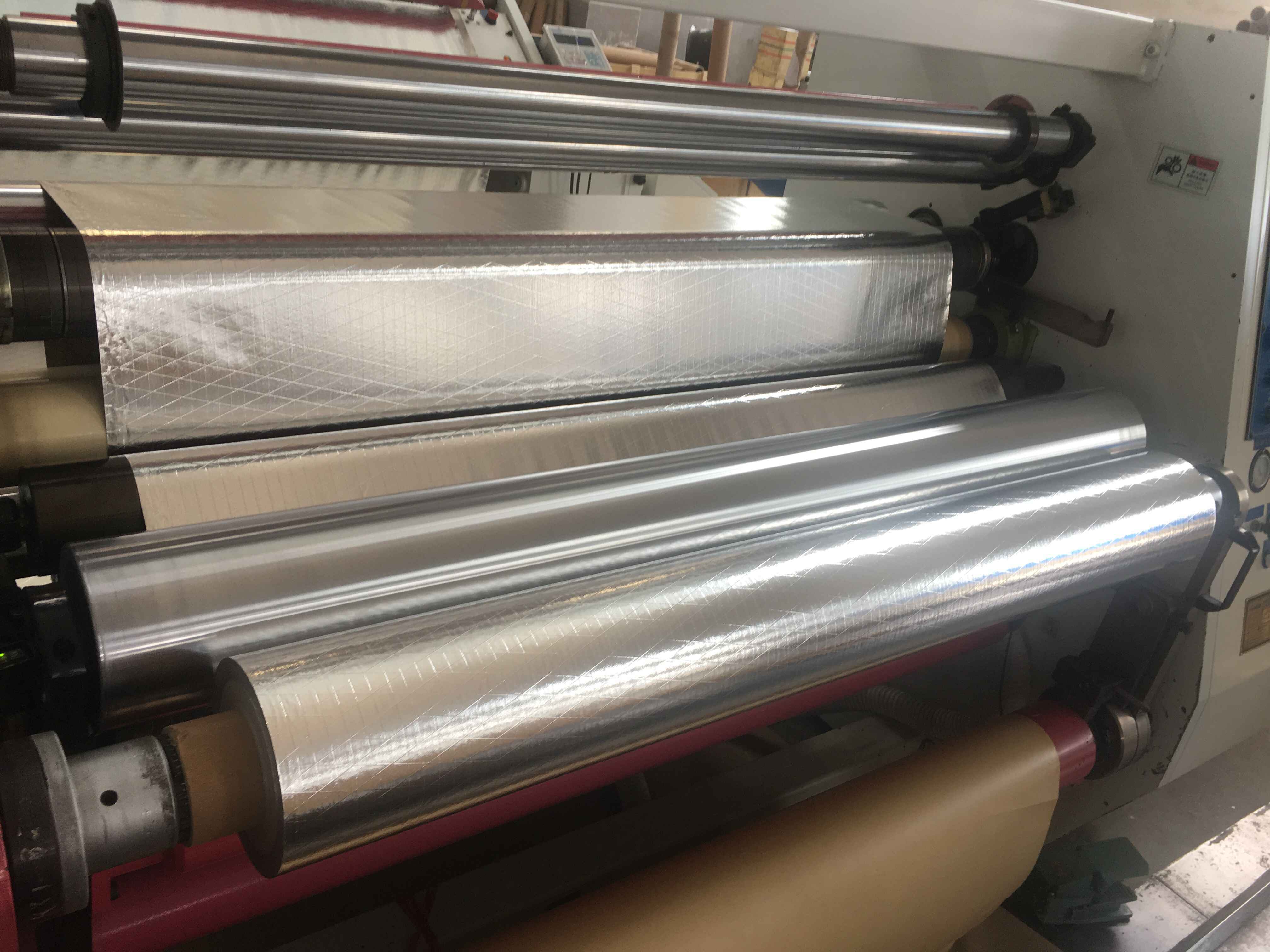

Production Details Of The FSK FACING

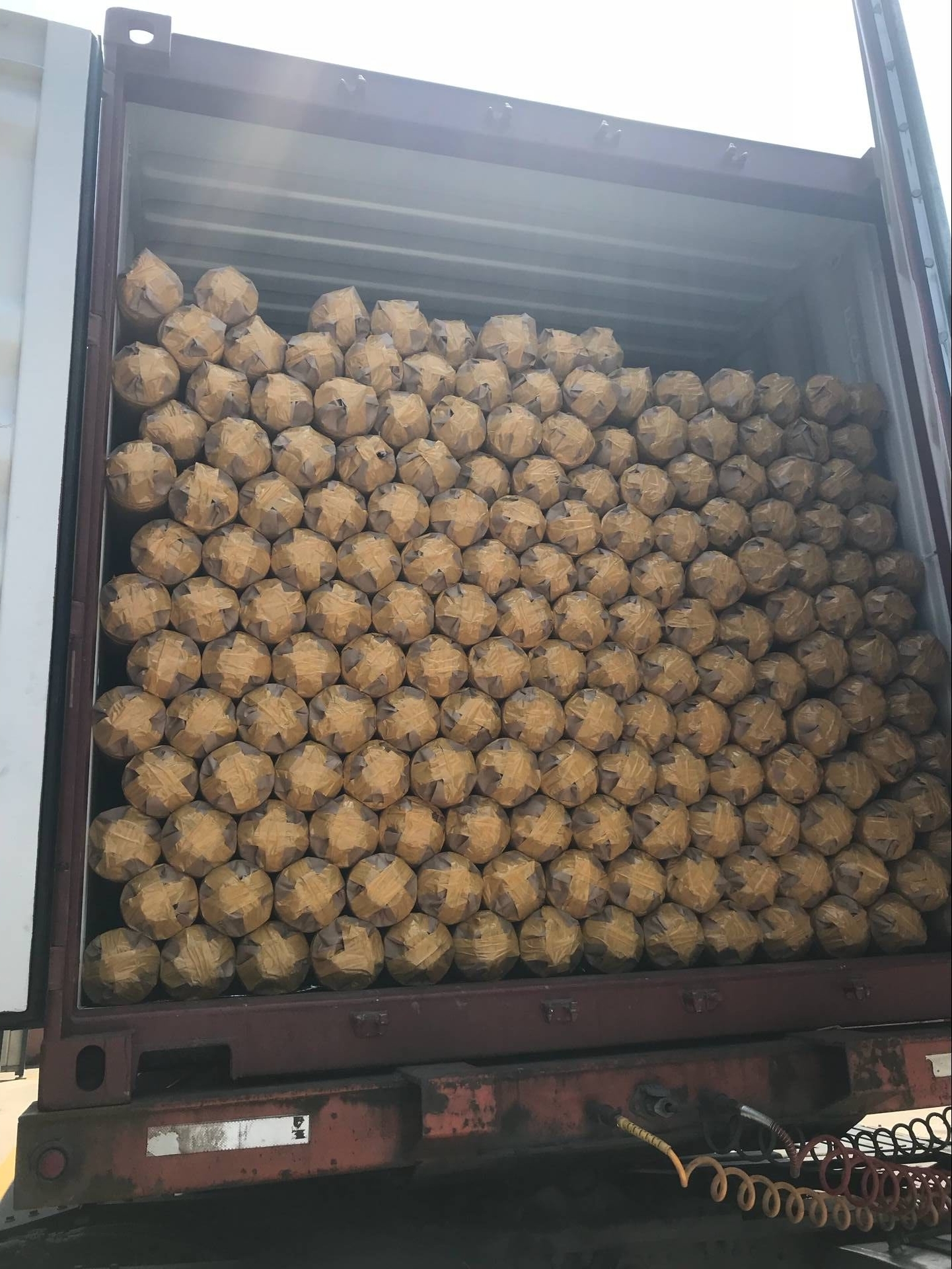

Packing & Shipping

FAQ

Q: What are the benefits of your FSK facing?

A: Our FSK facing is light,soft,dust free,fire resistant,easy to install. Also the material is eco-friendly, non-toxic and have better heat insulation.

Q: Can I get some samples for testing before placing order?

A: Yes, we can provide you some free samples for your reference if you would like to bear the express cost.

Q: Can you make other sizes and packages for this product?

A: Yes, we can make other sizes as your requirement ,normally our quotation will contain the common package. If you need your own packages, you’d better advise your requirement ahead of time for an accurate quote.

Tag:

Place of Origin:	CHINA
Brand Name:	FANRYN

Packaging Details:	Plastic bag
Delivery Time:	10 work days
Payment Terms:	T/T
